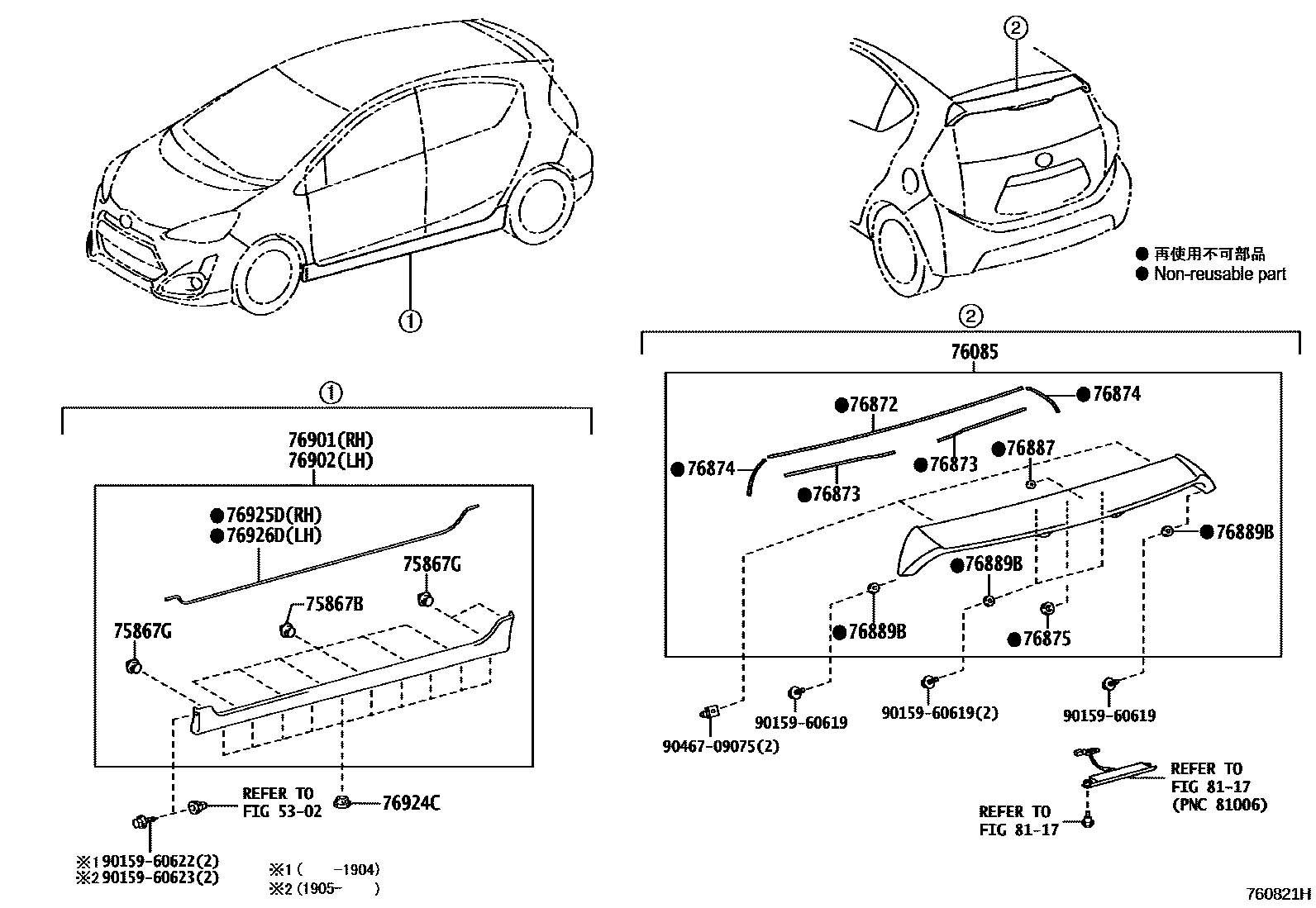

MUDGUARD & SPOILER
5302
75867BCLIP, ROCKER PANEL MOULDING
75867GCLIP, ROCKER PANEL MOULDING NO.2
76085SPOILER SUB-ASSY, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76887SEAL, REAR SPOILER
76901MUDGUARD SUB-ASSY, SIDE, RH
main76901-52180
76902MUDGUARD SUB-ASSY, SIDE, LH
main76902-52200
76924CRETAINER, SIDE MUDGUARD, NO.2
76925DPROTECTOR, SIDE MUDGUARD, RH
76926DPROTECTOR, SIDE MUDGUARD, LH
8117
9015960619
main90159-60619
9015960622
main90159-60622
9015960623
main90159-60623
9046709075
main90467-09075
20 parts on this diagram · 1 diagram in section
