REAR SEAT & SEAT TRACK

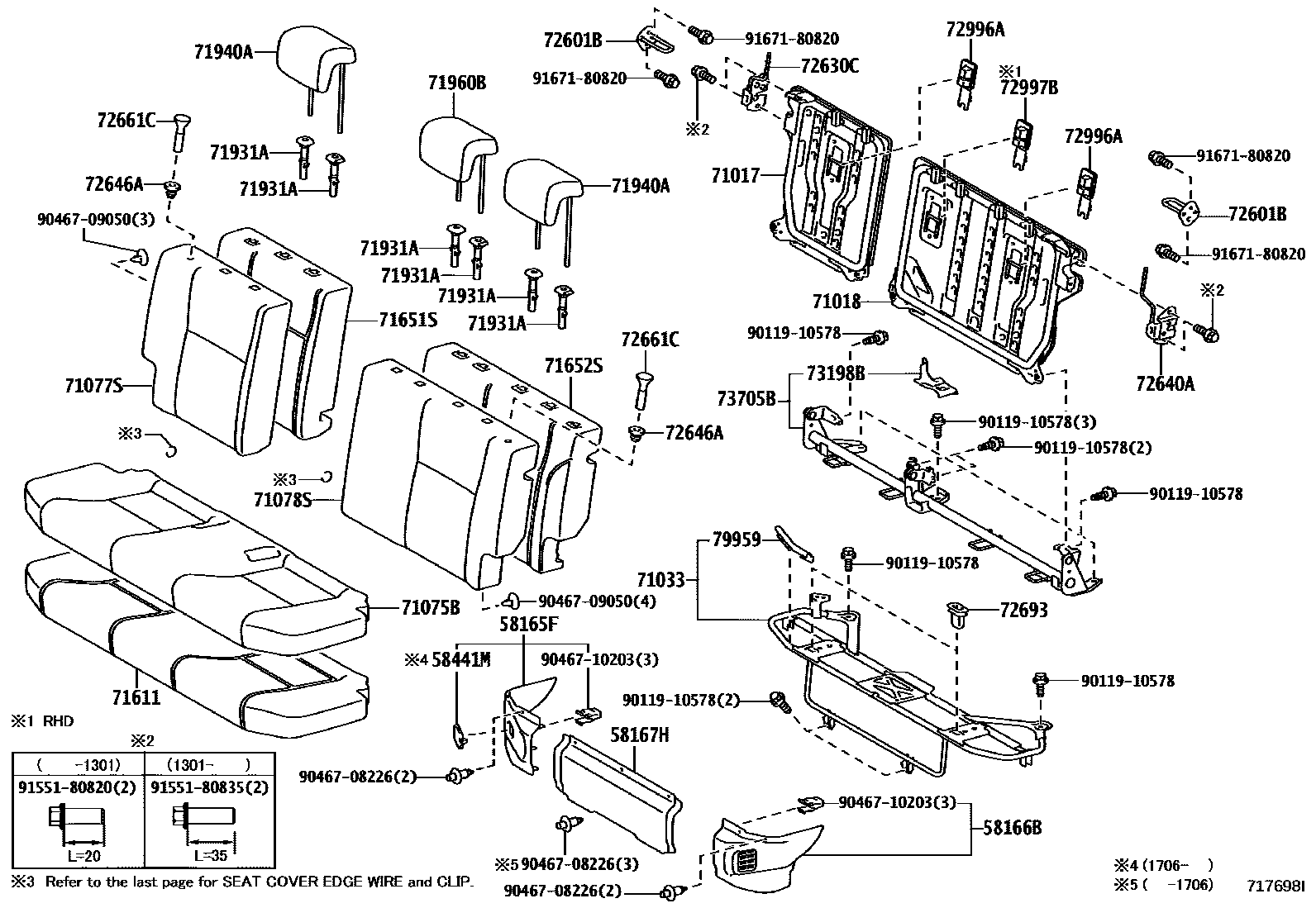

Parts diagram
58165FCOVER, FRONT FLOOR, RH
main58165-52030-C0i201112-201706
BLACK,TRIM2#
main58165-52050-C0i201706-201711
BLACK,TRIM2#,8#
main58165-52051-C0i201711
BLACK,TRIM2#,8#
58166BCOVER, FRONT FLOOR, LH
main58166-52020-C0i201112-201706
BLACK,TRIM2#
main58166-52040-C0i201706-201711
BLACK,TRIM2#,8#
main58166-52041-C0i201711
BLACK,TRIM2#,8#
58167HCOVER, FRONT FLOOR, CENTER
main58167-52010-C0i201112-201706
BLACK,TRIM2#
main58167-52030-C0i201706
BLACK,TRIM2#,8#
58441MCOVER, BATTERY SERVICE HOLE
main58441-52020-C0i201706
BLACK,TRIM2#,8#
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-52620i201112-201301
main71017-52800i201301-201706
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-52500i201112-201301
main71018-52510i201112-201301
main71018-52610i201301-201706
main71018-52620i201301-202001
sub71018-52621
sub72996-52170
main71018-52621i202001
71033LEG SUB-ASSY, REAR SEAT CUSHION
main71033-52020i201112-201706
main71033-52060i201706
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-52J40-B1i201112-201307
LT.BLUE GRAY/DARK GRAY,TRIM2#
sub71075-52J41
main71075-52J41-B1i201308-201412
LT.BLUE GRAY,TRIM2#
sub71075-52J42
main71075-52J60-C2i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71075-52J61
main71075-52J61-C2i201312-201411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71075-52J61
sub71075-52J62
main71075-52J61-C3i201411-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71075-52J61
sub71075-52J62
main71075-52J70-B1i201412-201706
FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE),LT.BLUE GRAY,TRIM2#
sub71075-52J71
main71075-52M70-C0i201412-201706
BLACK,TRIM2#
sub71075-52M71
main71075-52Q90-B0i201706-202008
DARK GRAY,TRIM2#,8#
sub71075-52Q91
main71075-52Q90-B1i202008
DARK GRAY,TRIM8#
sub71075-52Q91
main71075-52R10-C0i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71075-52R11
main71075-52R10-C2i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71075-52R11
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-52K40-C4i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52K41
main71077-52K41-C5i201312-201411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52K41
sub71077-52K42
main71077-52K41-C6i201411-201502
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52K41
sub71077-52K42
main71077-52K42-C6i201503-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52K43
main71077-52M20-B0i201112-201307
LT.BLUE GRAY/DARK GRAY,TRIM2#
sub71077-52M21
main71077-52M21-B1i201308-201411
LT.BLUE GRAY,TRIM2#
sub71077-52M22
main71077-52P80-C0i201412-201502
BLACK,TRIM2#
sub71077-52P81
main71077-52P81-C0i201503-201706
BLACK,TRIM2#
sub71077-52P82
main71077-52T60-B1i201706-202008
DARK GRAY,TRIM8#
sub71077-52T61
main71077-52T60-B2i202008
DARK GRAY,TRIM8#
sub71077-52T61
main71077-52U00-C1i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52U01
main71077-52U00-C3i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71077-52U01
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-52G70-B3i201112-201307
LT.BLUE GRAY/DARK SRAY,TRIM2#
sub71078-52G71
main71078-52G71-B4i201308-201411
LT.BLUE GRAY,TRIM2#
sub71078-52G72
main71078-52G90-C4i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52G91
main71078-52G91-C5i201312-201411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52G91
sub71078-52G92
main71078-52G91-C6i201411-201502
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52G91
sub71078-52G92
main71078-52G92-C6i201503-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52G93
main71078-52J00-C4i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52J01
main71078-52J01-C5i201312-201411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52J01
sub71078-52J02
main71078-52J01-C6i201411-201502
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52J01
sub71078-52J02
main71078-52J02-C6i201503-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52J03
main71078-52K40-B0i201112-201307
LT.BLUE GRAY/DARK GRAY,TRIM2#
sub71078-52K41
main71078-52K41-B1i201308-201411
LT.BLUE GRAY,TRIM2#
sub71078-52K42
main71078-52M20-C0i201412-201502
BLACK,TRIM2#
sub71078-52M21
main71078-52M21-C0i201503-201706
BLACK,TRIM2#
sub71078-52M22
main71078-52M30-C0i201412-201502
BLACK,TRIM2#
sub71078-52M31
main71078-52M31-C0i201503-201706
BLACK,TRIM2#
sub71078-52M32
main71078-52P60-B1i201706-202008
DARK GRAY,TRIM8#
sub71078-52P61
main71078-52P60-B2i202008
DARK GRAY,TRIM8#
sub71078-52P61
main71078-52P70-B1i201706-202008
DARK GRAY,TRIM8#
sub71078-52P71
main71078-52P70-B2i202008
DARK GRAY,TRIM8#
sub71078-52P71
main71078-52Q10-C1i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52Q11
main71078-52Q10-C3i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52Q11
main71078-52Q20-C1i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52Q21
main71078-52Q20-C3i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71078-52Q21
71611PAD, REAR SEAT CUSHION
main71503-52460i201112-201706
main71503-52540i201706
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-52730i201112-201511
sub71651-52820
main71651-52820i201511-201706
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-52600i201112-201706
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-21i201710-202009
W(LOCK),BLACK,TRIM8#
sub71930-44020
sub71930-02370
main71930-44020-C0i201112-201706
W(LOCK),BLACK,TRIM2#
sub71930-44020
sub71930-02370
main71930-44020-C0i201706-201710
W(LOCK),BLACK,TRIM2#,8#
sub71930-44020
sub71930-02370
main71930-52030-C4i202009
W(LOCK)&W(BUTTON),BLACK,TRIM8#
sub71930-52030
main71931-42020-C5i202009
W(LOCK)&W/O(BUTTON),BLACK,TRIM8#
sub71931-42020
main71931-47010-C0i201706-201710
W/O(LOCK),BLACK,TRIM2#,8#
sub71931-47010
sub71931-42020
main71931-47010-C0i201112-201706
W/O(LOCK),BLACK,TRIM2#
sub71931-47010
sub71931-42020
main71931-47010-C8i201710-202009
W/O(LOCK),BLACK,TRIM8#
sub71931-47010
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-52500-B1i201112-201706
DK.GRAY,TRIM2#
main71940-52500-B1i201706-202008
DK.GRAY,TRIM2#,8#
main71940-52500-C0i202008
BLACK,TRIM8#
main71940-52D70-C1i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71940-52D71
main71940-52D71-C1i201312-201408
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71940-52D71
main71940-52D71-C2i201408-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71940-52D71
main71940-52D71-C6i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71940-52D71
main71940-52D71-C7i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71940-52D71
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-52620-B1i201112-201706
DK.GRAY,TRIM2#
main71960-52620-B1i201706-202008
DK.GRAY,TRIM2#,8#
main71960-52620-C1i202008
BLACK,TRIM8#
main71960-52660-C1i201112-201311
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71960-52661
main71960-52661-C1i201312-201408
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71960-52661
main71960-52661-C2i201408-201706
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71960-52661
main71960-52661-C6i201706-202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71960-52661
main71960-52661-C7i202008
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
sub71960-52661
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
main72601-52220i201112-201706
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-52141i201112-201301
main72630-52170i201308-201706
main72630-52180i201301-201308
sub72630-52170
main72630-52190i201412-201706
FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE)
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-52131i201112-201301
main72640-52170i201308-201706
main72640-52180i201301-201308
sub72640-52170
main72640-52190i201412-201706
FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE)
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-C0i201112-201301
BLACK,TRIM2#
sub72646-33010
main72646-52050-C0i201301-201706
BLACK,TRIM2#
main72646-52050-C0i201706
BLACK,TRIM2#,8#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-32030-C0i201112-201301
BLACK,TRIM2#
sub72661-32030
main72661-52060-C0i201301-201706
BLACK,TRIM2#
main72661-52060-C0i201706
BLACK,TRIM2#,8#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201112-201706
72996ACOVER, REAR SEATBACK
main72996-12320-C0i202009
BLACK,TRIM2#,8#,LH & RH
sub72996-12320
main72996-12320-C0i201112-201706
BLACK,TRIM2#
sub72996-12320
main72996-12320-C0i201706-202009
BLACK,TRIM2#,8#
sub72996-12320
main72996-12320-C0i202009
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,8#
sub72996-12320
72997BCOVER, REAR SEATBACK
main72996-12320-C0i201112-201706
BLACK,TRIM2#
sub72996-12320
main72996-12320-C0i201706-202001
BLACK,TRIM2#,8#
sub72996-12320
main72996-52170-C0i202001
BLACK,TRIM2#,8#
73198BCOVER, REAR SEAT BRACKET
main73198-52020i201112-201706
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-52190i201112-201706
main73705-52200i201412-201706
FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY
79959COVER, RR SEAT LEG
main79959-52110i201112-201706
main79959-52330i201706
9011910578
main90119-10578
9046708226
main90467-08226
9046709050
main90467-09050
9046710203
main90467-10203
9155180820
main91551-80820
9155180835
main91551-80835
9167180820
main91671-80820

34 parts on this diagram · 3 diagrams in section
