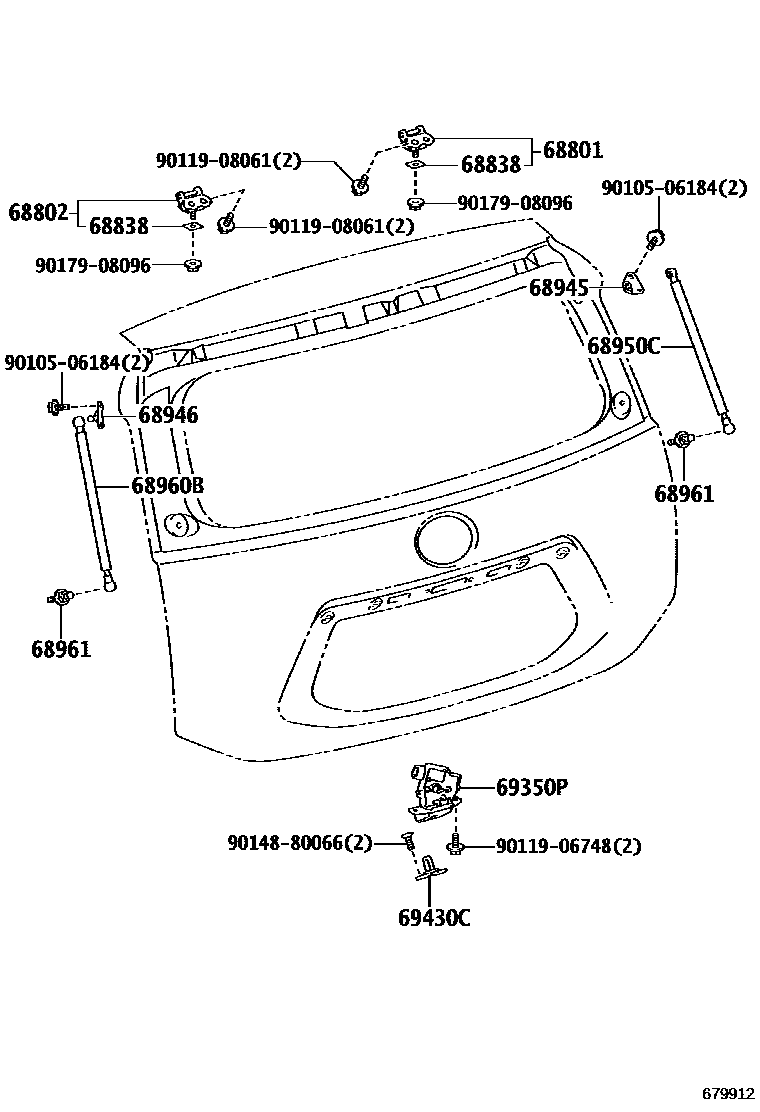

BACK DOOR LOCK & HANDLE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-52210iNHP10201408-202002

sub68801-52211

main68801-52211iNHP10202003

main68801-74020iNHP10201112-201407

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-52210iNHP10201408-202002

sub68801-52211

main68801-52211iNHP10202003

main68801-74020iNHP10201112-201407

68838PAD, BACK DOOR HINGE, NO.1

main68838-52070iNHP10201408-201706

T=0.5

main68838-52080iNHP10201408-201706

T=1.0

main68838-52090iNHP10201408-201706

T=1.5

main68838-74020iNHP10201112-201407

T=0.5

main68838-74030iNHP10201112-201407

T=1.0

main68838-74040iNHP10201112-201407

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52130iNHP10201112-201710

sub68945-52131

main68945-52131iNHP10201711

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52060iNHP10201112-201710

sub68946-52061

main68946-52061iNHP10201711

68950CSTAY ASSY, BACK DOOR, RH

main68950-52400iNHP10201112-201706

68960BSTAY ASSY, BACK DOOR, LH

main68960-52360iNHP10201112-201706

68961BOLT, BACK DOOR STAY

main68961-12050iNHP10201112-201609

main68961-47010iNHP10201610-201706

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52390iNHP10201112-201202

sub69350-52391

main69350-52391iNHP10201203-201706

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iNHP10201112-201706

9010506184

main90105-06184

9011906748

main90119-06748

9011908061

main90119-08061

9014880066

main90148-80066

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
