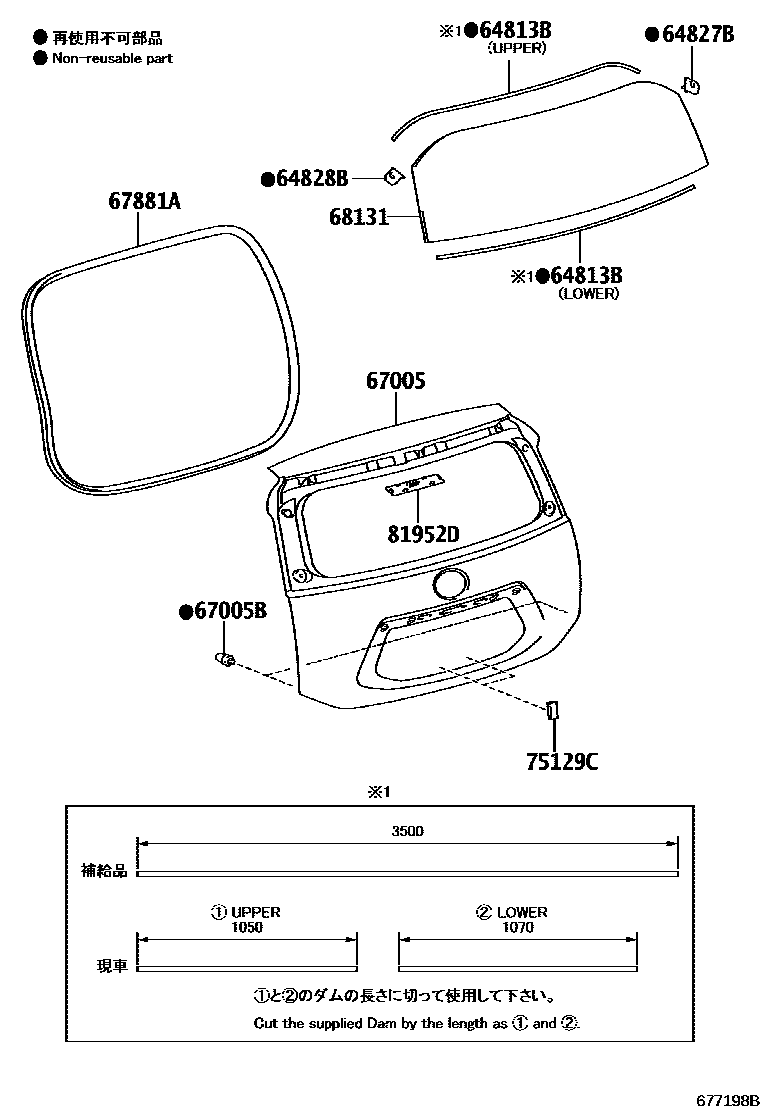

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iNHP10201112-201412

UPPER & LOWER

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52100iNHP10201706

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52100iNHP10201706

67005PANEL SUB-ASSY, BACK DOOR

main67005-52D10iNHP10201706

main67005-52D00iNHP10..ARL201706

NEW ZEALAND SPEC

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146×2iNHP10201412-201706

67881AWEATHERSTRIP, BACK DOOR

main67881-52190iNHP10201706

68131GLASS, BACK DOOR

main68105-52920iNHP10..LHD201710

ECUADOR SPEC

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iNHP10201412-201706

81952DCOVER, REAR LAMP

main81952-52030iNHP10201412-201706

9 parts on this diagram · 2 diagrams in section
