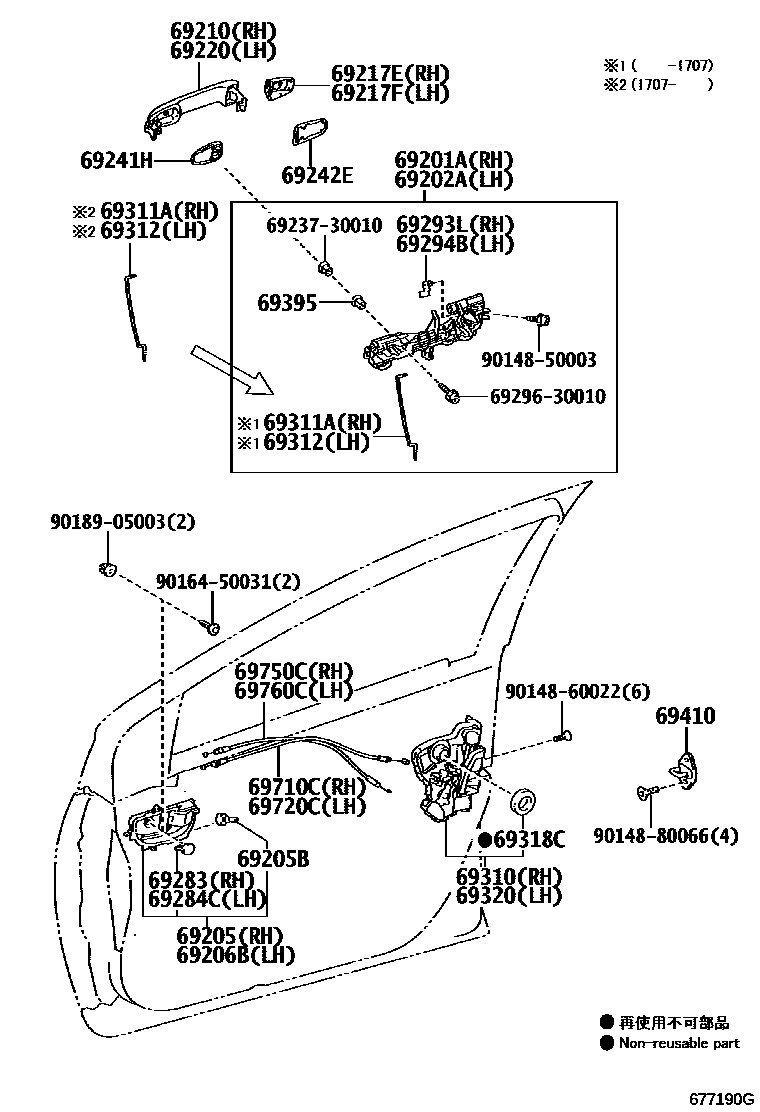

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
DECONTENT PACKAGE(FOR GENERAL COUNTRY),BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
DECONTENT PACKAGE(FOR GENERAL COUNTRY),BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
CEMENT GRAY ME.,1H5
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
CEMENT GRAY ME.,1H5
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
CEMENT GRAY ME.,1H5
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
CEMENT GRAY ME.,1H5
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
LIME WHITE PEARL CS.,082
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK MC.,209
SUPER RED 5,3P0
DK. BROWN M.M.,4U3
MANDARIN ORANGE M.M.,4V7
YELLOW,5A3
FRESH GREEN M.M.,588
THERMO-TECT LIME GREEN,6W7
AQUA M.M.,774
CLEAR EMERALD PEARL CS.,792
BLUE ME.,8T7
ORANGE PEARL CS.,4X3
BEIGE,4U0
COOL SODA ME.,8V7
GRAYISH BLUE,8W2
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,8#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69720CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
33 parts on this diagram · 1 diagram in section
