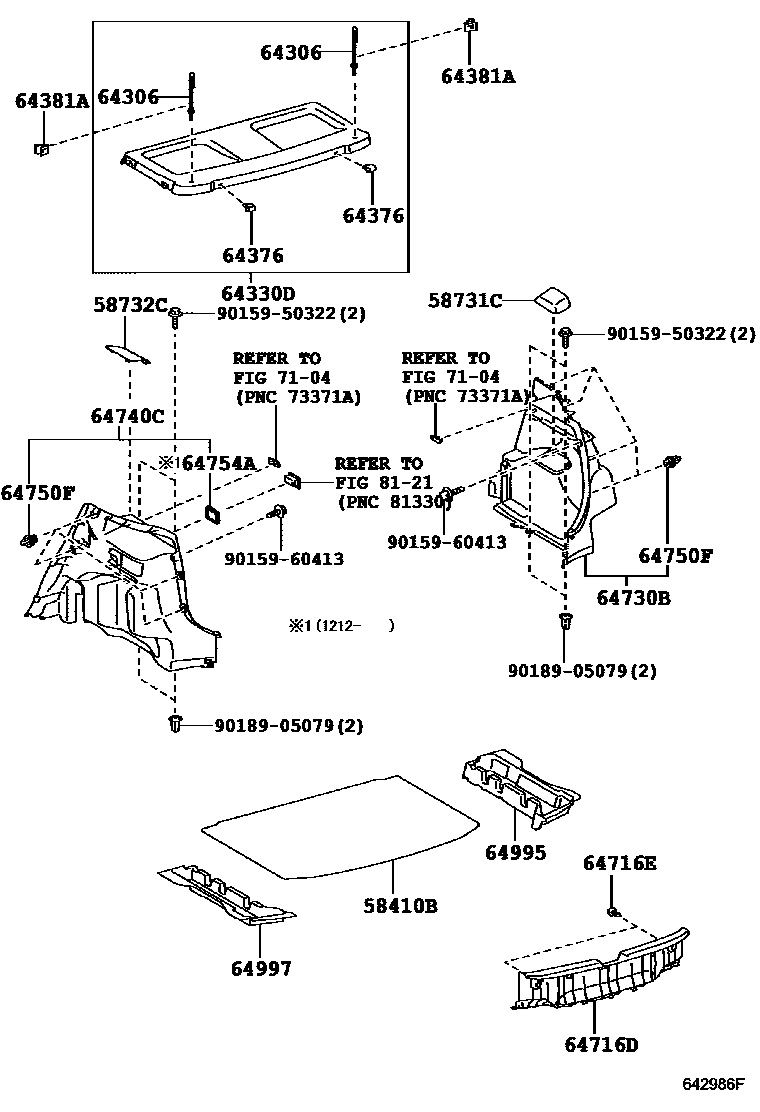

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,8#
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,8#
64376SPACER, PACKAGE TRAY TRIM, NO.2
64381AHANGER, PACKAGE TRAY TRIM
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
BLACK,TRIM2#,8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,8#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64995BOX, DECK FLOOR, RH
BLACK,TRIM2#
BLACK,TRIM2#,8#
64997BOX, DECK FLOOR, LH
BLACK,TRIM2#
BLACK,TRIM2#,8#
7104
8121
9015950322
main90159-50322
9015960413
main90159-60413
9018905079
main90189-05079
20 parts on this diagram · 1 diagram in section
