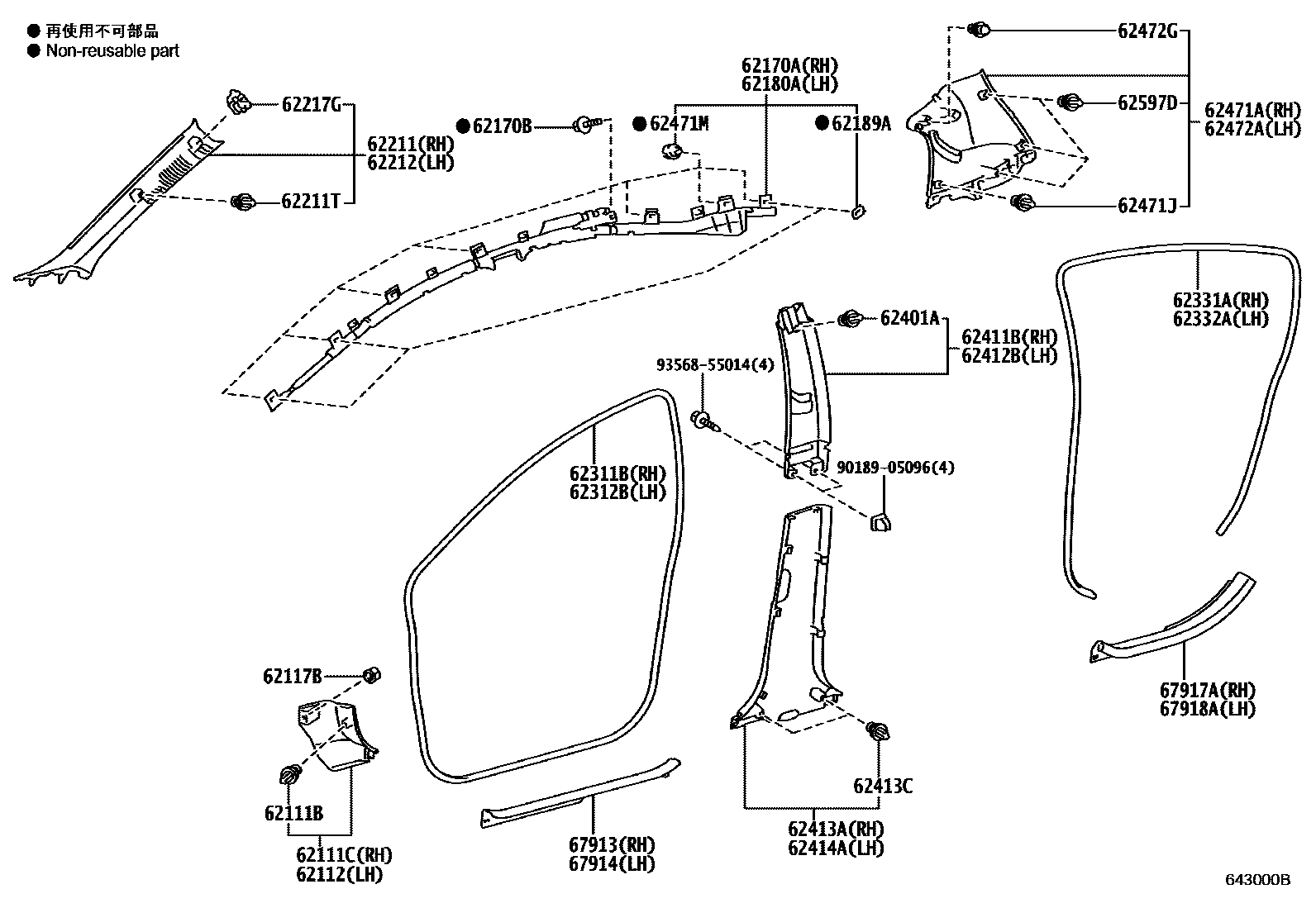

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNHP10¥90201112-201706

62111CBOARD, COWL SIDE TRIM, RH

main62111-52210-C0iNHP10201112-201706

BLACK,TRIM2#

main62111-52210-C0iNHP10201706

BLACK,TRIM2#,8#

62112BOARD, COWL SIDE TRIM, LH

main62112-52350-C0iNHP10..RHD201112-201706

BLACK,TRIM2#

main62112-52350-C0iNHP10..RHD201706

BLACK,TRIM2#,8#

main62112-52360-C0iNHP10..LHD201112-201706

BLACK,TRIM2#

main62112-52360-C0iNHP10..LHD201706

BLACK,TRIM2#,8#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNHP10¥80201112-201706

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52090iNHP10¥30,700201112-201706

62170BBOLT, W/WASHER

main90119-06869iNHP10¥60201112-201703

main91673-80616iNHP10¥60201704-201706

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52090iNHP10¥30,700201112-201706

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-20010iNHP10¥90201112-201706

62211GARNISH, FRONT PILLAR, RH

main62211-52300-B0iNHP10201112-201212

LT.GRAY,TRIM2#

sub62211-52301¥4,180

main62211-52301-B0iNHP10201301-201706

LT.GRAY,TRIM2#

main62211-52390-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iNHP10¥90201112-201706

62212GARNISH, FRONT PILLAR, LH

main62212-52310-B0iNHP10201112-201212

LT.GRAY,TRIM2#

sub62212-52311¥4,180

main62212-52311-B0iNHP10201301-201706

LT.GRAY,TRIM2#

main62212-52390-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iNHP10¥170201706

main62217-52120iNHP10¥140201112-201706

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52210iNHP10¥5,800201112-201706

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52180iNHP10¥5,800201112-201706

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52090iNHP10¥5,200201112-201706

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52110iNHP10¥5,200201112-201706

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iNHP10¥90201112-201706

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52200-B0iNHP10201112-201506

LT.GRAY,TRIM2#

sub62411-52201¥3,480

main62411-52201-B0iNHP10201507-201706

LT.GRAY,TRIM2#

main62411-52201-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52190-B0iNHP10201112-201506

LT.GRAY,TRIM2#

sub62412-52191¥3,480

main62412-52191-B0iNHP10201507-201706

LT.GRAY,TRIM2#

main62412-52191-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52160-C0iNHP10201112-201706

BLACK,TRIM2#

main62413-52160-C0iNHP10201706

BLACK,TRIM2#,8#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iNHP10¥90201112-201706

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52160-C0iNHP10201112-201706

BLACK,TRIM2#

main62414-52160-C0iNHP10201706

BLACK,TRIM2#,8#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52430-B0iNHP10201112-201706

LT.GRAY,TRIM2#

main62471-52430-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNHP10¥90201112-201706

62471MCLIP

main62184-06010iNHP10¥500201112-201706

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52480-B0iNHP10201112-201706

LT.GRAY,TRIM2#

main62472-52480-B0iNHP10201706

LT.GRAY,TRIM2#,8#

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150iNHP10¥170201112-201706

62597DCLIP

main90467-10167iNHP10¥90201112-201706

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52220-C0iNHP10201112-201706

BLACK,TRIM2#

main67913-52220-C0iNHP10201706

BLACK,TRIM2#,8#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52220-C0iNHP10201112-201706

BLACK,TRIM2#

main67914-52220-C0iNHP10201706

BLACK,TRIM2#,8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52210-C0iNHP10201112-201706

BLACK,TRIM2#

main67917-52210-C0iNHP10201706

BLACK,TRIM2#,8#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52220-C0iNHP10201112-201706

BLACK,TRIM2#

main67918-52220-C0iNHP10201706

BLACK,TRIM2#,8#

9018905096

main90189-05096¥80

9356855014

main93568-55014¥70

34 parts on this diagram · 1 diagram in section
