SIDE MEMBER
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61117CGUSSET, SIDE PANEL TO COWL, RH
61131CPILLAR, FRONT BODY, OUTER RH
CROSS PACKAGE
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
LH
RH
61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
CROSS PACKAGE
61621DTROUGH, BACK DOOR OPENING, RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
61824PLATE, NOISE CONTROL, NO.1
62151BPAD, COWL SIDE SILENCER
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
68981ARETAINER, BACK DOOR STAY, RH
9015960498
main90159-60498
9018906006
main90189-06006
9155100820
main91551-00820
9155180610
main91551-80610
91641C0614
main91641-C0614

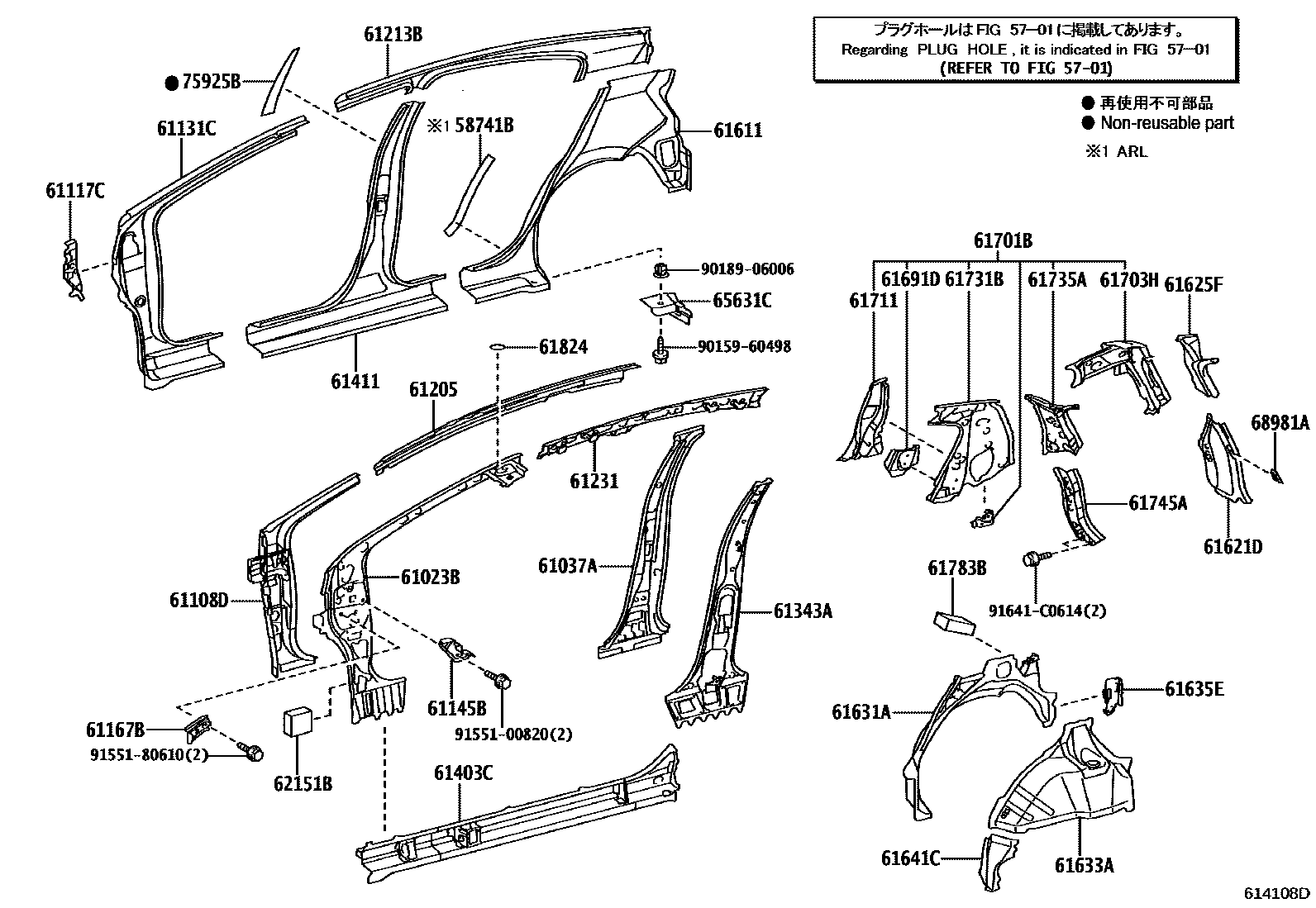

40 parts on this diagram · 2 diagrams in section
