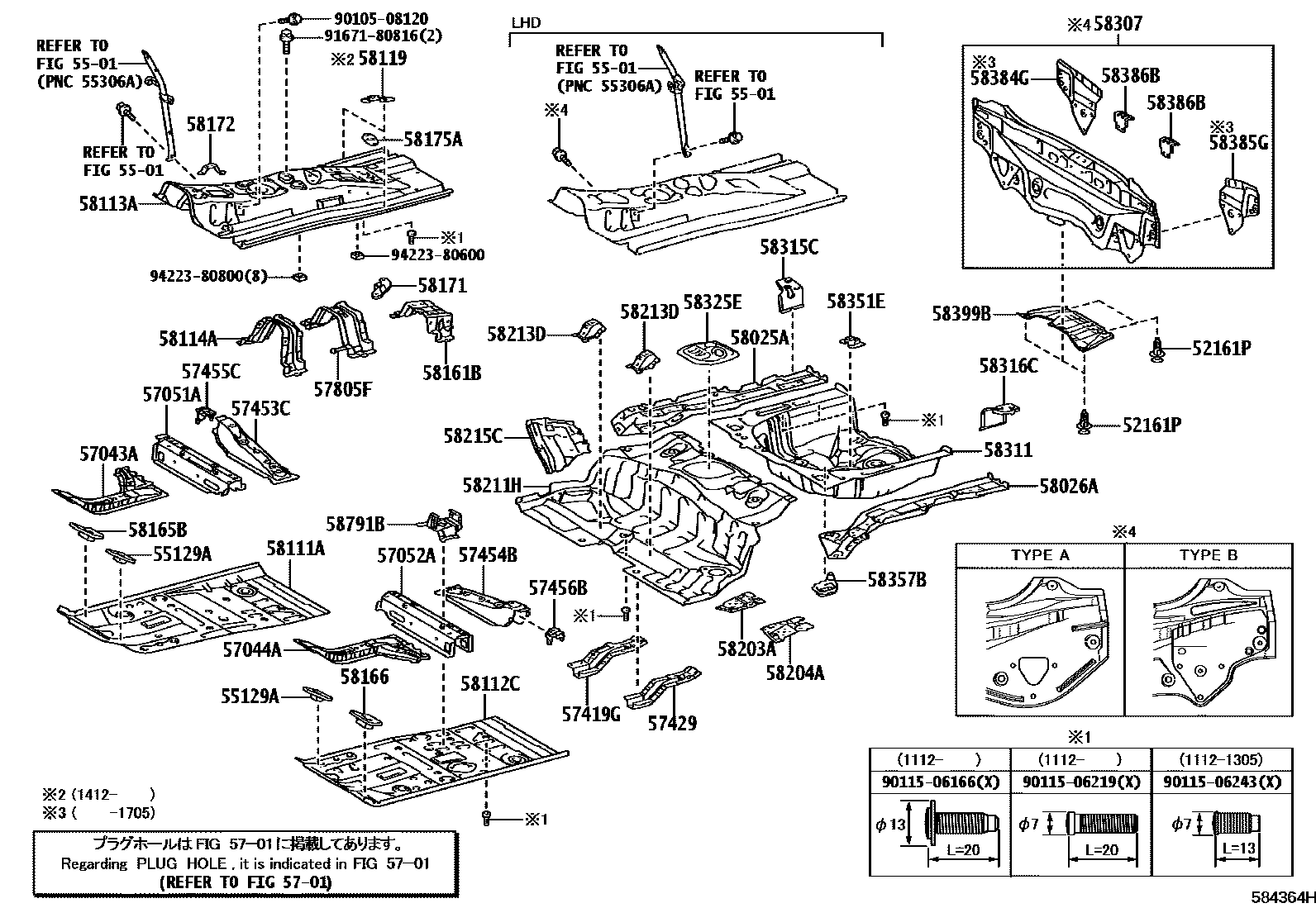

FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
5501
55129ACOVER, FRONT FLOOR HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58119PLATE, FRONT FLOOR SIDE, FRONT
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58307PANEL SUB-ASSY, BODY LOWER BACK
TYPE B:REFER ILLUST.
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58399BCOVER, FLOOR UNDER, NO.2
58791BCARRIER, JACK
9010508120
9011506166
9011506219
9011506243
9167180816
9422380600
9422380800
52 parts on this diagram · 1 diagram in section
