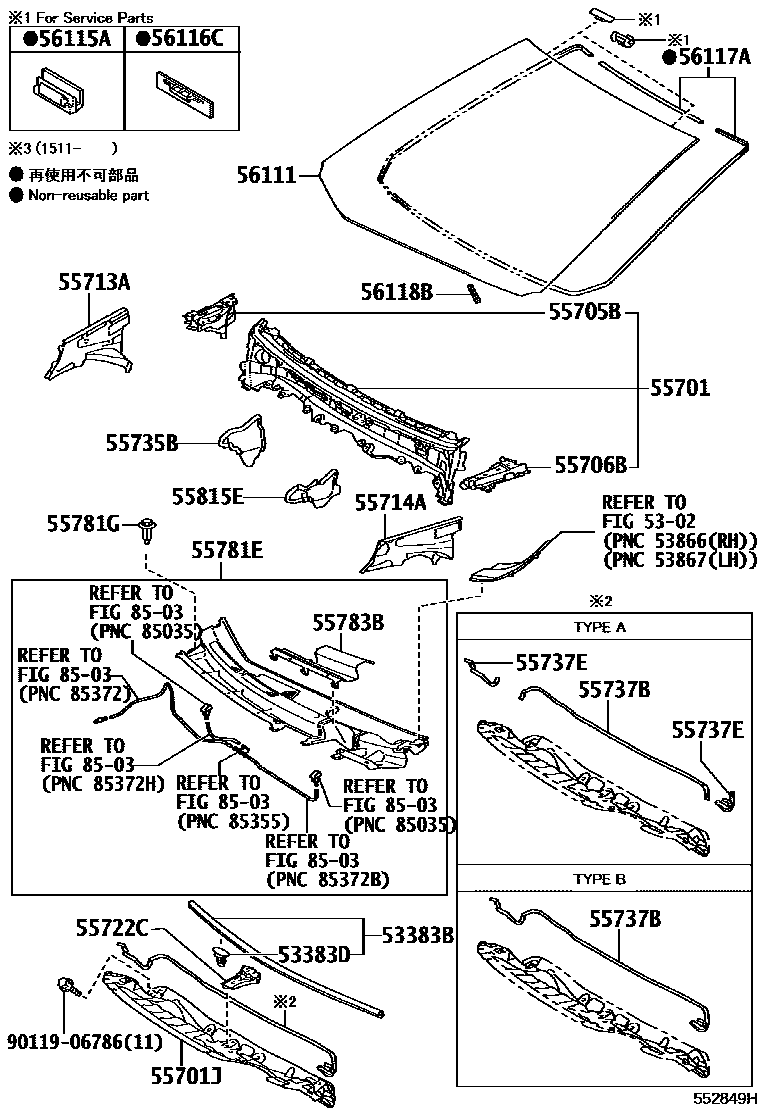

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

5302

53383BSEAL, HOOD TO COWL TOP

main53383-52140iNHP10¥680201112-201706

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNHP10¥100201112-201706

55701PANEL SUB-ASSY, COWL

main55700-52350iNHP10..RHD¥15,800201112-201612

sub55700-52351¥13,100

main55700-52351iNHP10..RHD¥13,100201701-201706

main55700-52370iNHP10..LHD201112-201612

sub55700-52371

main55700-52371iNHP10..LHD201701-201706

main55700-52410iNHP10..RHD¥10,900201706

main55700-52420iNHP10..LHD201706

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52290iNHP10..RHD¥13,100201112-201706

main55701-52310iNHP10..LHD¥13,100201112-201706

main55701-52380iNHP10..RHD¥10,900201706

main55701-52390iNHP10..LHD201706

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52180iNHP10¥2,940201112-201706

main55705-52200iNHP10¥2,440201706

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52180iNHP10¥2,940201112-201706

main55706-52200iNHP10¥2,440201706

55713APANEL, COWL TOP SIDE, RH

main55713-52130iNHP10¥2,710201112-201706

55714APANEL, COWL TOP SIDE, LH

main55714-52130iNHP10¥2,710201112-201706

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52170iNHP10¥1,160201112-201706

55735BSEAL, FRONT AIR SHUTTER

main55735-52110iNHP10¥740201112-201706

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52160iNHP10¥980201112-201706

TYPE A:REFER ILLUST.

main55737-52180iNHP10¥1,090201112-201706

TYPE B:REFER ILLUST.

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52170iNHP10¥280201112-201706

TYPE A:REFER ILLUST.

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52260iNHP10..RHD¥14,600201112-201606

sub55708-52261¥12,100

main55708-52261iNHP10..RHD¥12,100201607-201706

sub55708-52271¥13,400

main55708-52290iNHP10..LHD¥16,100201112-201603

sub55708-52291

main55708-52291iNHP10..LHD201604-201706

main55708-52310iNHP10..RHD¥10,100201706

main55708-52430iNHP10..LHD201706

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-16010iNHP10¥120201112-201706

sub52161-0K040¥120

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52300iNHP10..RHD¥2,400201112-201706

main55783-52310iNHP10..LHD201112-201706

main55783-52330iNHP10..RHD¥2,000201706

main55783-52370iNHP10..LHD201706

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52060iNHP10¥650201112-201706

56111GLASS, WINDSHIELD

main56101-52931iNHP10..RHD¥66,500201112-201706

main56101-52935iNHP10..LHD¥64,600201112-201706

main56101-5C910iNHP10..LHD201710

FOR ECUADOR SPEC

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNHP10¥130201112-201706

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNHP10¥120201112-201706

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNHP10¥1,610201112-201706

*D,L=3202 OR 613

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30100iNHP10¥310201511-201706

L=25

sub56118-72010¥450

8503

9011906786

main90119-06786¥90

24 parts on this diagram · 2 diagrams in section
