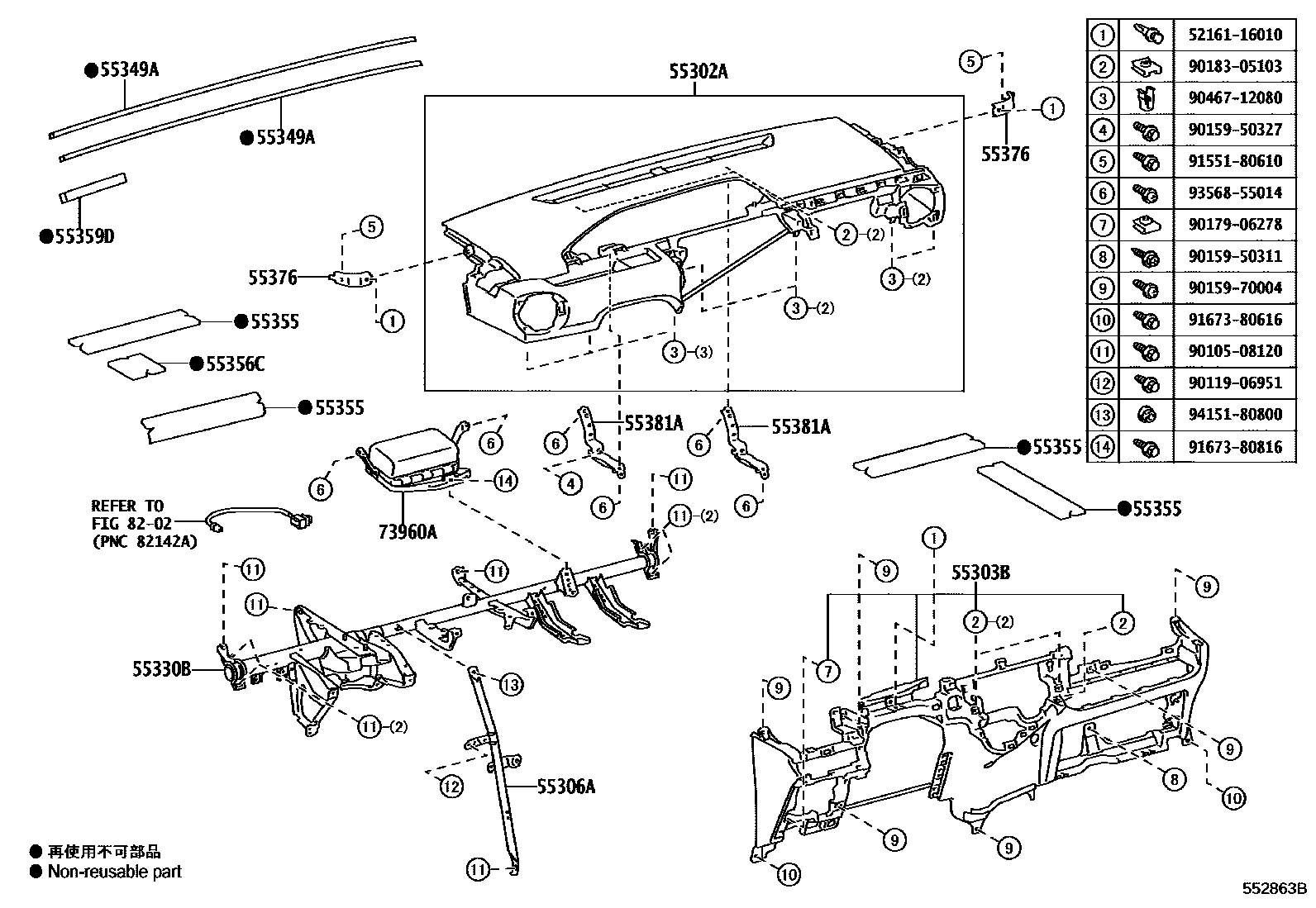

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE 0009 1 0010 1 0011 1DRIVER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1CENTER 0015 1PASSENGER SIDE 0016 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52150-C0iNHP10..LHD201112-201406

BLACK,TRIM2#

sub55302-52903

main55302-52160-C0iNHP10..RHD201112-201406

BLACK,TRIM2#

sub55302-52905

main55302-52904-C0iNHP10..LHD201412-201706

BLACK,TRIM2#

main55302-52906-C0iNHP10..RHD201412-201706

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52260-C0iNHP10..LHD201706

BLACK,TRIM2#,8#

main55303-52280-C0iNHP10..RHD201112-201412

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52260iNHP10..RHD201706-201801

main55306-52270iNHP10..LHD201412-201706

main55306-52410iNHP10..LHD201801

main55306-52420iNHP10..RHD201801

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52660iNHP10..LHD201112-201412

main55330-52680iNHP10..RHD201412-201706

55349ACUSHION, INSTRUMENT PANEL

main55349-52180iNHP10..RHD201301-201412

COWL SIDE

main55349-52240iNHP10..RHD201301-201412

GLASS SIDE

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52200×4iNHP10201112-201412

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52200iNHP10201112-201412

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52150iNHP10201402-201412

main55359-52151iNHP10201311-201402

main55359-52190iNHP10..RHD201112-201301

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110×2iNHP10201112-201412

55381ABRACKET, FINISH PANEL MOUNTING

main55381-52050×2iNHP10201412-201706

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52170iNHP10..LHD201112-201412

main73960-52190iNHP10..RHD201112-201412

8202

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010508120

main90105-08120

9011906951

main90119-06951

9015950311

main90159-50311

9015950327

main90159-50327

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9155180610

main91551-80610

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

26 parts on this diagram · 16 diagrams in section
