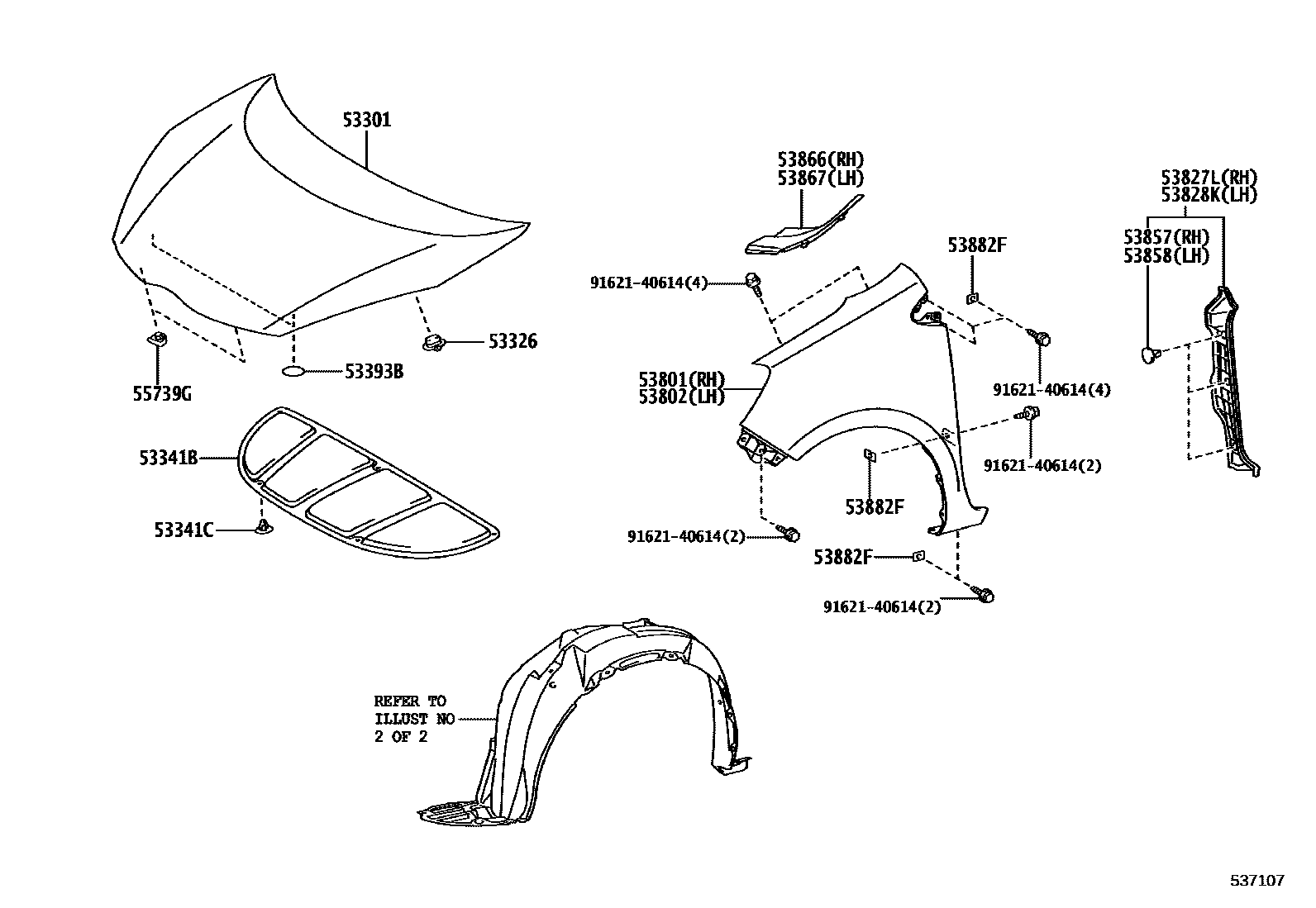

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER 0005 1 0006 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52330iNHP10201112-201706

main53301-52400iNHP10201706

53326CLIP, HOOD PROTECTOR

main53326-52010iNHP10201112-201412

53341BINSULATOR, HOOD

main53341-52190iNHP10201706

main53341-52200iNHP10201112-201706

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNHP10201112-201706

53393BPROTECTOR, HOOD, FRONT

main90950-06124iNHP10201112-201706

53801FENDER SUB-ASSY, FRONT RH

main53811-52310iNHP10201112-201706

main53811-52520iNHP10201706-202007

sub53811-52521

sub75374-52131

main53811-52521iNHP10202007

53802FENDER SUB-ASSY, FRONT LH

main53812-52410iNHP10201112-201706

main53812-52520iNHP10201706-202007

sub53812-52521

sub75374-52141

main53812-52521iNHP10202007

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52160iNHP10201112-201706

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52170iNHP10201112-201706

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNHP10201112-201706

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNHP10201112-201706

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52100iNHP10201112-201706

main53866-52160iNHP10201706

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52150iNHP10201112-201706

main53867-52180iNHP10201706

53882FSEAL, FRONT FENDER

main53882-16030iNHP10201112-201706

55739GSTOPPER, HOOD

main55738-52050iNHP10201112-201706

9162140614

main91621-40614

16 parts on this diagram · 6 diagrams in section
