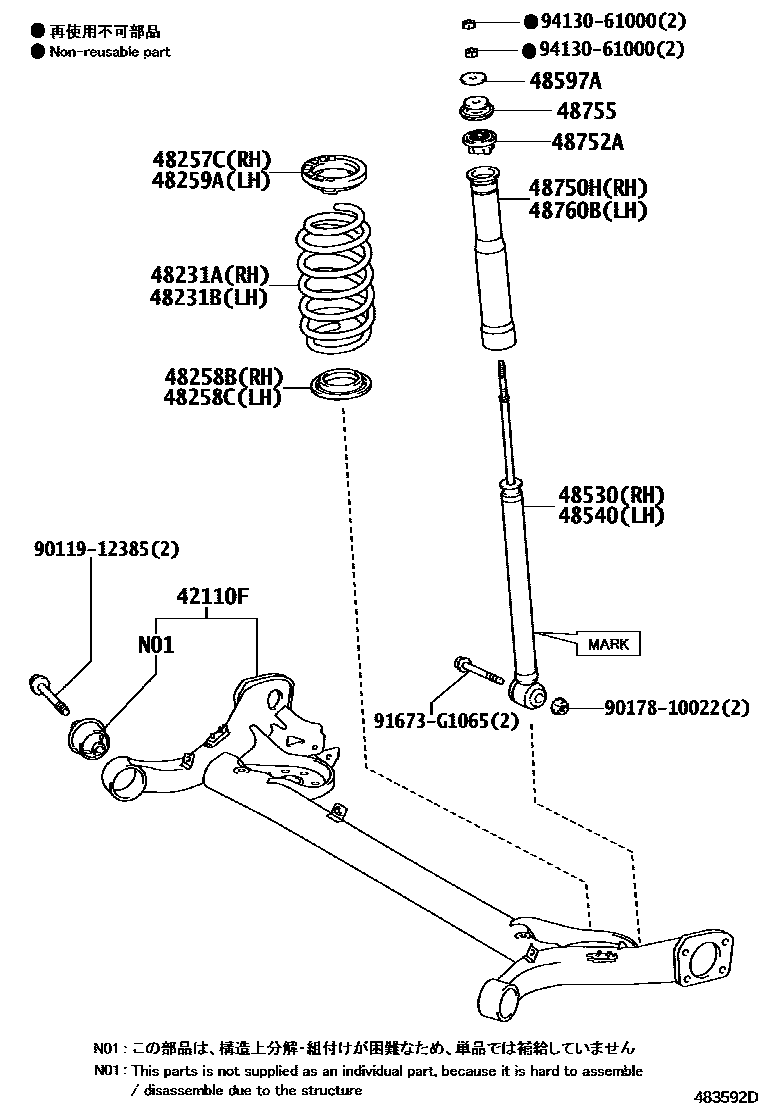

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL
MALAYSIA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +10MM)
TAIWAN SPEC&ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
NEW ZEALAND SPEC
48231BSPRING, COIL, REAR LH
NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL
MALAYSIA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +10MM)
NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
NEW ZEALAND SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52G80
MARK 48530-52K80
MARK 48530-52L80
MARK 48530-52G60,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE ALUMINUM
MARK 48530-52G70,NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
MARK 48530-52K60,NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL
sub48530-52M70
MARK 48530-52K70,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
MARK 48530-52L60,NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
sub48530-52M70
MARK 48530-52L70,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52G80
MARK 48530-52K80
MARK 48530-52L80
MARK 48530-52G60,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE ALUMINUM
MARK 48530-52G70,NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
MARK 48530-52K60,NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL
sub48530-52M70
MARK 48530-52K70,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
MARK 48530-52L60,NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM
sub48530-52M70
MARK 48530-52L70,ROUGH ROAD AREA SPEC-WITHOUT&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
9017810022
main90178-10022
91673G1065
main91673-G1065
9413061000
main94130-61000
18 parts on this diagram · 1 diagram in section
