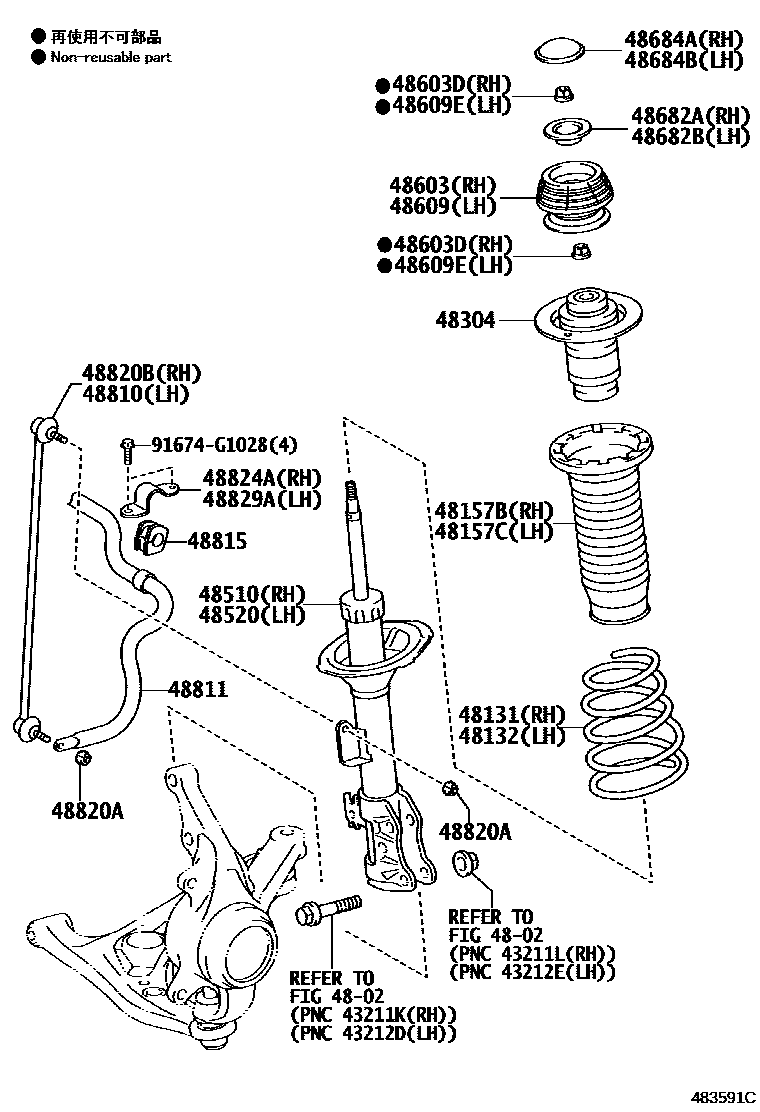

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-52E60iNHP10..GEN¥9,100201112-201308

main48131-52K80iNHP10..ARL201112-201404

LATIN AMERICA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48131-52K82

main48131-52K80iNHP10..LHD201112-201404

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48131-52K82

main48131-52K82iNHP10..RHD..GEN201404-201412

LATIN AMERICA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

main48131-52K82iNHP10..ARL201404-201706

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

main48131-52L80iNHP10..GEN¥9,100201309-201403

sub48131-52L81¥6,300

main48131-52L81iNHP10..GEN¥6,300201404-201706

48132SPRING, FRONT COIL, LH

main48131-52E60iNHP10..GEN¥9,100201112-201308

main48131-52K80iNHP10..RHD..GEN201112-201404

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48131-52K82

main48131-52K80iNHP10..LHD201112-201404

LATIN AMERICA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48131-52K82

main48131-52K82iNHP10..LHD201404-201706

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

main48131-52K82iNHP10..ARL201404-201412

LATIN AMERICA SPEC&ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

main48131-52L80iNHP10..GEN¥9,100201309-201403

sub48131-52L81¥6,300

main48131-52L81iNHP10..GEN¥6,300201404-201706

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iNHP10¥1,280201112-201404

main48157-52040iNHP10¥1,590201404-201611

main48157-52050iNHP10¥990201611-201706

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iNHP10¥1,280201112-201404

main48157-52040iNHP10¥1,590201404-201611

main48157-52050iNHP10¥990201611-201706

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-52011iNHP10..GEN201312-201403

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +10MM)

sub48304-52012

main48304-52011iNHP10..ARL201312-201403

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48304-52012

main48304-52012iNHP10..ARL201404-201412

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

main48304-52012iNHP10..GEN201404-201412

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +10MM)

main48304-52021iNHP10..ARL¥3,820201312-201403

NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM

sub48304-52022¥3,330

main48304-52021iNHP10..ARL¥3,820201312-201403

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM

sub48304-52022¥3,330

main48304-52021iNHP10..ARL¥3,820201312-201403

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL

sub48304-52022¥3,330

main48304-52022iNHP10..ARL¥3,330201404-201412

NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM

main48304-52022iNHP10..GEN¥3,330201404-201412

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J STEEL

main48304-52022iNHP10..GEN¥3,330201404-201412

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5.5J ALUMINUM

main48304-52040iNHP10..ARL¥3,010201112-201312

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +20MM)

sub48304-52041¥3,030

main48304-52040iNHP10..GEN¥3,010201112-201312

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP +10MM)

sub48304-52041¥3,030

main48304-52050iNHP10..ARL¥3,010201112-201312

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE STEEL

sub48304-52051¥3,080

main48304-52050iNHP10..ARL¥3,010201112-201312

NEW ZEALAND SPEC&TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE ALUMINUM

sub48304-52051¥3,080

main48304-52050iNHP10..ARL¥3,010201112-201312

NEW ZEALAND SPEC&TIRE & DISC WHEEL-195/50R16 6J SUMMER TIRE ALUMINUM

sub48304-52051¥3,080

main48304-52111iNHP10¥1,950201412-201706

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52G80iNHP10201112-201312

MARK 48510-52G80

main48510-52K90iNHP10201312-201403

MARK 48510-52K90

sub48510-52K91

main48510-52K91iNHP10201404-201412

MARK 48510-52K91

main48510-52L90iNHP10201412-201611

MARK 48510-52L90

main48510-52P00iNHP10..ARL¥17,600201706

MARK 48510-52P00

main48510-52P70iNHP10201611-201706

MARK 48510-52P70

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52580iNHP10201112-201312

MARK 48520-52580

main48520-52790iNHP10201312-201403

MARK 48520-52790

sub48520-52791

main48520-52791iNHP10201404-201412

MARK 48520-52791

main48520-52890iNHP10201412-201611

MARK 48520-52890

main48520-52C00iNHP10..ARL¥17,600201706

MARK 48520-52C00

main48520-52C70iNHP10201611-201706

MARK 48520-52C70

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iNHP10¥3,680201112-201706

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNHP10¥100201112-201706

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iNHP10¥3,680201112-201706

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNHP10¥100201112-201706

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iNHP10¥410201112-201706

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iNHP10¥410201112-201706

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iNHP10¥500201112-201706

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iNHP10¥500201112-201706

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iNHP10¥4,350201112-201706

48811BAR, STABILIZER, FRONT

main48811-52240iNHP10¥9,400201112-201706

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52090iNHP10¥550201112-201706

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNHP10¥100201112-201706

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iNHP10¥4,350201112-201706

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iNHP10¥1,050201112-201706

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iNHP10¥1,050201112-201706

91674G1028

main91674-G1028¥120

24 parts on this diagram · 2 diagrams in section
