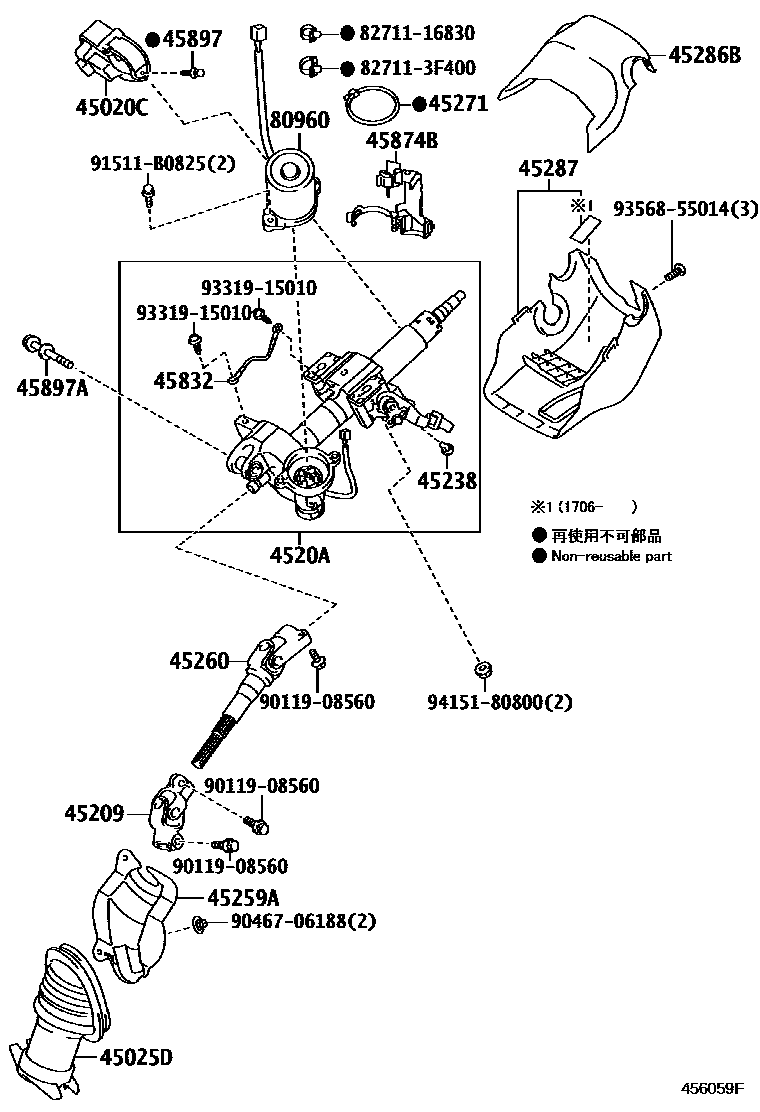

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-52170iNHP10¥13,500201112-201706

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52170iNHP10¥2,750201112-201706

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iNHP10¥4,840201112-201706

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52161iNHP10..RHD¥76,900201112-201206

sub4520A-52162¥48,500

main4520A-52162iNHP10..RHD¥48,500201207-201706

main4520A-52191iNHP10..LHD201112-201206

sub4520A-52192

main4520A-52192iNHP10..LHD201207-201706

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNHP10¥70201112-201706

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNHP10..RHD¥700201112-201706

main45259-52020iNHP10..LHD¥750201112-201706

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52290iNHP10..RHD¥10,400201112-201706

main45260-52300iNHP10..LHD201112-201706

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNHP10..RHD¥90201112-201706

45286BCOVER, STEERING COLUMN, UPR

main45286-12560-C0iNHP10201112-201706

BLACK,TRIM2#

main45286-12560-C0iNHP10201706

BLACK,TRIM2#,8#

45287COVER, STEERING COLUMN, LWR

main45024-52100-C0iNHP10201706

BLACK,TRIM2#,8#

main45287-52220-C0iNHP10201112-201706

BLACK,TRIM2#

sub45287-52220¥2,740

45832CABLE, TILT STEERING SUPPORT BOND

main45832-52010iNHP10¥410201112-201706

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNHP10..RHD¥1,260201112-201706

main45874-52050iNHP10..LHD201112-201706

45897BOLT, STEERING LOCK SET

main45897-12020iNHP10¥210201112-201706

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNHP10¥540201112-201209

main90119-10980iNHP10¥190201210-201706

80960MOTOR ASSY, POWER STEERING

main80960-52070iNHP10..RHD¥25,700201308-201311

sub80960-52110¥21,500

main80960-52090iNHP10..LHD¥21,400201112-201706

main80960-52100iNHP10..RHD¥25,700201112-201307

sub80960-52070¥25,700

main80960-52110iNHP10..RHD¥21,500201312-201706

main80960-52140iNHP10..LHD201706

main80960-52150iNHP10..RHD¥16,200201706

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830¥100

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400¥130

9011908560

main90119-08560¥110

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

9331915010

main93319-15010¥70

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

23 parts on this diagram · 2 diagrams in section
