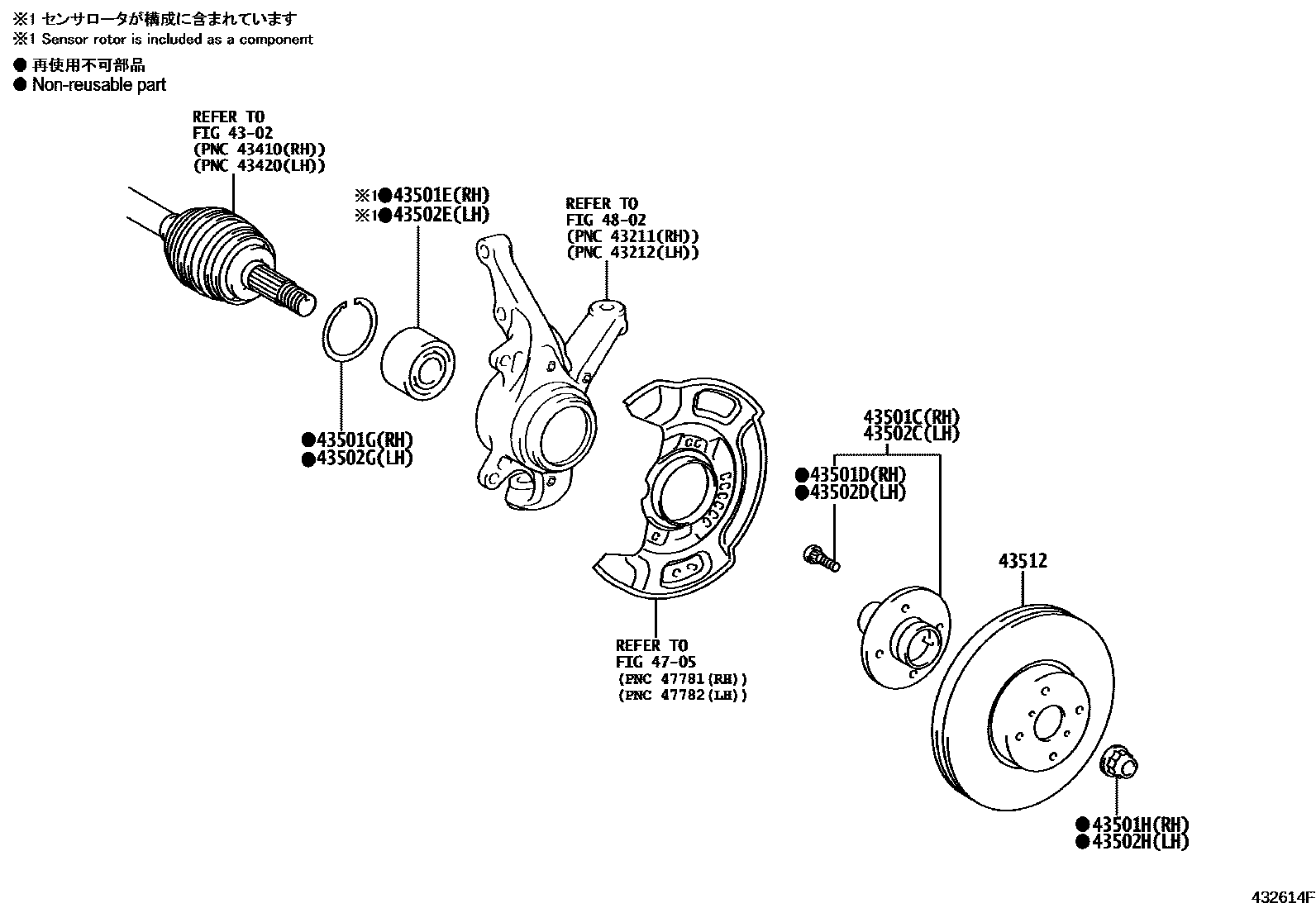

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iNHP10201112-201412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iNHP10201112-201412

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNHP10201112-201412

main90369-40009iNHP10201701-201706

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNHP10201112-201412

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNHP10201112-201412

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iNHP10201112-201412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iNHP10201112-201412

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNHP10201112-201412

main90369-40009iNHP10201701-201706

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNHP10201112-201412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNHP10201112-201412

43512DISC, FRONT

main43512-52120×2iNHP10201112-201412

4705

4802

14 parts on this diagram · 1 diagram in section
