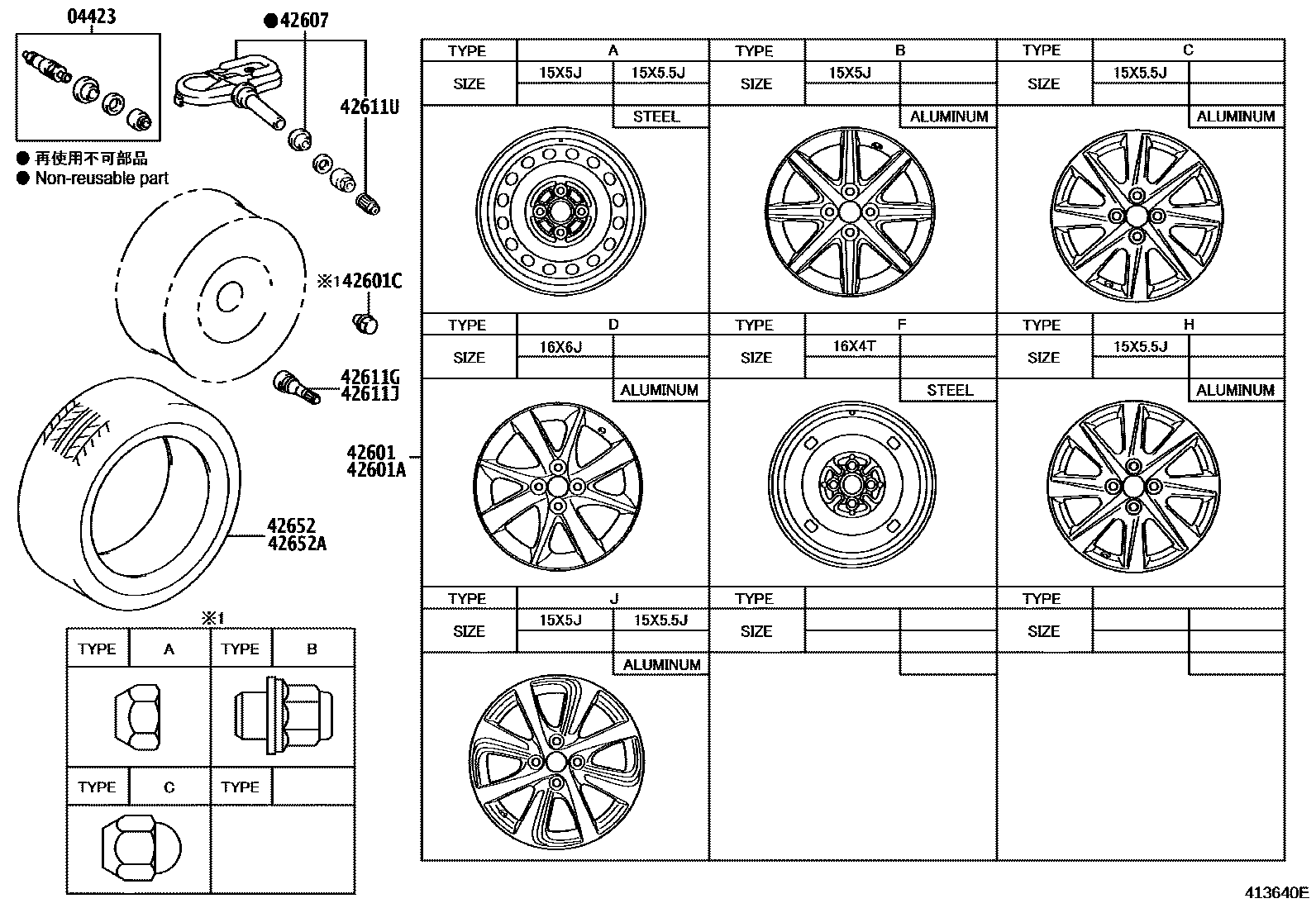

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33060
42601WHEEL, DISC
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE STEEL,TYPE F:REFER ILLUST.
16X4T,TYPE F:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-175/65R15 5J SUMMER TIRE ALUMINUM,TYPE F:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-52020
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42652TIRE
185/60R15 *B/S
185/60R15 *B/S
185/60R15 *D/L
185/60R15 *D/L,TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM
185/60R15 *B/S
185/60R15 *B/S,TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM
42652ATIRE (FOR SPARE)
T125/70D16,*D/L
185/60R15 *B/S
185/60R15 *B/S
10 parts on this diagram · 3 diagrams in section
