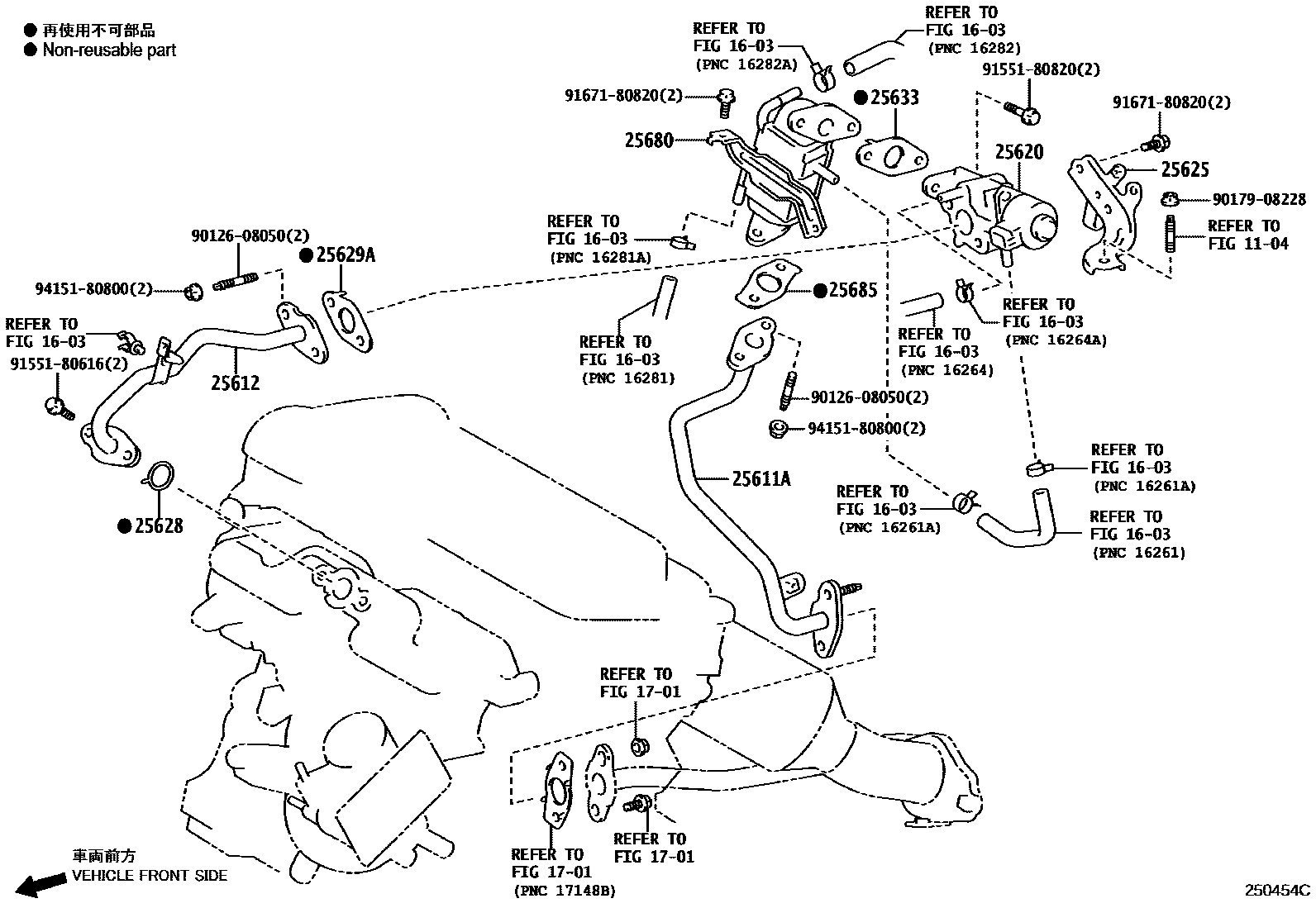

EXHAUST GAS RECIRCULATION SYSTEM

1104

1603

1701

25611APIPE, EGR, NO.1

main25611-21011i1NZFXE..NHP10201112-201706

25612PIPE, EGR, NO.2

main25612-21010i1NZFXE..NHP10201112-201706

25620VALVE ASSY, EGR

main25620-21020i1NZFXE..NHP10201112-201606

sub25620-21021

main25620-21021i1NZFXE..NHP10201607-201706

25625BRACKET, EGR VALVE

main25625-21010i1NZFXE..NHP10201112-201706

25628GASKET, EGR INLET

main25628-28010i1NZFXE..NHP10201112-201706

25629AGASKET, EGR PIPE, NO.2

main25629-21010i1NZFXE..NHP10201112-201706

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NHP10201112-201706

25680COOLER ASSY, EGR

main25680-21010i1NZFXE..NHP10201112-201706

25685GASKET, EGR COOLER, NO.1

main25685-21010i1NZFXE..NHP10201112-201706

9012608050

main90126-08050

9017908228

main90179-08228

9155180616

main91551-80616

9155180820

main91551-80820

9167180820

main91671-80820

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
