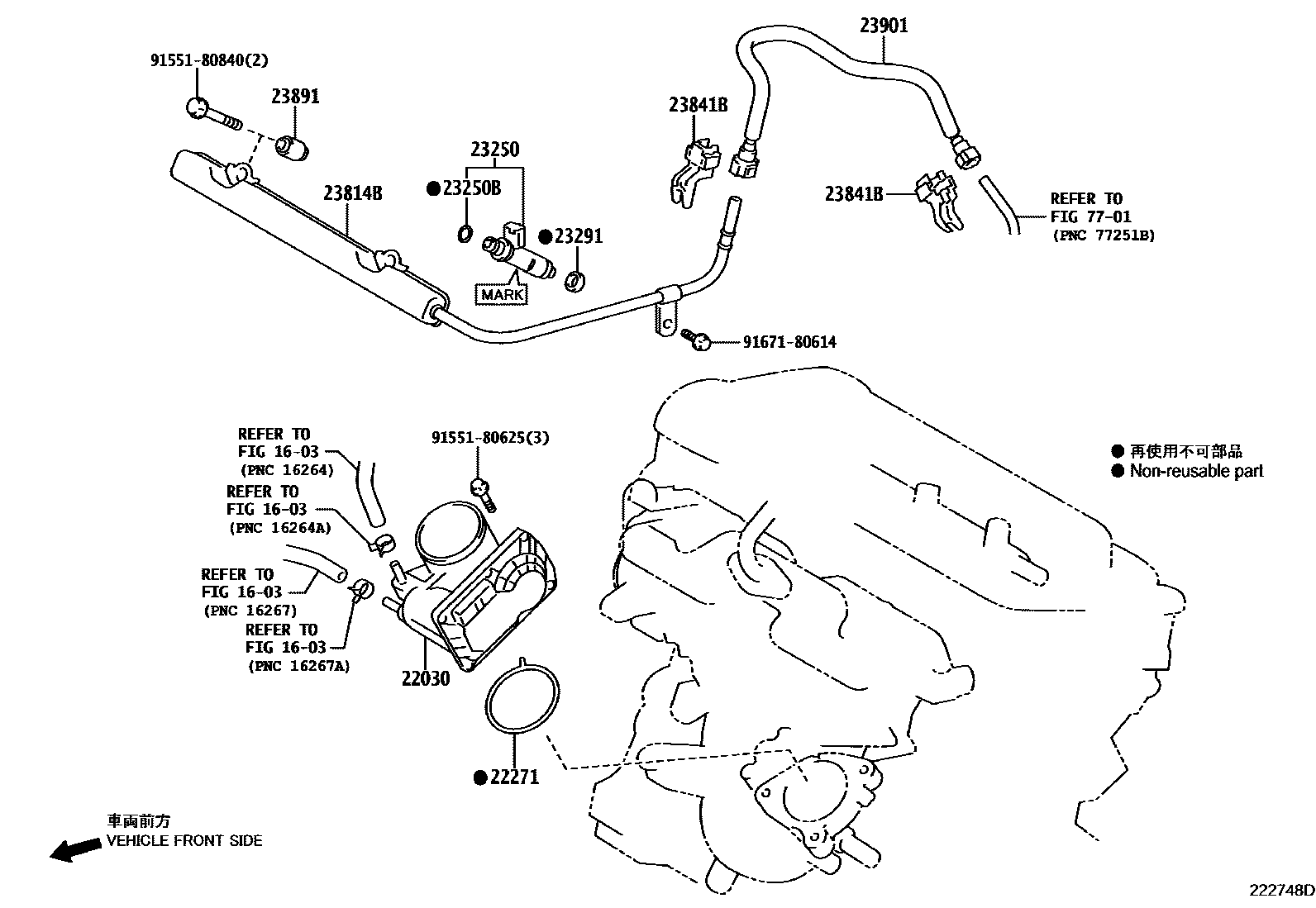

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47040i1NZFXE..NHP10201112-201412

22271GASKET, THROTTLE BODY

main22271-21070i1NZFXE..NHP10201112-201412

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFXE..NHP10201112-201210

MARK=23209-21040

sub23209-21120

main23209-21091×4i1NZFXE..NHP10201210-201412

MARK=23209-21091

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFXE..NHP10201112-201412

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFXE..NHP10201112-201412

23814BPIPE, FUEL DELIVERY

main23814-21072i1NZFXE..NHP10201112-201202

main23814-21073i1NZFXE..NHP10201202-201412

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i1NZFXE..NHP10201112-201412

23891SPACER, FUEL DELIVERY

main23891-21010×2i1NZFXE..NHP10201112-201412

23901TUBE SUB-ASSY, FUEL

main23901-21220i1NZFXE..NHP10201112-201412

7701

9155180625

main91551-80625

9155180840

main91551-80840

9167180614

main91671-80614

14 parts on this diagram · 1 diagram in section
