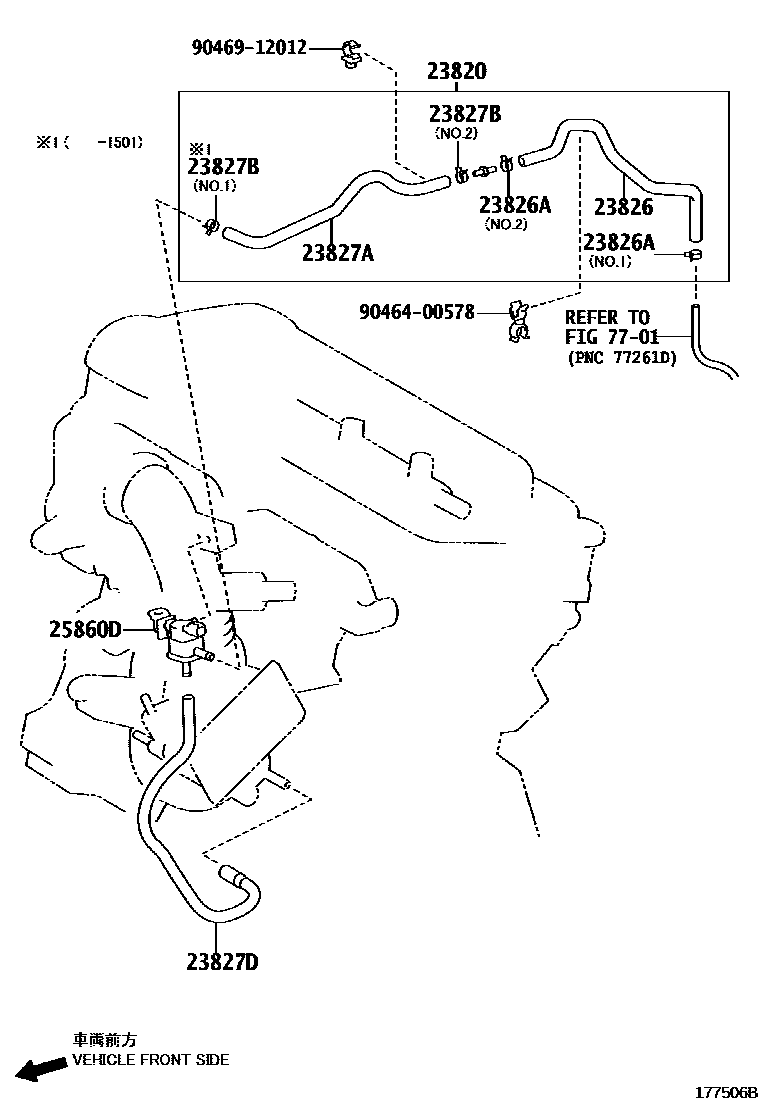

VACUUM PIPING
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.2
NO.1
NO.2
NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1
NO.2
NO.2
23827DHOSE, FUEL VAPOR FEED, NO.2
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7701
9046400578
main90464-00578
9046912012
main90469-12012
10 parts on this diagram · 1 diagram in section
