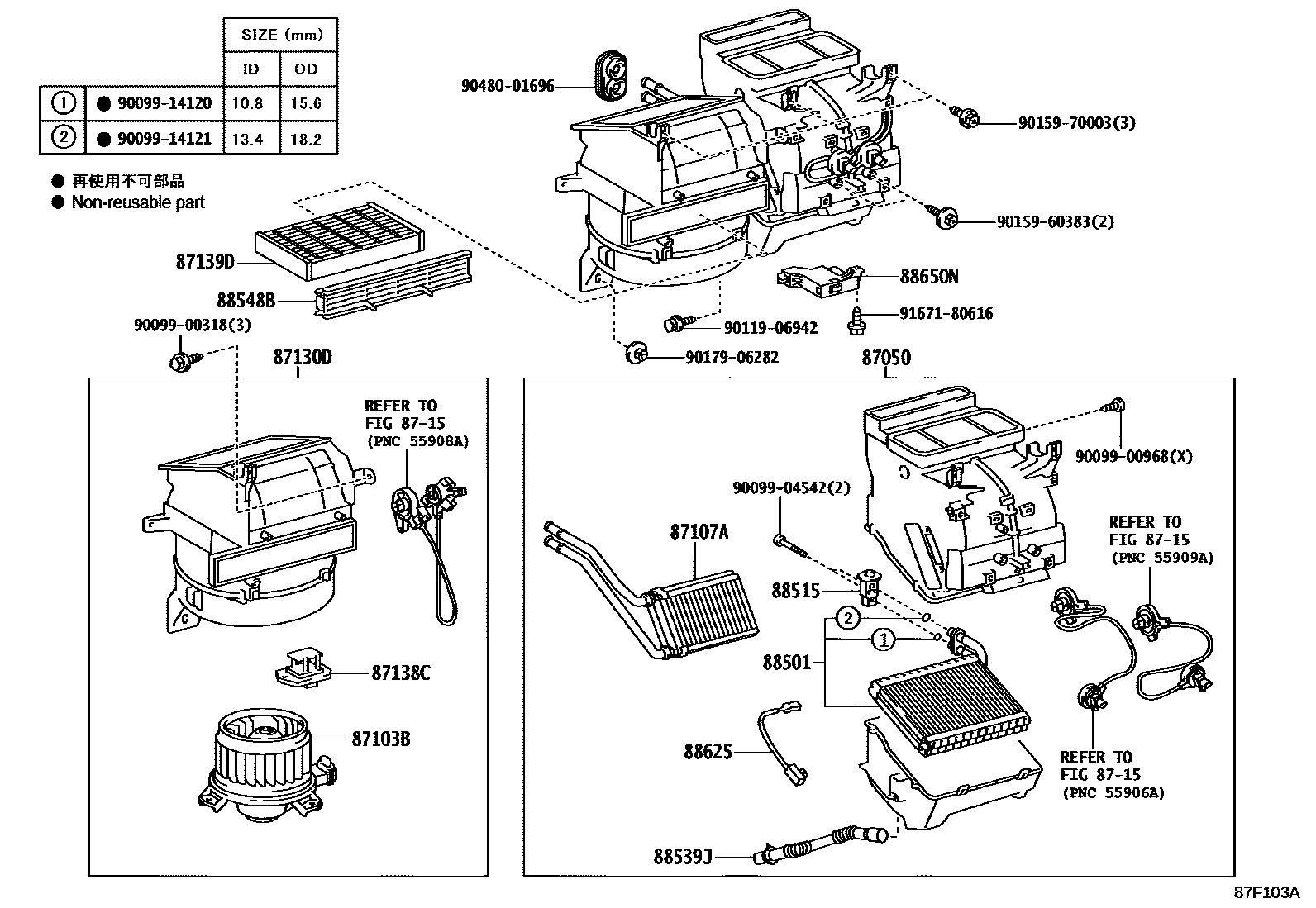

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52500iNSP141..Y201507

main87050-52510iNSP141..F201507

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52121iNSP141..Y201507

main87103-52132iNSP141..F201507

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52061iNSP141201507

87130DBLOWER ASSY

main87130-52050iNSP141..Y201507

main87130-52061iNSP141..F201507

87138CRESISTOR, BLOWER

main87138-52030iNSP141..Y201507

87139DELEMENT, AIR REFINER

main87139-50100iNSP141201507

DEODORANT FILTER

main87139-52040iNSP141201507

POLLEN FILTER

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52103iNSP141201507

88515VALVE, COOLER EXPANSION

main88515-52090iNSP141201507

88539JHOSE, DRAIN COOLER

main88539-52030iNSP141201507-201802

main88539-52060iNSP141201803

88548BCASE, AIR FILTER

main88548-52040iNSP141201507

88625THERMISTOR, COOLER, NO.1

main88625-26090iNSP141201507

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52C00iNSP141..Y201507

main88650-52C20iNSP141..F201507-201712

main88650-52E20iNSP141..F201712

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

9167180616

main91671-80616

24 parts on this diagram · 2 diagrams in section
