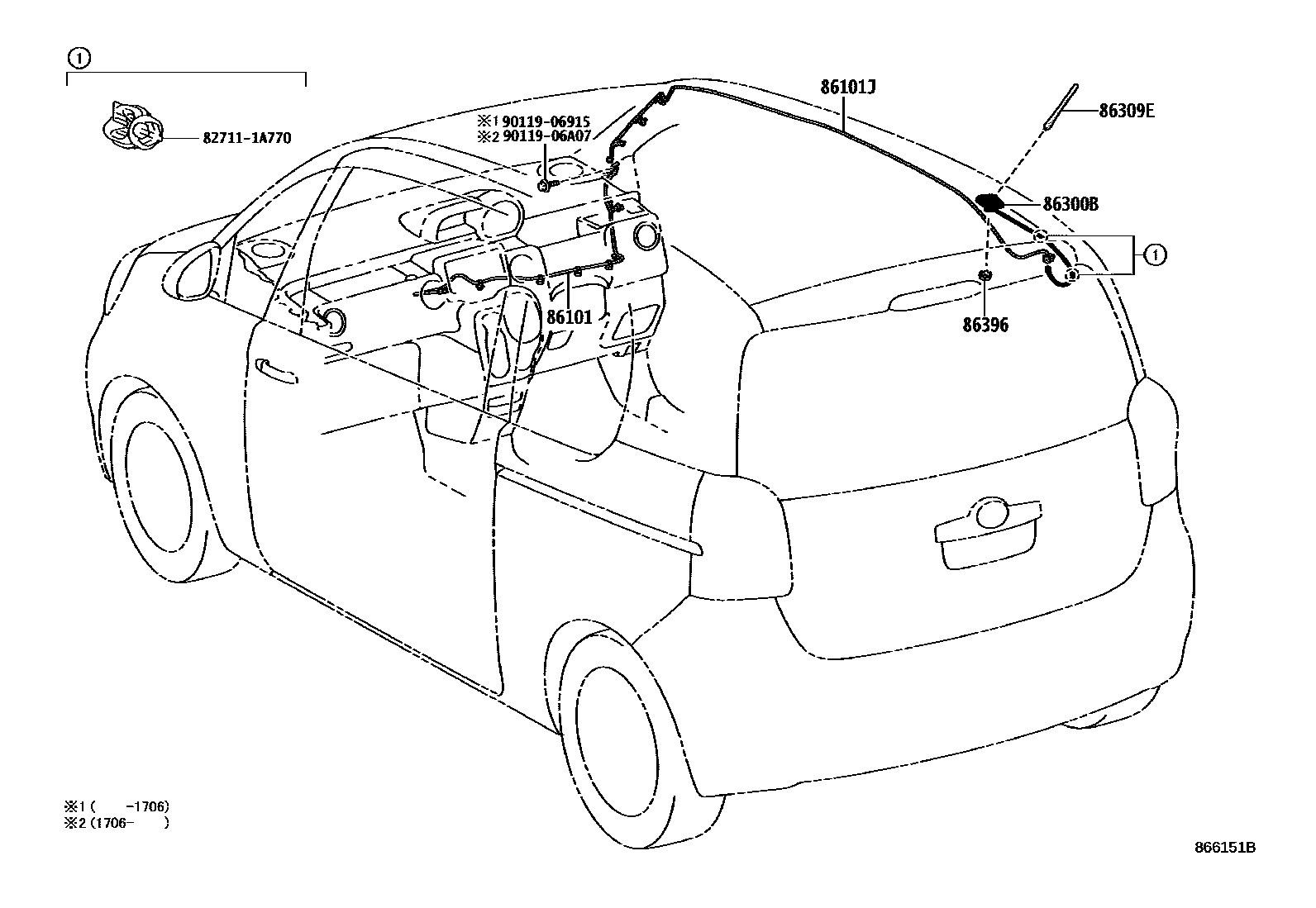

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52B40iNSP141201507

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52B30iNSP141201507

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52710iNSP141201507

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-13030iNSP141201507

86396NUT, ANTENNA

main86396-47010iNSP141201507

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

9011906A07

main90119-06A07

8 parts on this diagram · 1 diagram in section
