WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

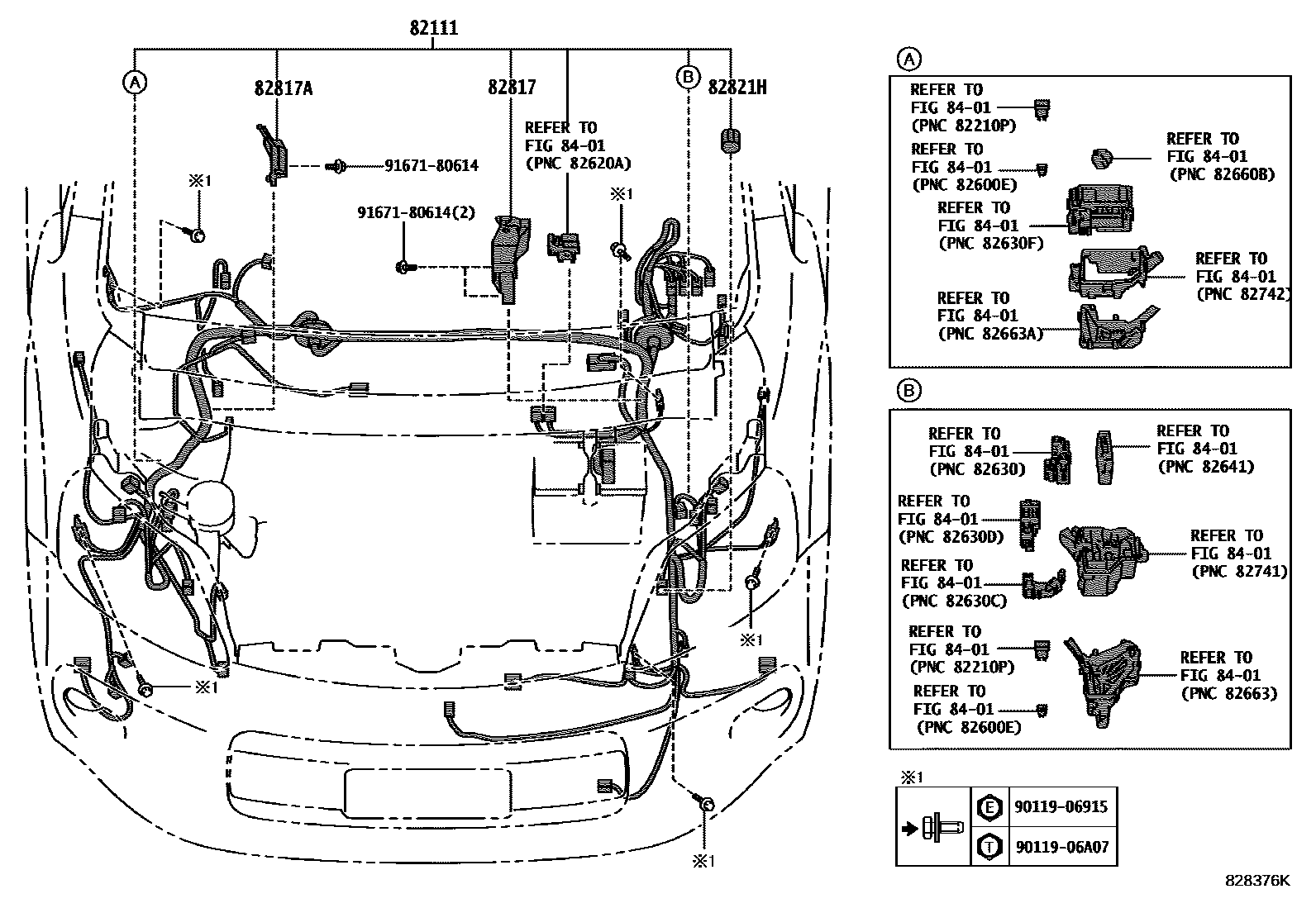

82111WIRE, ENGINE ROOM MAIN

main82111-5DD20iNSP141..Y201507-201607

sub82115-52C30

main82111-5DD22iNSP141..Y201607-201712

sub82115-52D10

main82111-5DD23iNSP141..Y201712-201907

sub82115-52E10

main82111-5DD24iNSP141..Y201907

main82111-5DD80iNSP141..F201507-201607

sub82115-52C90

main82111-5DP40iNSP141..F201607-201712

sub82115-52D80

main82111-5DP41iNSP141..F201712-201907

sub82115-52E70

main82111-5DP42iNSP141..F201907

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52A20iNSP141201507

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-52C00iNSP141201507

82821HCOVER, CONNECTOR

main82821-35040iNSP141201507

8401

9011906915

main90119-06915

9011906A07

main90119-06A07

9167180614

main91671-80614

8 parts on this diagram · 9 diagrams in section
