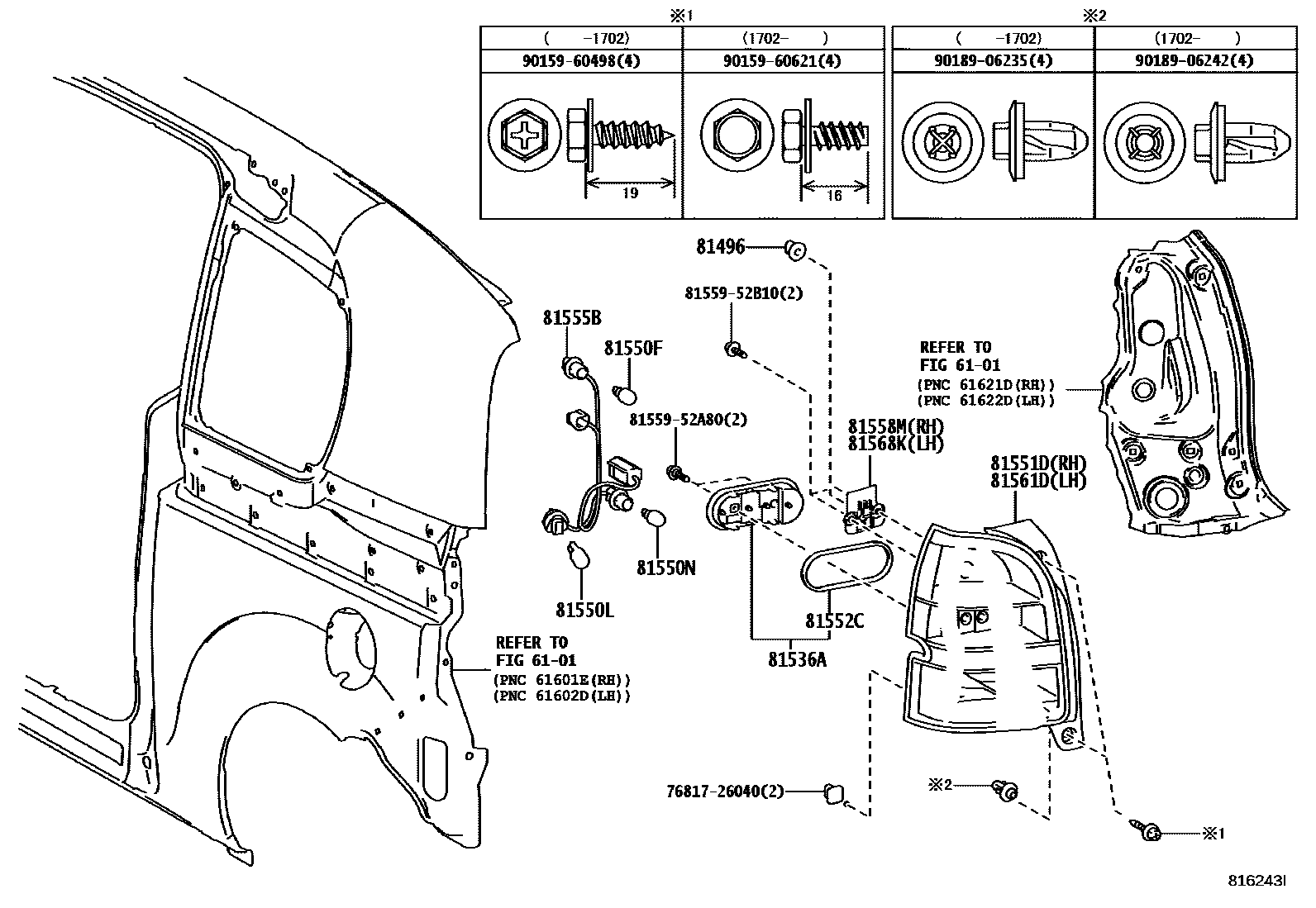

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNSP141201507

81536ALED, REAR COMBINATION LAMP

main81536-52B10iNSP141201507

81550FBULB, TAILLAMP

main99132-12050iNSP141201507

12V 5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNSP141201507

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNSP141201507

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52B10iNSP141201507

81552CGASKET, REAR COMBINATION LAMP

main81538-52B10iNSP141201507

81555BSOCKET PLUG, NO.1

main81555-52A30iNSP141201507

81558MBRACKET, REAR COMBINATION LAMP, RH

main81556-52B10iNSP141201811

main81558-52B10iNSP141201507-201811

sub81556-52B10

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52A20iNSP141201507

81568KBRACKET, REAR COMBINATION LAMP, LH

main81566-52A20iNSP141201811

main81568-52A20iNSP141201507-201811

sub81566-52A20

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

8155952A80MOULDING, REAR COMBINATION LAMP, RH

main81559-52A80

8155952B10MOULDING, REAR COMBINATION LAMP, RH

main81559-52B10

9015960498

main90159-60498

9015960621

main90159-60621

9018906235

main90189-06235

9018906242

main90189-06242

19 parts on this diagram · 1 diagram in section
