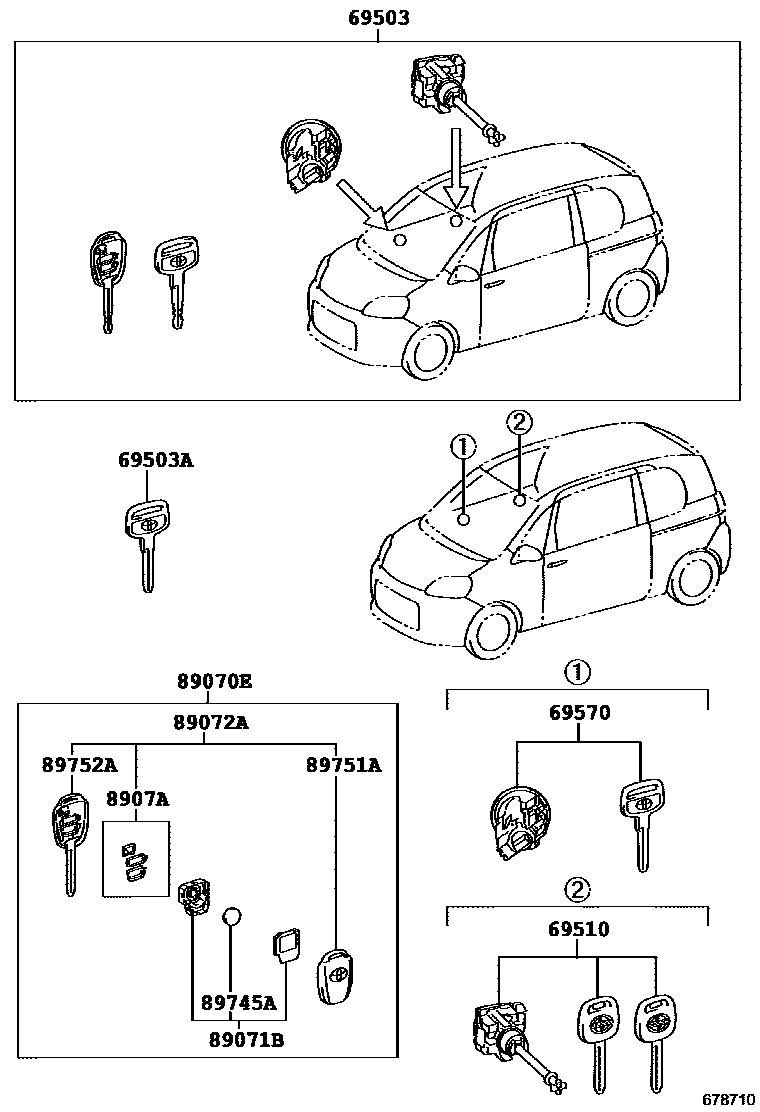

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-52R00iNSP141201507

69503AKEY, BLANK

main90999-00186iNSP141201507

MASTER KEY

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69051-52560iNSP141201507

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69057-52D40iNSP141201507

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-52G80iNSP141201507

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52230iNSP141201507

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52880iNSP141201507

8907ASWITCH SET, TRANSMITTER

main8907A-52030iNSP141201507

89745ABATTERY, TRANSMITTER

main89745-48030iNSP141201507

CR2016

sub89745-71010

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iNSP141201507

89752ACASE, TRANSMITTER HOUSING

main89752-52230iNSP141201507

11 parts on this diagram · 1 diagram in section
