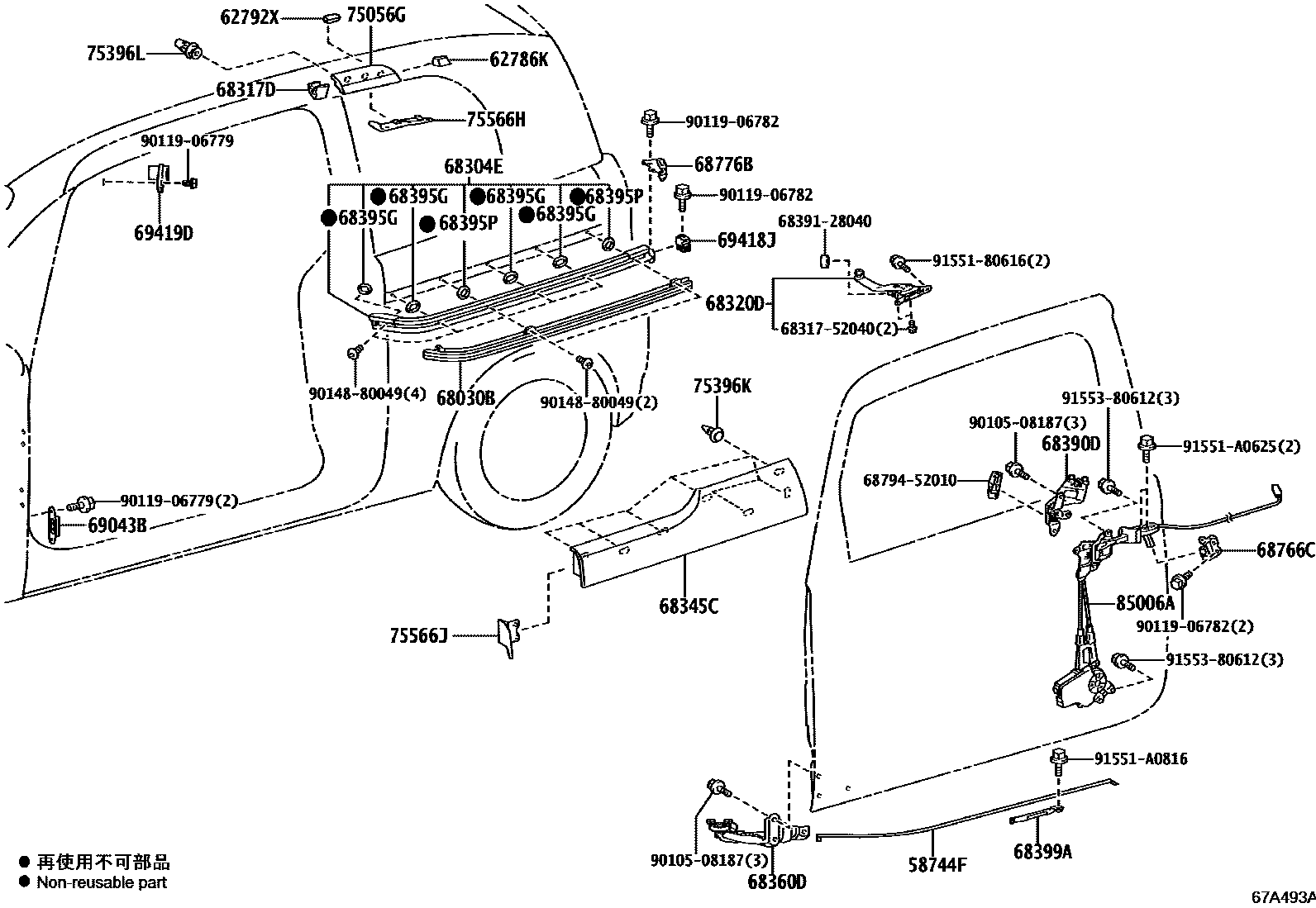

SLIDE DOOR ROLLER & RAIL
58744FPROTECTOR, SLIDE DOOR PANEL, LH
62786KSPACER, QUARTER WINDOW GLASS, NO.2
62792XSTOPPER, SIDE WINDOW LOCK, REAR LH
68304ERAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68317DSTOPPER, SLIDE DOOR UPPER RAIL
68320DROLLER ASSY, SLIDE DOOR, UPPER, LH
68345CCOVER, SLIDE DOOR CENTER RAIL
68360DROLLER ASSY, SLIDE DOOR, LOWER LH
68390DHINGE ASSY, SLIDE DOOR, CENTER LH
68395GPACKING, SLIDE DOOR CENTER RAIL
68395PPACKING, SLIDE DOOR CENTER RAIL, NO.2
68399APLATE, SLIDE DOOR LOWER RAIL, LH
68766CBRACKET, SLIDE DOOR, CENTER NO.1 LH
68776BBRACKET, SLIDE DOOR, CENTER NO.2 LH
69043BSTOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69418JSTOPPER, SLIDE DOOR DOWN MALE, LOWER LH
75056GGARNISH SUB-ASSY, ROOF SIDE, REAR LH
75396KCLIP, OUTSIDE MOULDING, NO.2
75396LCLIP, OUTSIDE MOULDING, NO.3
75566HPROTECTOR, ROOF SIDE GARNISH, NO.2
75566JPROTECTOR, ROOF SIDE GARNISH, FRONT LH
6831752040STOPPER, SLIDE DOOR UPPER RAIL, RH
main68317-52040
6839128040CUSHION, SLIDE DOOR UPPER ROLLER, RH
main68391-28040
6879452010PROTECTOR, DOOR HINGE ARM
main68794-52010
9010508187
main90105-08187
9011906779
main90119-06779
9011906782
main90119-06782
9014880049
main90148-80049
9155180616
main91551-80616
91551A0625
main91551-A0625
91551A0816
main91551-A0816
9155380612
main91553-80612
35 parts on this diagram · 2 diagrams in section
