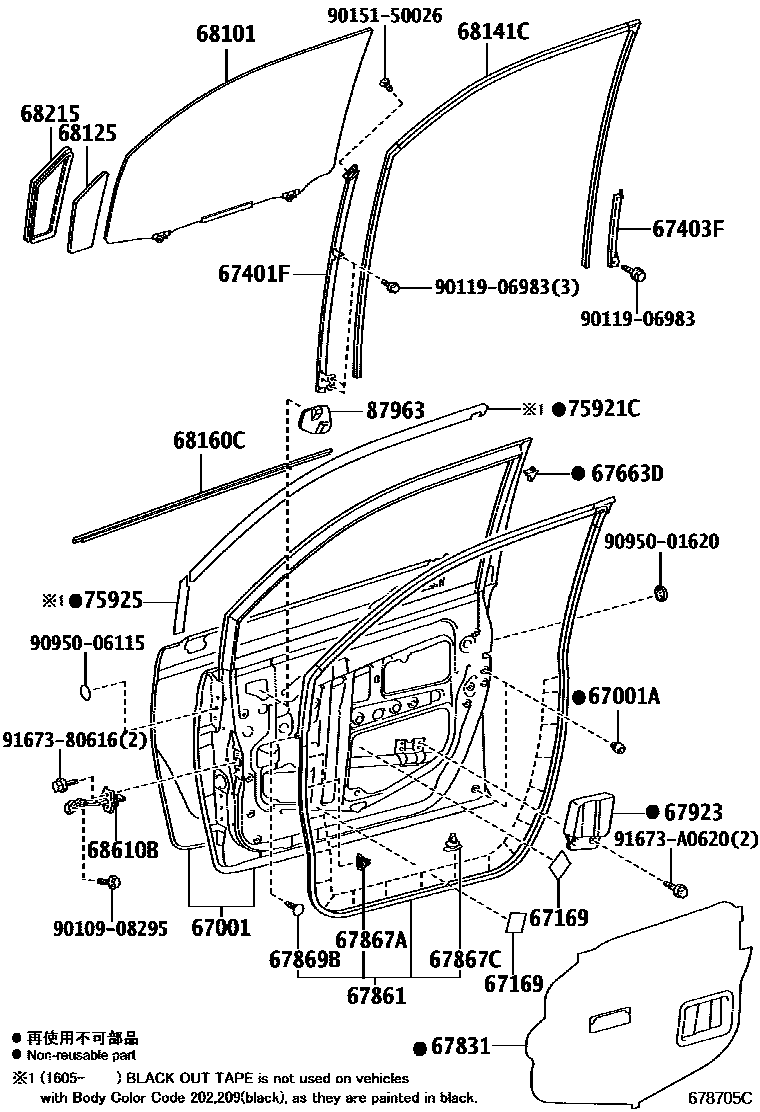

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL (DRIVER SIDE) 0002 1DOOR PANEL (PASSENGER SIDE) 0003 1DOOR TRIM (DRIVER SIDE) 0004 1DOOR TRIM (PASSENGER SIDE)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52470iNSP141¥52,500201507

67001ACUSHION, FRONT DOOR PANEL

main90541-09143iNSP141¥100201507

67169LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67169-44020iNSP141¥1,460201507

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52170iNSP141¥3,690201507

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52220iNSP141¥1,720201507

67663DGARNISH, DOOR FRAME, RH

main67663-48010iNSP141¥180201507

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52431iNSP141¥1,080201507

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52280iNSP141¥7,100201507

sub67861-52290¥7,100

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-52010iNSP141¥100201509

main90467-04034iNSP141¥60201507-201508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNSP141¥100201507

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNSP141¥100201507

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52190iNSP141¥2,380201507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52110iNSP141¥25,100201507

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-52090iNSP141¥4,290201507

68141CRUN, FRONT DOOR GLASS, RH

main68141-52270iNSP141¥3,030201507

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-52020iNSP141¥2,560201507

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-52040iNSP141¥2,490201507

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52190iNSP141¥3,080201507

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52150iNSP141¥1,640201507-201605

75925TAPE, BLACK OUT, NO.3 RH

main75925-52140iNSP141¥1,780201507-201605

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-52020iNSP141¥840201507

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

9015150026

main90151-50026¥60

9095001620

main90950-01620¥110

9095006115

main90950-06115¥110

9167380616

main91673-80616¥60

91673A0620

main91673-A0620¥60

28 parts on this diagram · 4 diagrams in section
