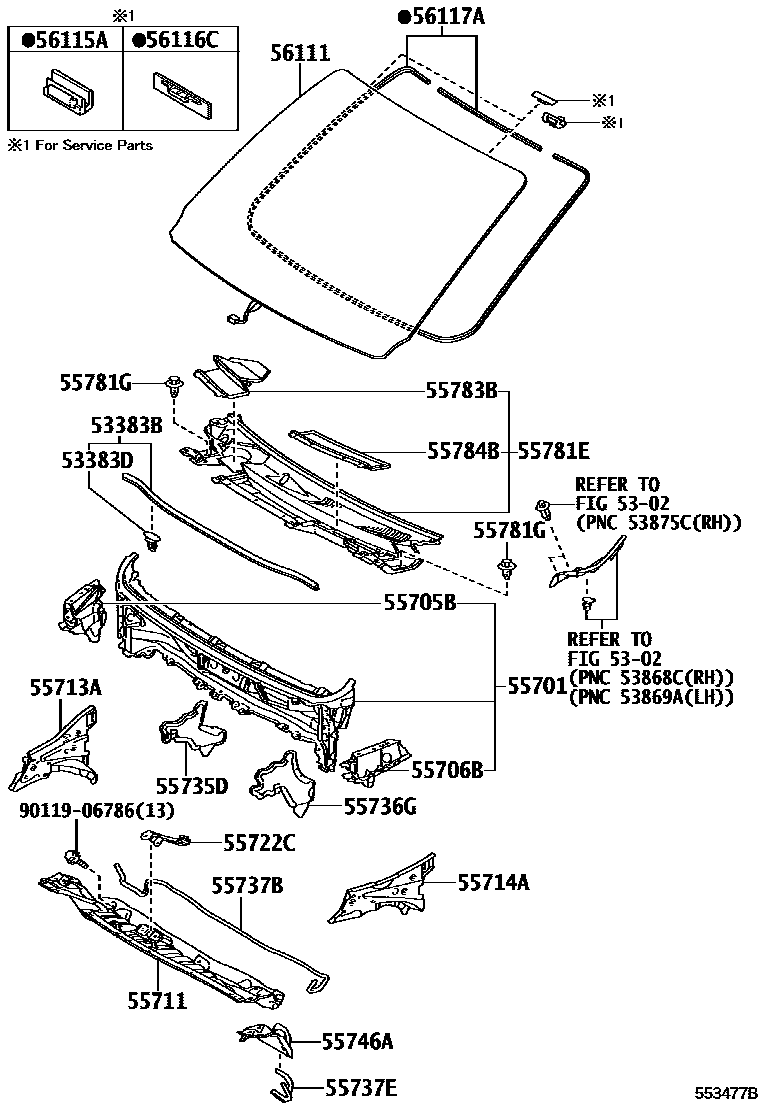

COWL PANEL & WINDSHIELD GLASS

5302

53383BSEAL, HOOD TO COWL TOP

main53383-52150iNSP141¥1,370201507

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNSP141¥100201507

55701PANEL SUB-ASSY, COWL

main55700-52380iNSP141¥23,100201507

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52190iNSP141¥3,280201507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52190iNSP141¥3,280201507

55711PANEL, COWL TOP, OUTER

main55701-52330iNSP141¥13,100201507

55713APANEL, COWL TOP SIDE, RH

main55713-52150iNSP141¥3,260201507

55714APANEL, COWL TOP SIDE, LH

main55714-52150iNSP141¥3,260201507

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52190iNSP141¥1,610201507

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52120iNSP141¥780201507

55736GSEAL, FRONT AIR SHUTTER, LH

main55736-52070iNSP141¥780201507

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52190iNSP141¥980201507

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52200iNSP141¥320201507

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-52170iNSP141¥2,990201507

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52330iNSP141¥17,200201507-201508

sub55708-52331¥14,300

main55708-52331iNSP141¥14,300201509

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iNSP141201507-201703

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-07076-C7iNSP141201703

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52320iNSP141¥2,400201507

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-52130iNSP141¥2,720201507

56111GLASS, WINDSHIELD

main56101-52966iNSP141¥73,800201507

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP141¥130201507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP141¥120201507

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNSP141¥1,610201507

*D,L=3173

9011906786

main90119-06786¥90

24 parts on this diagram · 1 diagram in section
