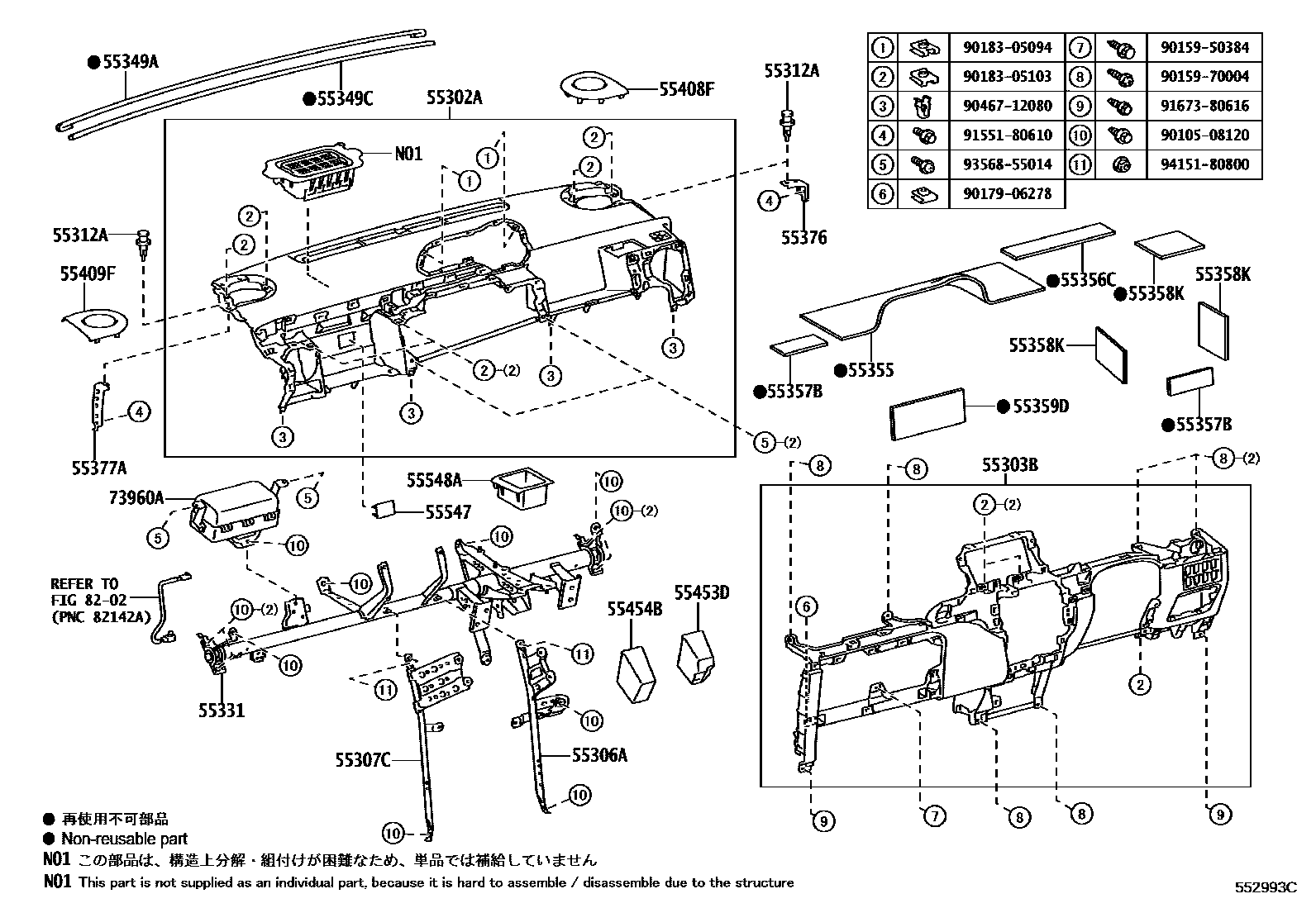

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
PLUM,TRIM0#,4#
PLUM,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
FROMAGE,TRIM0#
BLACK,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312ACLIP, INSTRUMENT PANEL
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
PLUM,TRIM4#
PLUM,TRIM0#,4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
PLUM,TRIM4#
PLUM,TRIM0#,4#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
55547COVER, REMOTE CONTROL MIRROR HOLE
55548ACOVER, INSTRUMENT PANEL HOLE
PLUM,TRIM0#,4#
PLUM,TRIM4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508120
9015950384
9015970004
9017906278
9018305094
9018305103
9046712080
9155180610
9167380616
9356855014
9415180800
34 parts on this diagram · 4 diagrams in section
