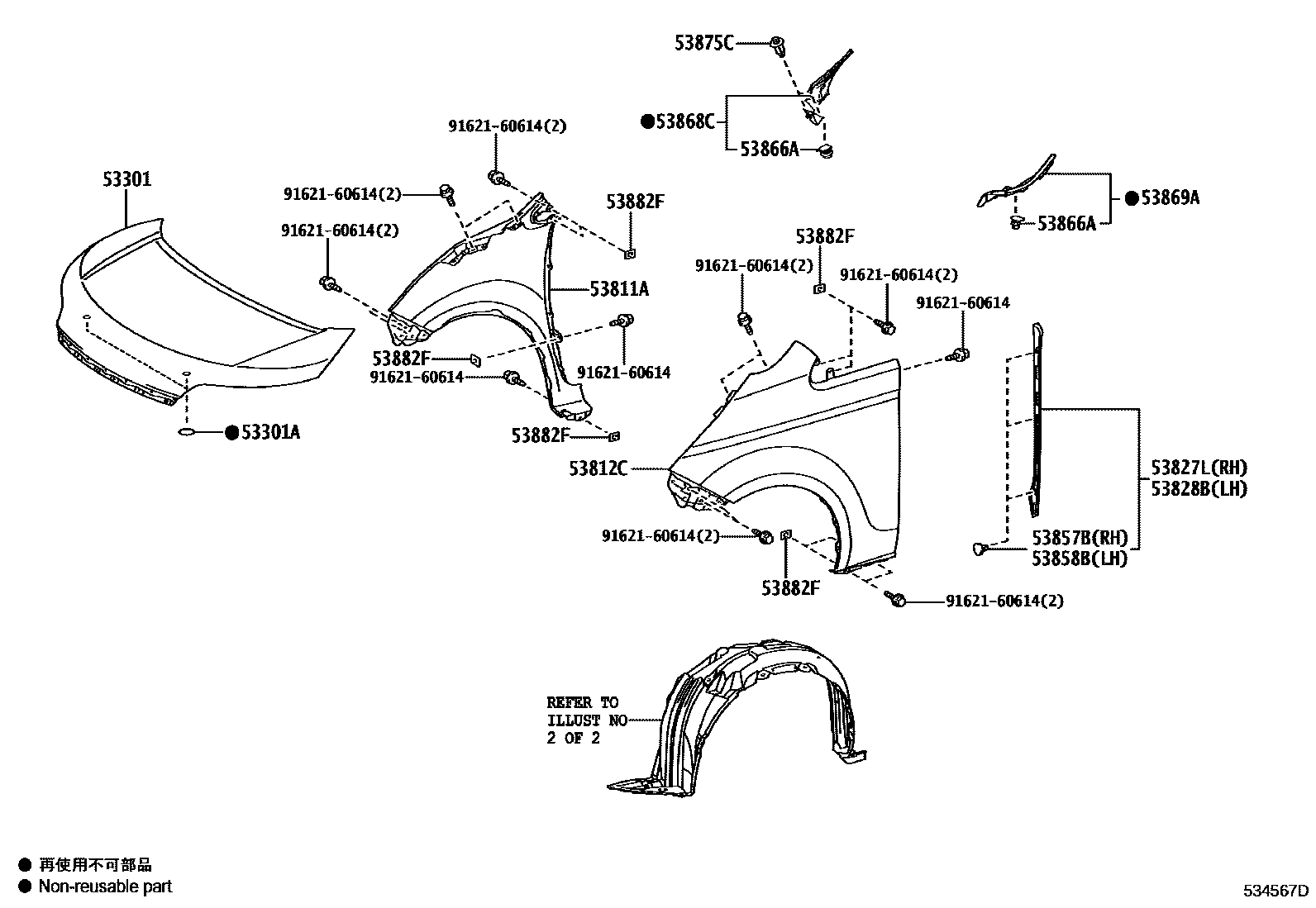

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-52360iNSP141201507

53301APLUG, HOLE(FOR HOOD)

main90950-06124iNSP141201507

53811APANEL, FRONT FENDER, RH

main53811-52450iNSP141201507

53812CPANEL, FRONT FENDER, LH

main53812-52440iNSP141201507

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52180iNSP141201507

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52190iNSP141201507

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNSP141201507

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main90467-10162iNSP141201507

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-74010iNSP141201507

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-52060iNSP141201507

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52090iNSP141201507

53875CCLIP, FRONT FENDER LINER

main90467-07076-C0iNSP141201507-201702

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iNSP141201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

53882FSEAL, FRONT FENDER

main53882-16030iNSP141201507

9162160614

main91621-60614

14 parts on this diagram · 2 diagrams in section
