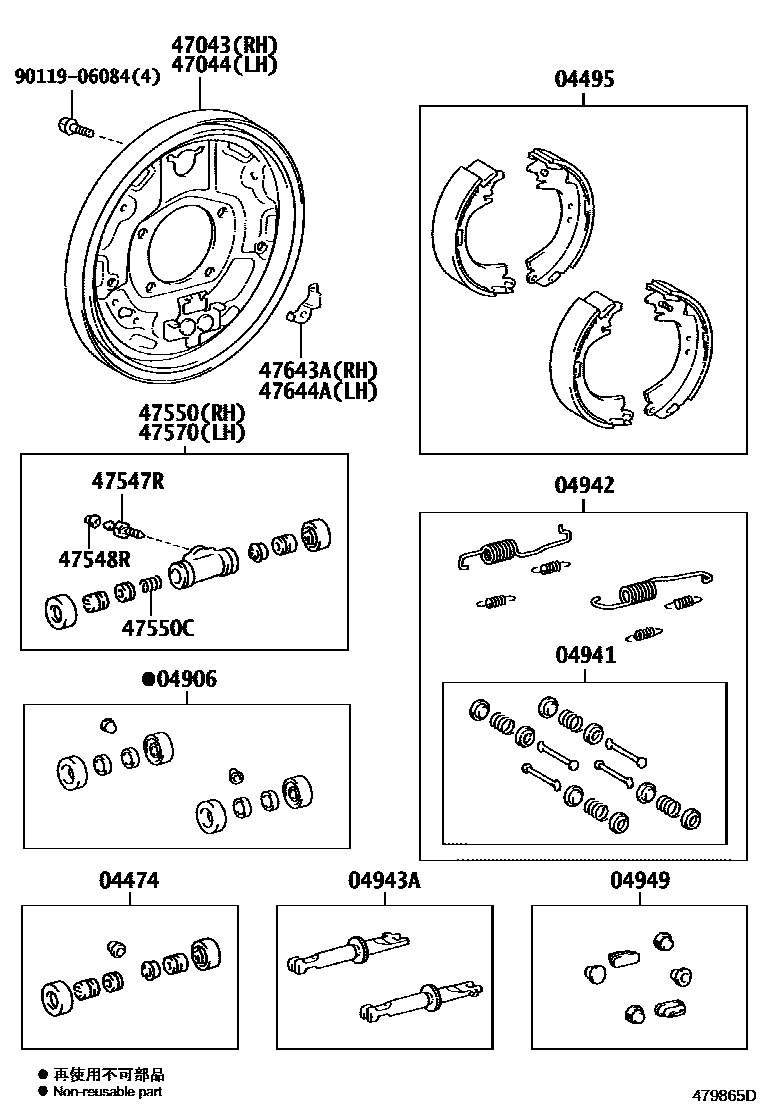

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52140×2iNSP141201507

04495SHOE KIT, REAR BRAKE

main04495-52121iNSP141201507

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iNSP141201507

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNSP141201507

04942SPRING KIT, REAR BRAKE

main04942-13030iNSP141201507

04943ASTRUT KIT, REAR BRAKE

main04943-52030iNSP141201507

04949PLUG KIT, REAR BRAKE

main04949-13010iNSP141201507

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52120iNSP141201507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52120iNSP141201507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iNSP141201507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNSP141201507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iNSP141201507

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iNSP141201507

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iNSP141201507

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iNSP141201507

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iNSP141201507

9011906084

main90119-06084

17 parts on this diagram · 1 diagram in section
