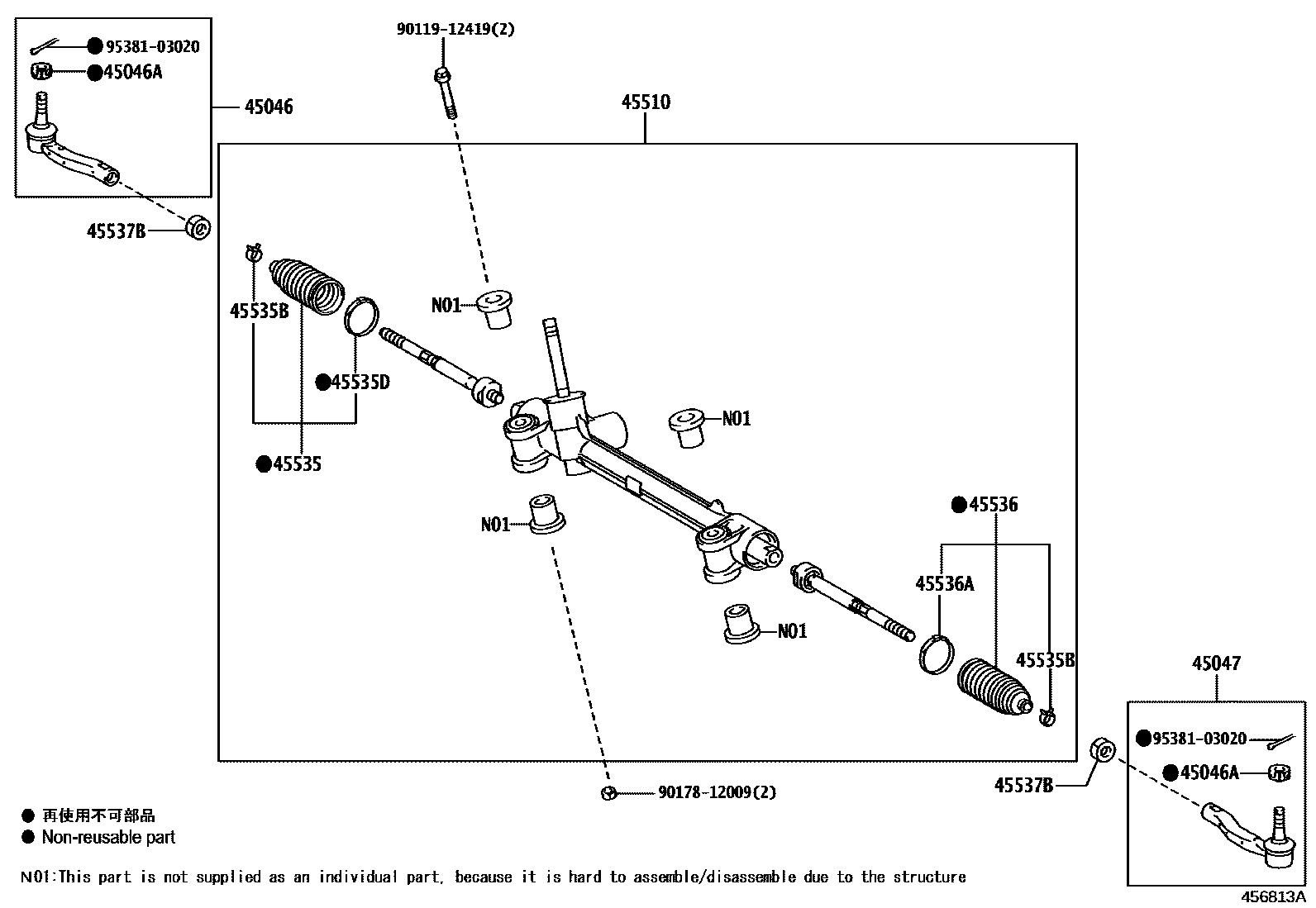

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59205iNSP141201507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNSP141201507

45047END SUB-ASSY, TIE ROD, LH

main45047-59145iNSP141201507

45510GEAR ASSY, STEERING

main45510-52241iNSP141201507

45535BOOT, STEERING RACK, NO.1

main45535-59035iNSP141201507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNSP141201507

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNSP141201507

45536BOOT, STEERING RACK, NO.2

main45535-59035iNSP141201507

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNSP141201507

45537BNUT, RACK END LOCK

main90178-15003×2iNSP141201507

9011912419

main90119-12419

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
