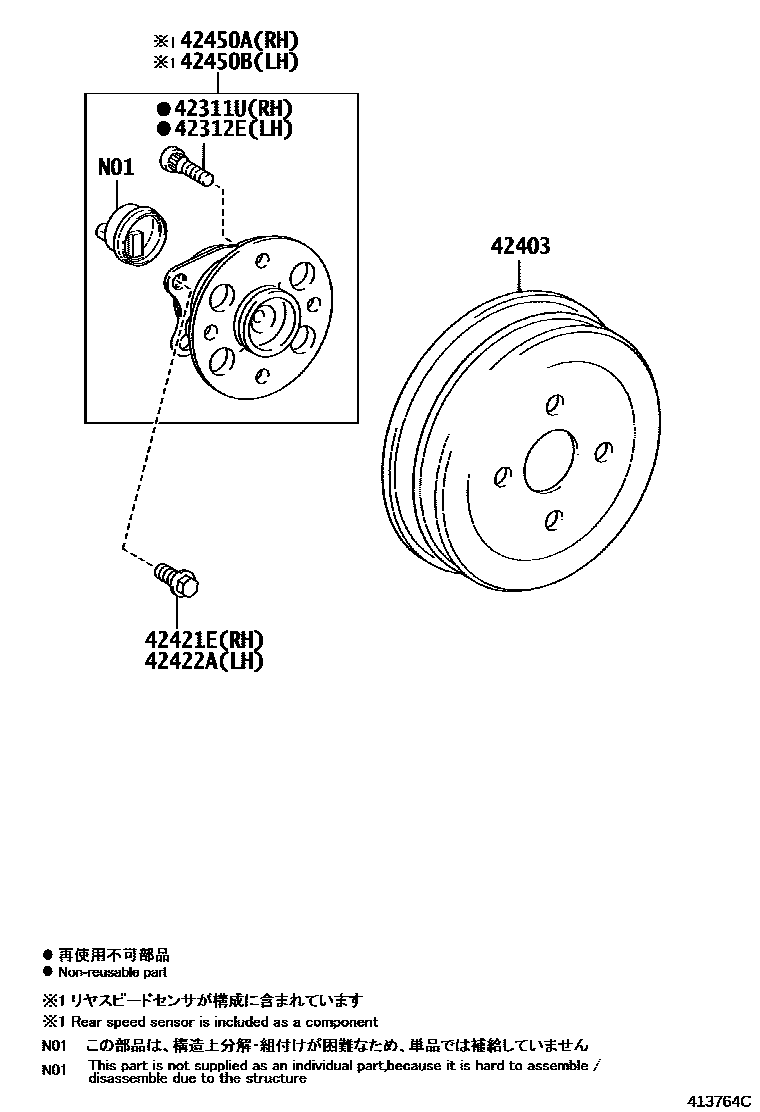

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNSP141¥240201507

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNSP141¥240201507

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52090iNSP141¥7,800201507

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNSP141¥160201507

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNSP141¥160201507

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-52060iNSP141¥28,700201507-201612

sub42450-52061¥18,100

main42450-52061iNSP141¥18,100201701

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-52060iNSP141¥28,700201507-201612

sub42450-52061¥18,100

main42450-52061iNSP141¥18,100201701

7 parts on this diagram · 1 diagram in section
