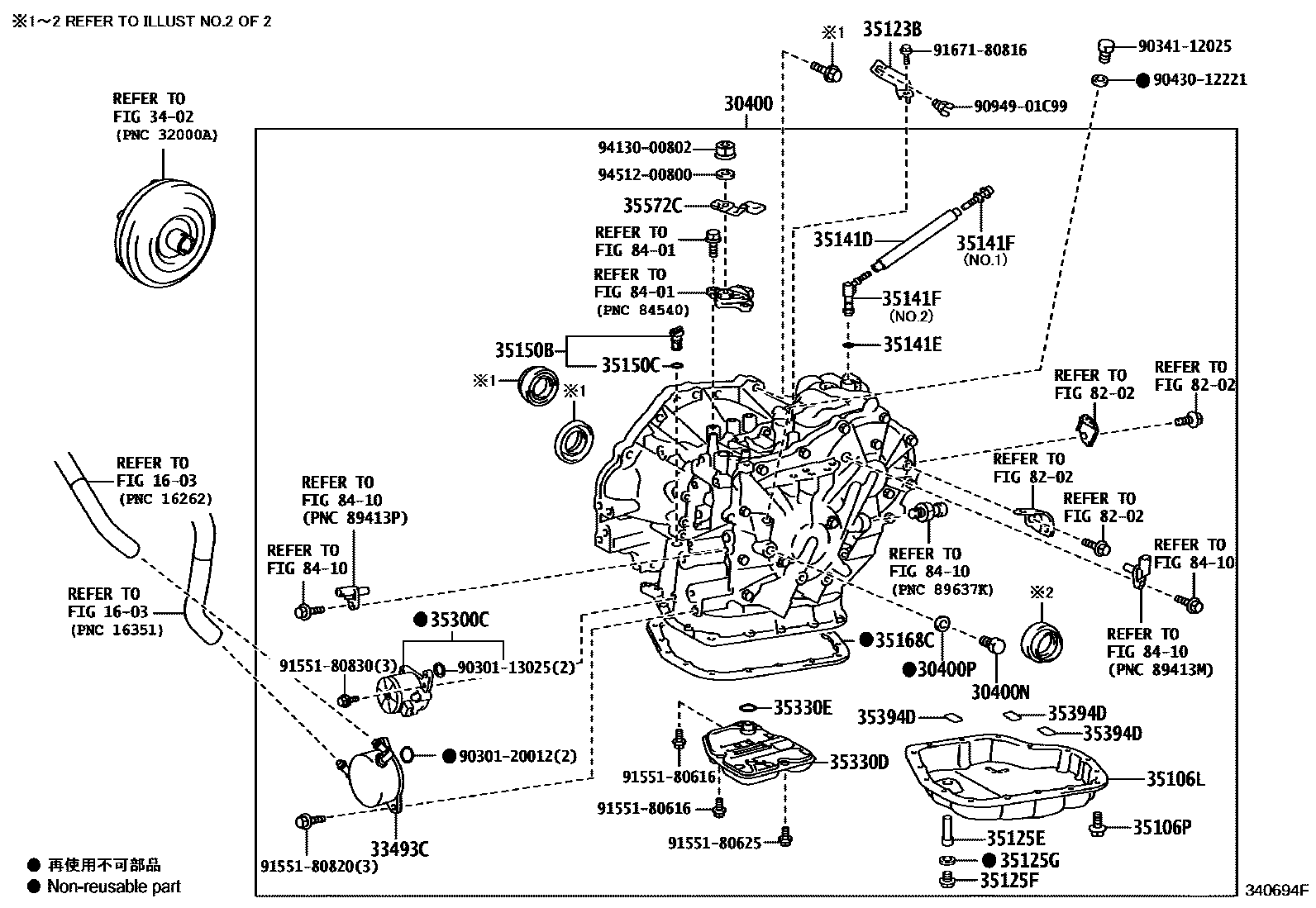

TRANSAXLE ASSY(CVT)

0001 1K312 0002 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12270iNSP141¥347,000201507

K312

sub30400-12271¥315,000

30400NPLUG, REFILL(CVT)

main90341-18077iNSP141¥190201507

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP141¥110201507

33493CCOOLER, TRANSMISSION OIL

main33493-52010iNSP141¥6,500201507-202012

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12170iNSP141¥5,200201507-201601

sub35106-12171¥3,270

main35106-12171iNSP141¥3,270201602

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNSP141¥80201507

35123BSKIRT,TRANSMISSION BREATHER

main35123-52050iNSP141¥340201507

35125ETUBE, OVERFLOW(CVT)

main35125-12430iNSP141¥130201507

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP141¥190201507

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP141¥90201507

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNSP141¥590201507

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iNSP141¥170201507-201604

main90301-06021iNSP141¥140201605

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iNSP141¥220201507

NO.1

main90930-03191iNSP141¥260201507

NO.2

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP141¥280201507

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP141¥140201507

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP141¥370201507

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNSP141¥42,500201507

35330DSTRAINER ASSY, OIL

main35330-0W110iNSP141¥4,480201507

35330ERING, O (FOR OIL STRAINER)

main90301-22014iNSP141¥130201507-201604

main90301-22019iNSP141¥130201605

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNSP141¥360201507

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12170iNSP141¥370201507

8202

8401

8410

9030113025

main90301-13025¥170

9030120012

main90301-20012¥170

9034112025

main90341-12025¥190

9043012221

main90430-12221¥200

9094901C99

main90949-01C99¥100

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9155180830

main91551-80830¥80

9167180816

main91671-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

38 parts on this diagram · 2 diagrams in section
