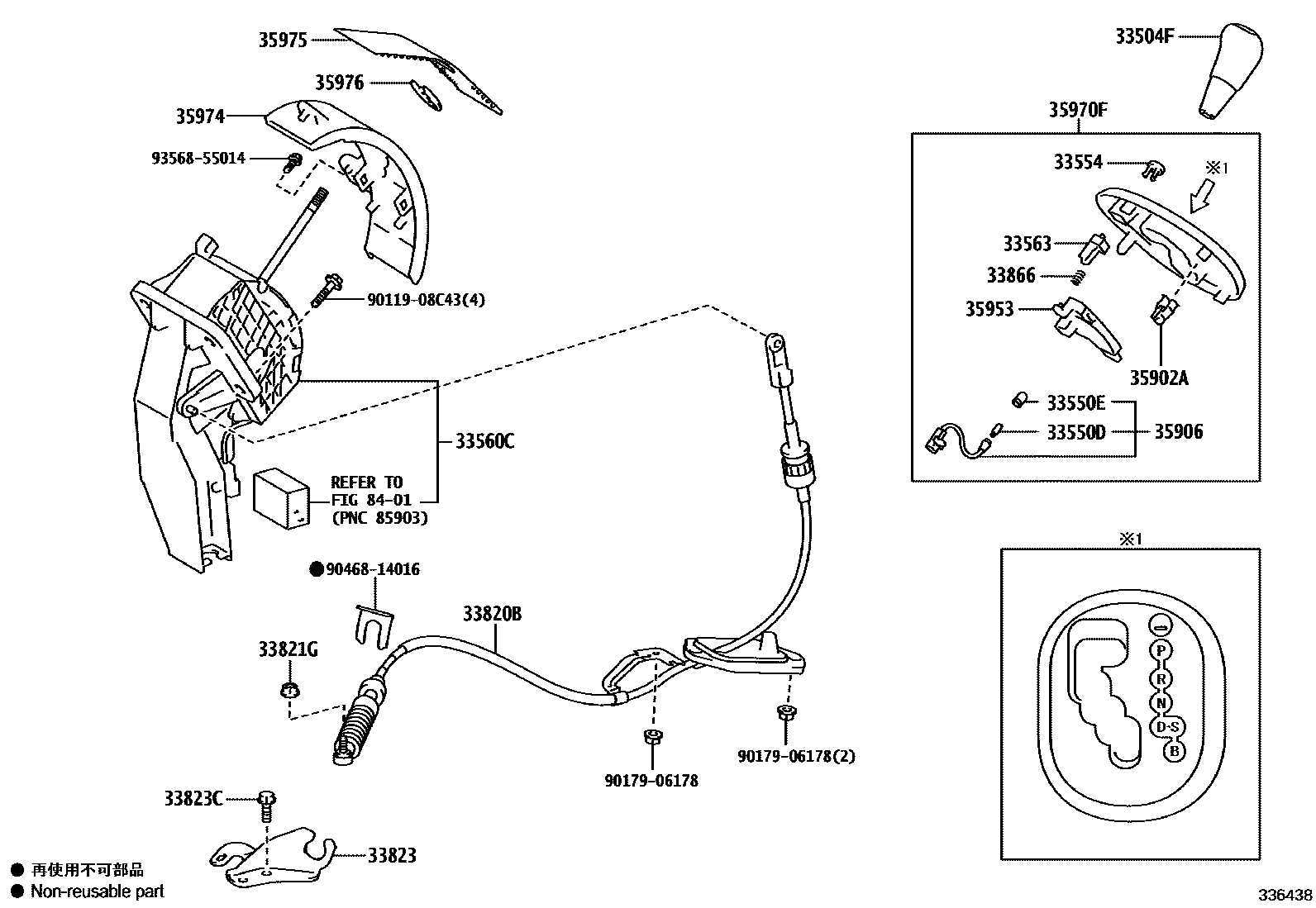

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM4#
BLACK,TRIM4#
PLUM,TRIM0#
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
BLACK,TRIM4#
PLUM,TRIM0#
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
33820BCABLE ASSY, TRANSMISSION CONTROL
W/O(PROTECTOR)
W/(PROTECTOR)
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
33866SPRING, SHIFT LOCK RELEASE
35902ACLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
35906WIRE SUB-ASSY, INDICATOR LAMP
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
BLACK,TRIM4#
PLUM,TRIM0#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9011908C43
main90119-08C43
9017906178
main90179-06178
9046814016
main90468-14016
9356855014
main93568-55014
23 parts on this diagram · 2 diagrams in section
