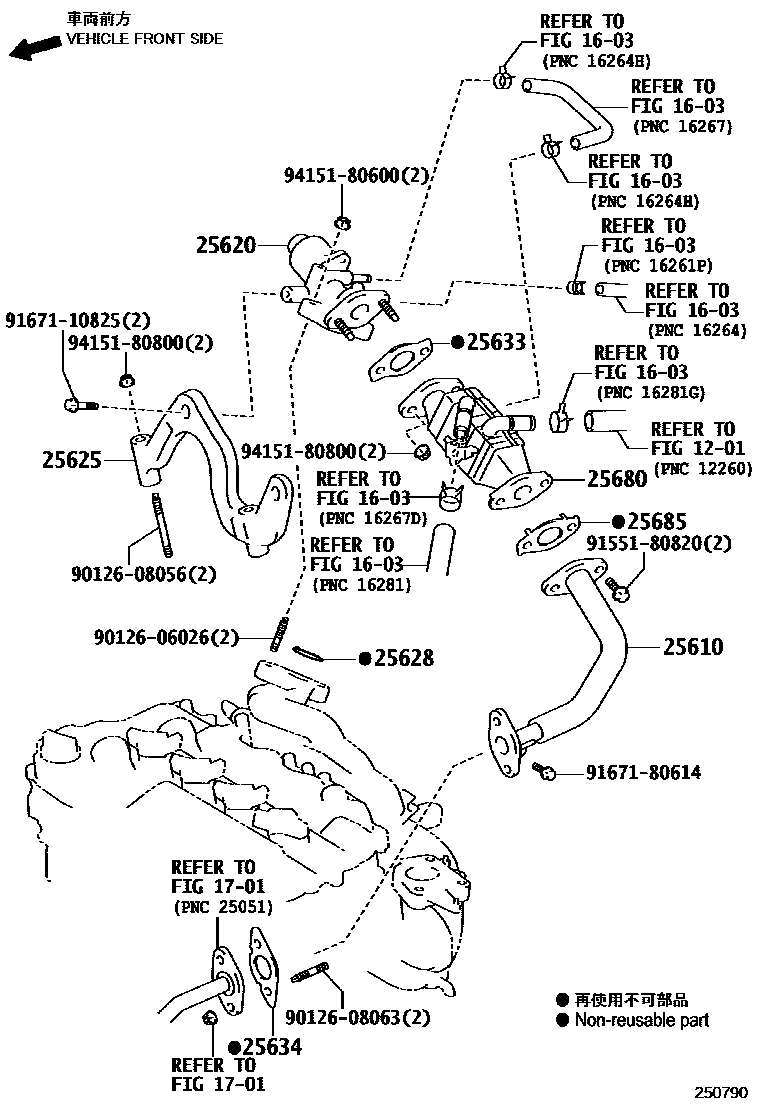

EXHAUST GAS RECIRCULATION SYSTEM

1201

1603

1701

25610PIPE ASSY, EGR

main25610-47010i2NRFKE..NSP141201507

25620VALVE ASSY, EGR

main25620-47030i2NRFKE..NSP141201507-201906

sub25620-47060

main25620-47060i2NRFKE..NSP141201907

25625BRACKET, EGR VALVE

main25625-47010i2NRFKE..NSP141201507

25628GASKET, EGR INLET

main25628-25010i2NRFKE..NSP141201905

main25628-36010i2NRFKE..NSP141201507-201904

25633GASKET, EGR VALVE

main25633-47020i2NRFKE..NSP141201507

25634GASKET, EGR PIPE

main25685-37010i2NRFKE..NSP141201507

25680COOLER ASSY, EGR

main25680-47012i2NRFKE..NSP141201507

25685GASKET, EGR COOLER, NO.1

main25685-47010i2NRFKE..NSP141201507

9012606026

main90126-06026

9012608056

main90126-08056

9012608063

main90126-08063

9155180820

main91551-80820

9167110825

main91671-10825

9167180614

main91671-80614

9415180600

main94151-80600

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
