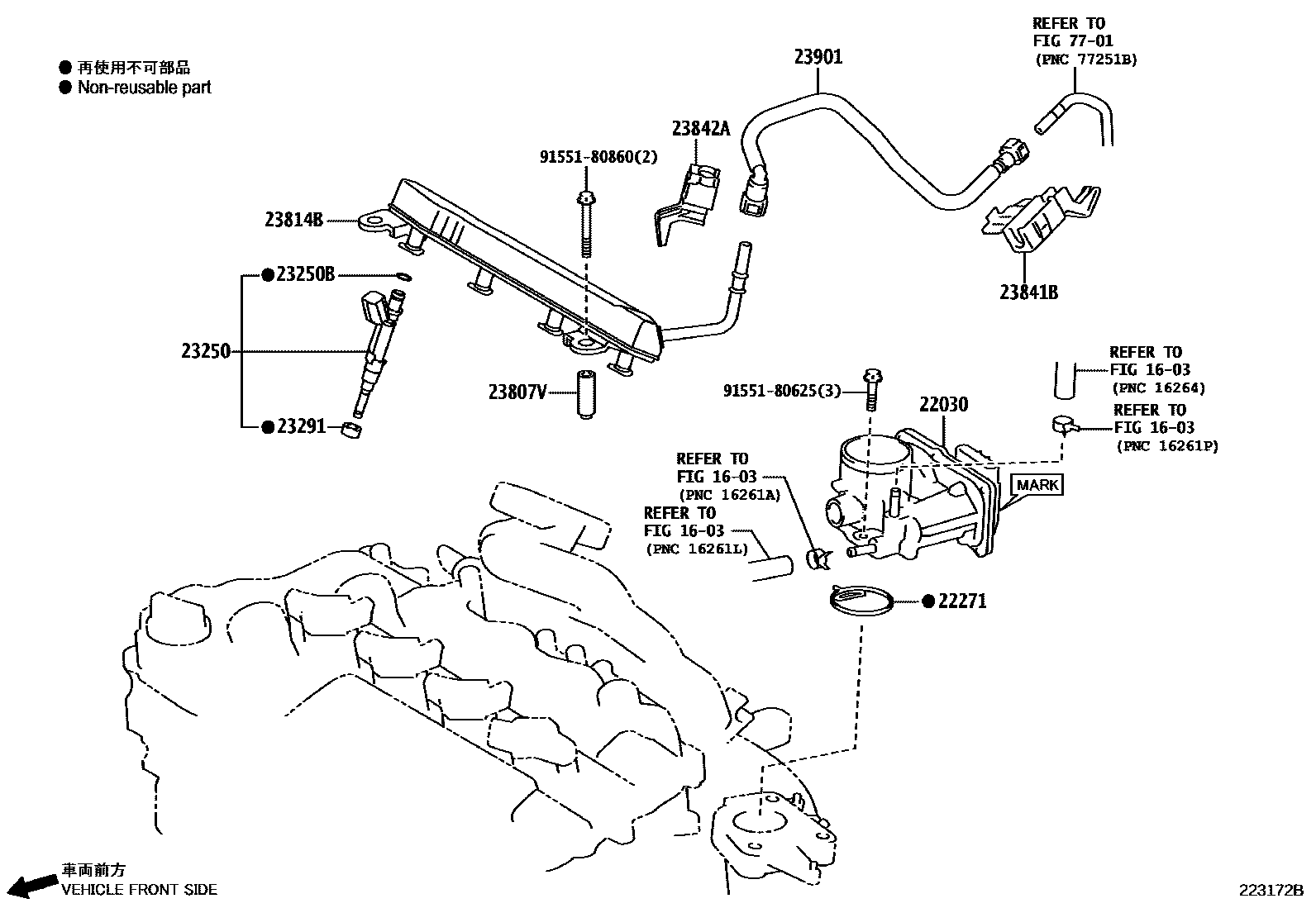

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47060i2NRFKE..NSP141201507

MARK=22030-47060

main22030-47090i2NRFKE..NSP141201507

MARK=22030-47090

22271GASKET, THROTTLE BODY

main22271-47050i2NRFKE..NSP141201507

23250INJECTOR ASSY, FUEL

main23209-49245i2NRFKE..NSP141201507

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2NRFKE..NSP141201507

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2NRFKE..NSP141201507

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47030i2NRFKE..NSP141201507

23814BPIPE, FUEL DELIVERY

main23814-47050i2NRFKE..NSP141201507-201805

sub23814-47051

main23814-47051i2NRFKE..NSP141201806

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37090i2NRFKE..NSP141201507

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-36010i2NRFKE..NSP141201507

23901TUBE SUB-ASSY, FUEL

main23901-47080i2NRFKE..NSP141201507

7701

9155180625

main91551-80625

9155180860

main91551-80860

14 parts on this diagram · 1 diagram in section
