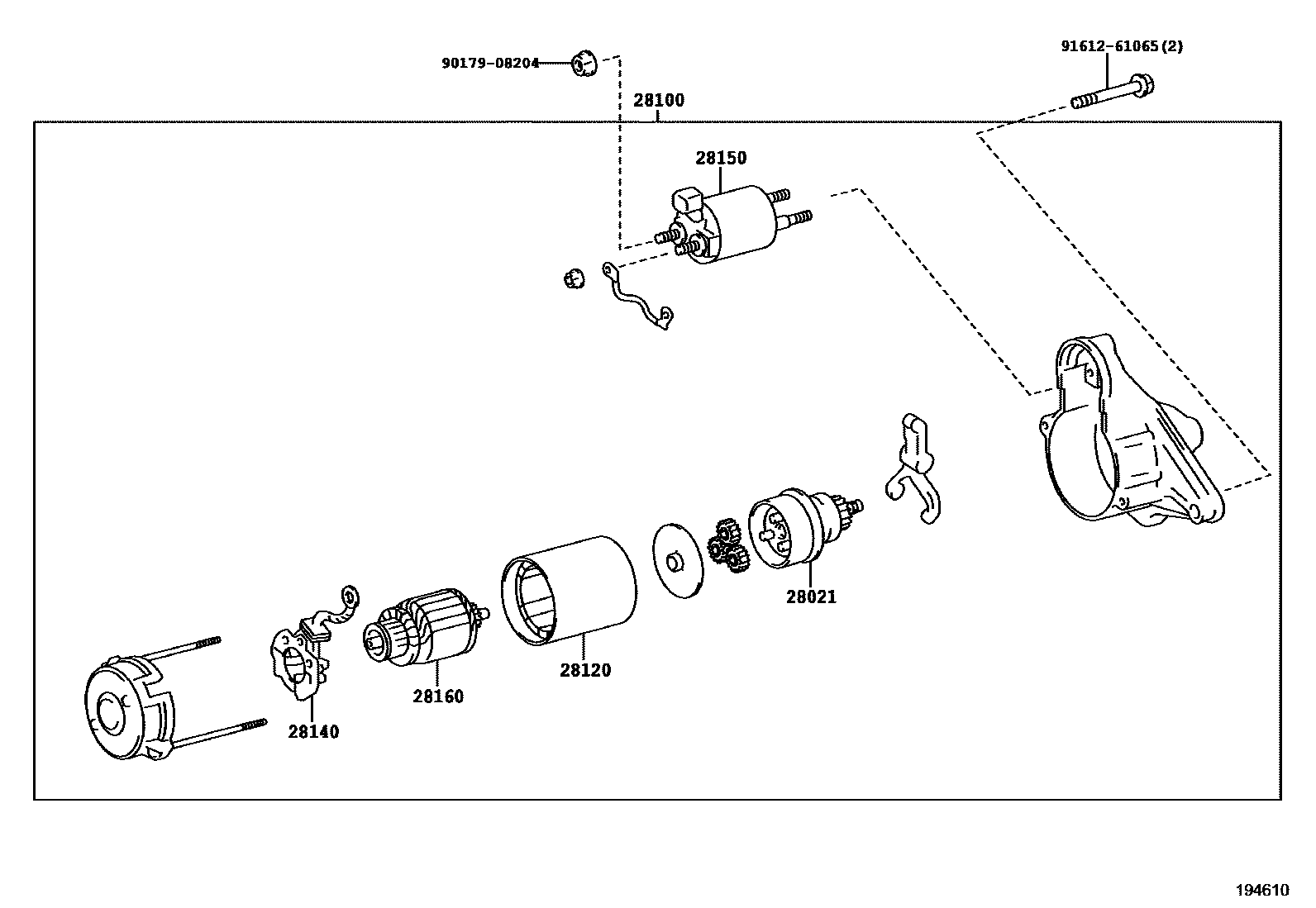

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21100i2NRFKE..NSP141201507

28100STARTER ASSY

main28100-47250i2NRFKE..NSP141201507

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-47210i2NRFKE..NSP141201507

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i2NRFKE..NSP141201507

28150SWITCH ASSY, MAGNET STARTER

main28150-47250i2NRFKE..NSP141201507

28160ARMATURE ASSY, STARTER

main28160-36110i2NRFKE..NSP141201910

main28160-38070i2NRFKE..NSP141201507-201801

main28160-38080i2NRFKE..NSP141201801-201910

sub28160-36110

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 1 diagram in section
