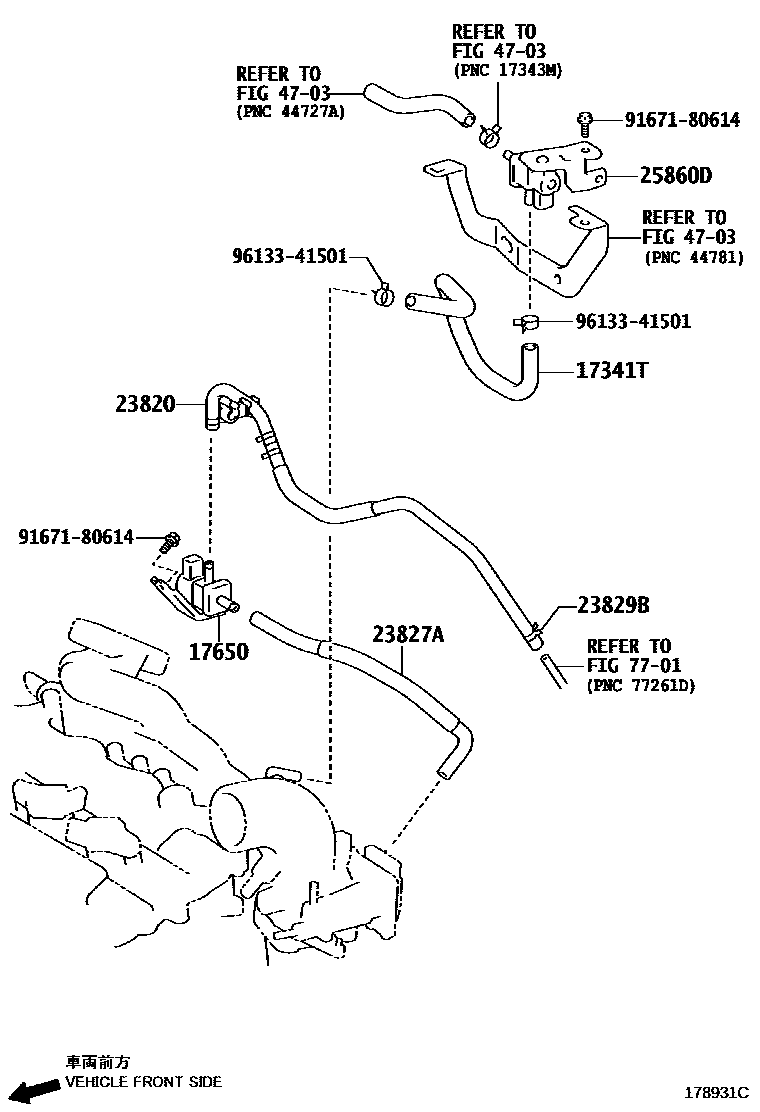

VACUUM PIPING

17341THOSE, AIR, NO.1

main44726-52010i2NRFKE..NSP141201507-201702

main44726-52011i2NRFKE..NSP141201703

17650VALVE ASSY, VACUUM SWITCHING

main25860-47030i2NRFKE..NSP141201507

23820HOSE ASSY, FUEL VAPOR FEED

main23820-47040i2NRFKE..NSP141201507

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-47090i2NRFKE..NSP141201507

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i2NRFKE..NSP141201507

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-47040i2NRFKE..NSP141201507

4703

7701

9167180614

main91671-80614

9613341501

main96133-41501

10 parts on this diagram · 1 diagram in section
