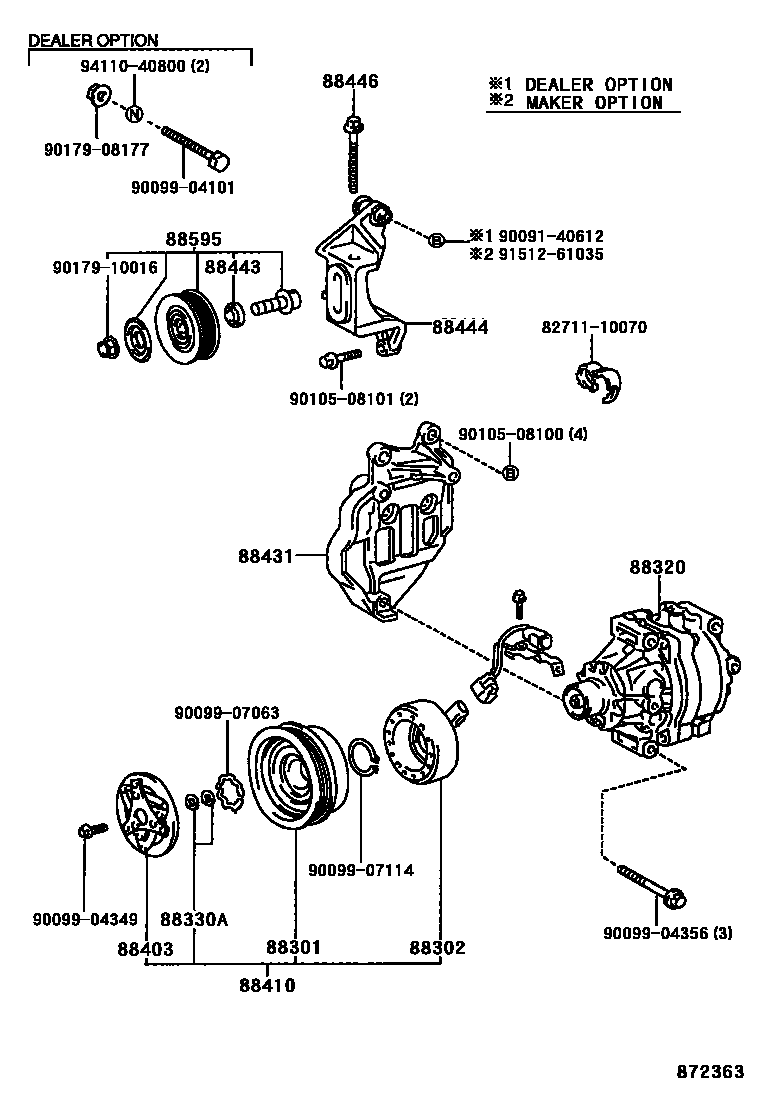

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16160i199601

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070i199601

88320COMPRESSOR ASSY, COOLER

main88320-10470i199601-199710

W(POWER STEERING & DEALER KIT BOOST VENTILATOR)

sub88320-10471

main88320-10470i199601-199710

W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

sub88320-10471

main88320-10470i199601-199710

W(POWER STEERING & MANUAL AIR CONDITIONER)

sub88320-10471

main88320-10471i199710

DEALER OPTION,W(POWER STEERING)

main88320-10480i199601-199710

DEALER KIT BOOST VENTILATOR;MANUAL AIR CONDITIONER OR COOLER BOOST VENTILATOR OR DEALER KIT MANUAL AIR CONDITIONER

sub88320-10481

main88320-10480i199601-199710

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

sub88320-10481

main88320-10481i199710

W(BOOST VENTILATOR)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199601

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020i199601

88410CLUTCH ASSY, MAGNET

main88410-16280i199601

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-10070i199712

DEALER OPTION,W(POWER STEERING)

main88431-16120i199601

88443COLLAR, IDLE PULLEY

main88443-36010i199601-199708

88444BRACKET, IDLE PULLEY

main88444-10031i199601

88446BOLT, IDLE PULLEY

main88446-12030i199601

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16050i199601

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

9009140612

main90091-40612

9009904101

main90099-04101

9009904349

main90099-04349

9009904356

main90099-04356

9009907063

main90099-07063

9009907114

main90099-07114

9010508100

main90105-08100

9010508101

main90105-08101

9017908177

main90179-08177

9017910016

main90179-10016

9151261035

main91512-61035

9411040800

main94110-40800

24 parts on this diagram · 2 diagrams in section
