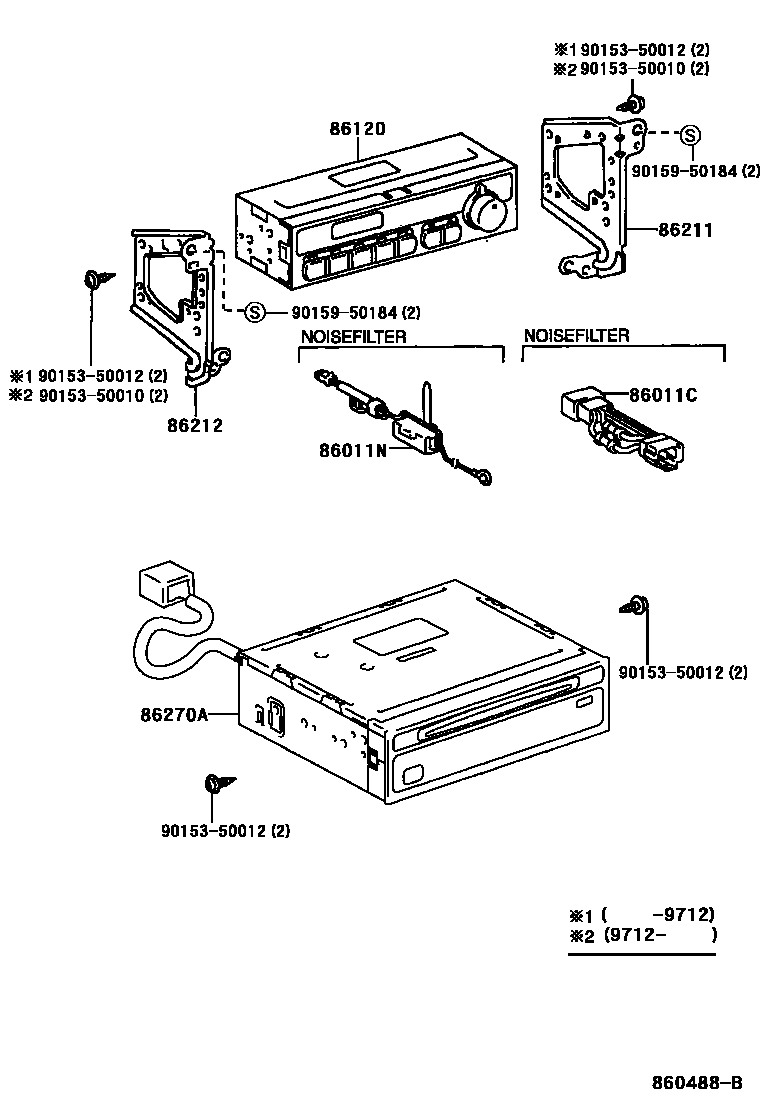

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011CFILTER, NOISE

main90980-05270iEP91199601

main90980-05299iEP90..RHD199601

main90980-05300iEP90..LHD199601

86011NFILTER, NOISE

main90980-05169iEP90199601

86120RECEIVER ASSY, RADIO

main86120-02150iEP90199712

MATSUSHITA, ID=51801,TYPE G:REFER TO ILLUSTRATION

main86120-10460iEP9#199712

MATSUSHITA, ID=52202,TYPE H:REFER TO ILLUSTRATION

main86120-10470iEP90199712

MATSUSHITA, ID=57207,TYPE I:REFER TO ILLUSTRATION

main86120-16650iEP90199712

MATSUSHITA, ID=52201,TYPE J:REFER TO ILLUSTRATION

main86120-16660iEP9#199712

FUJITSU TEN,ID=17409,TYPE K:REFER TO ILLUSTRATION

main86120-16670iEP90199712

FUJITSU TEN,ID=17410,TYPE L:REFER TO ILLUSTRATION

main86120-1A020iEP9#199601-199712

FUJITSU TEN,ID=12201,TYPE A:REFER TO ILLUSTRATION

main86120-1A040iEP90199601-199712

FUJITSU TEN,ID=12101,TYPE C:REFER TO ILLUSTRATION

main86120-2A070iEP90199601-199712

MATSUSHITA,TYPE D:REFER TO ILLUSTRATION

main86120-2A190iEP90199601-199712

MATSUSHITA,ID=57202,TYPE B:REFER TO ILLUSTRATION

sub86120-35100

main86120-2B380iEP9#199601-199712

FUJITSU TEN,ID=17202,TYPE F:REFER TO ILLUSTRATION

main86120-35080iEP90199712

MATSUSHITA,ID=52100,TYPE M:REFER TO ILLUSTRATION

sub86120-60N00

main86120-35090iEP90199601-199712

MATSUSHITA,ID=57400,TYPE E:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-16260iEP9#199601

86212BRACKET, RADIO, NO.2

main86212-16260iEP9#199601

86270ADISC PLAYER ASSY

main86270-60050iEP90199712

9015350010

main90153-50010

9015350012

main90153-50012

9015950184

main90159-50184

9 parts on this diagram · 3 diagrams in section
