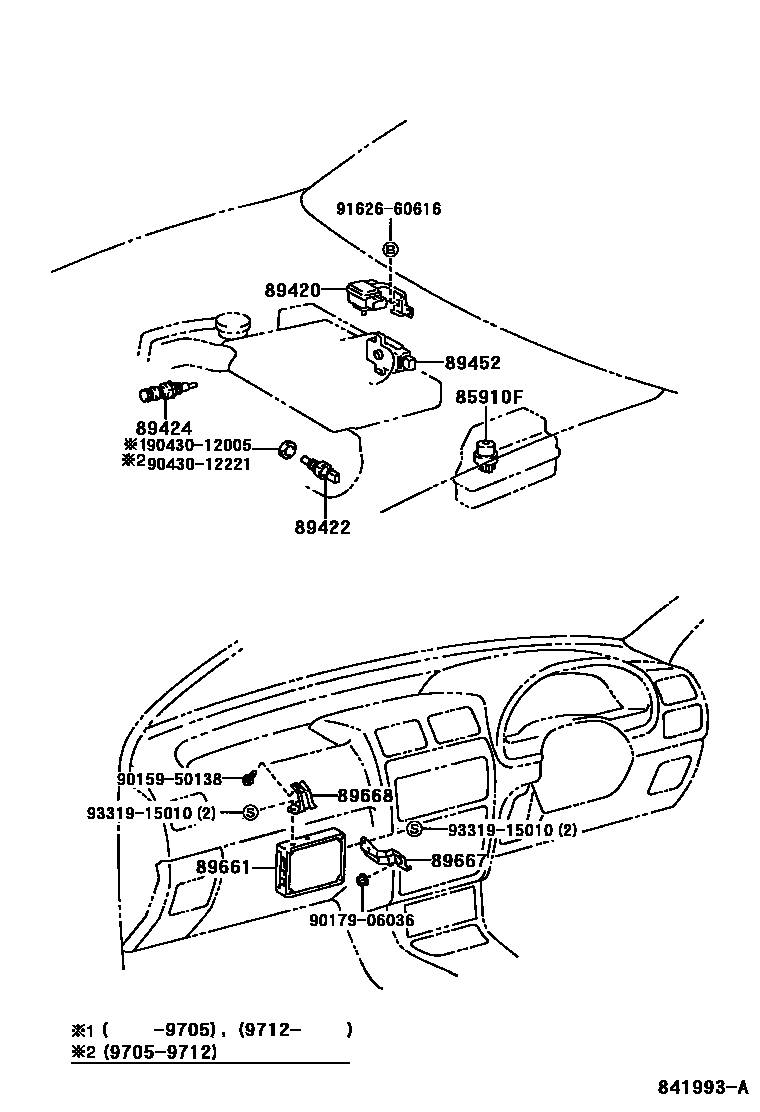

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iEP91199601

89420SENSOR ASSY, VACUUM

main89420-16050iEP91199601-199712

main89420-16080iEP91199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEP91199712

DENSO

main89422-20010iEP91199601-199712

main89422-22030iEP91199712

SAAMOSTA

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEP91199601

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEP91199702-199807

sub89452-20130

main89452-20130iEP91199601-199702

89661COMPUTER, ENGINE CONTROL

main89661-10250iEP91..5F199601

main89661-10260iEP91..3FC199601

main89661-10270iEP91199601-199712

W(IMMOBILIZER)

main89661-10280iEP91199712

W(IMMOBILIZER)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEP91199601

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10060iEP91199601-199712

main89668-16110iEP91199712

9015950138

main90159-50138

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

9162660616

main91626-60616

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
