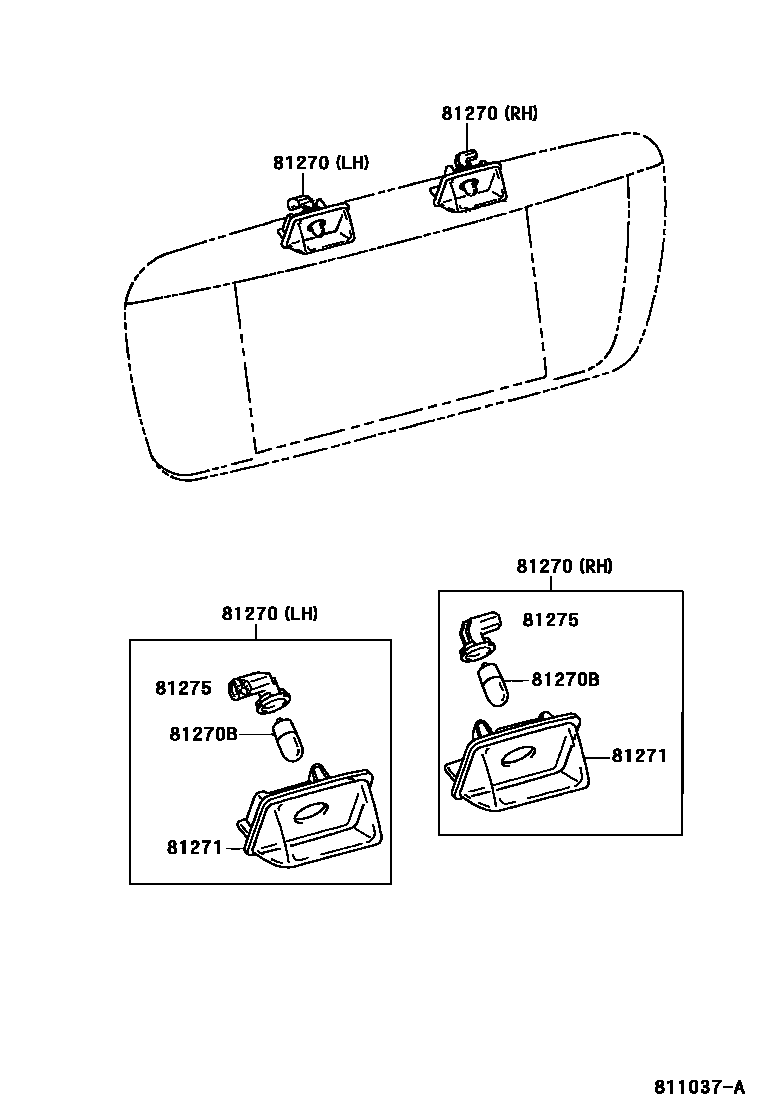

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-12501iEP9#199601-199907

RH

sub81270-12502

main81690-12131iEP9#199601-199907

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iEP9#199601-199907

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12501iEP9#199601-199907

RH

sub81271-12502

main81691-12131iEP9#199601-199907

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12500iEP9#199712-199812

sub81275-12501

main81275-12501iEP9#199812-199907

4 parts on this diagram · 1 diagram in section
