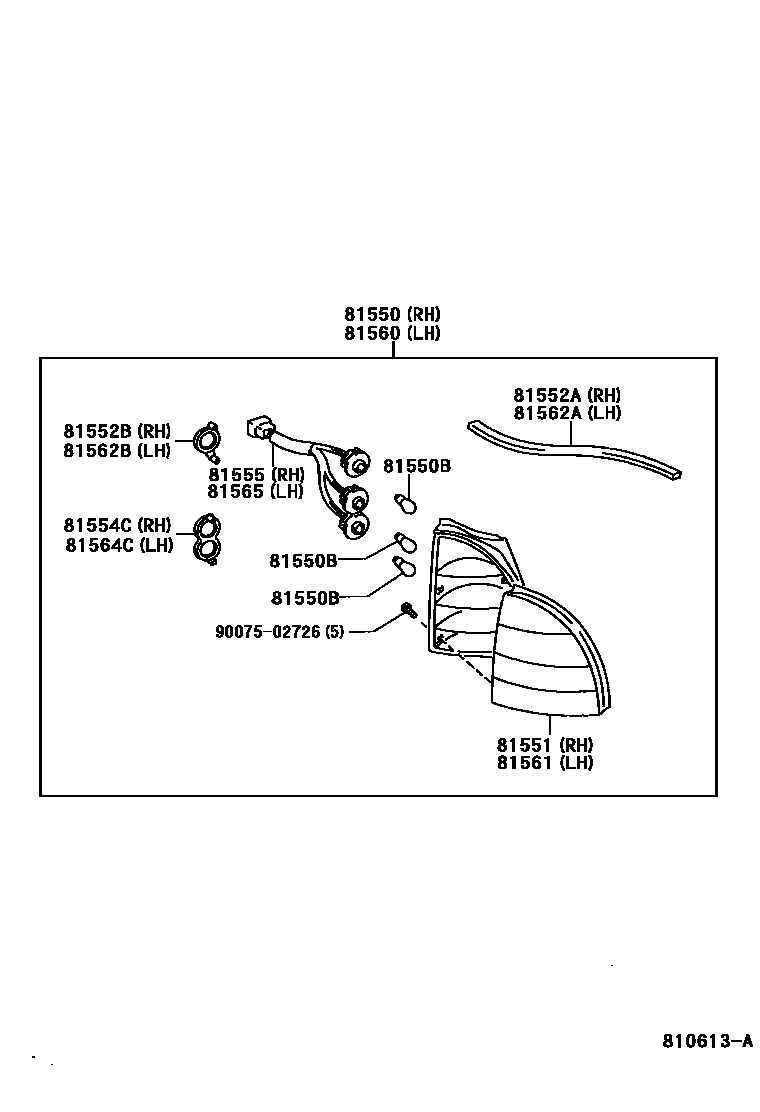

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W
12V 21/5W
81551LENS, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81552BPACKING, REAR COMBINATION LAMP BODY, RH
81554CPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81562BPACKING, REAR COMBINATION LAMP BODY, LH
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9007502726
main90075-02726
14 parts on this diagram · 1 diagram in section
