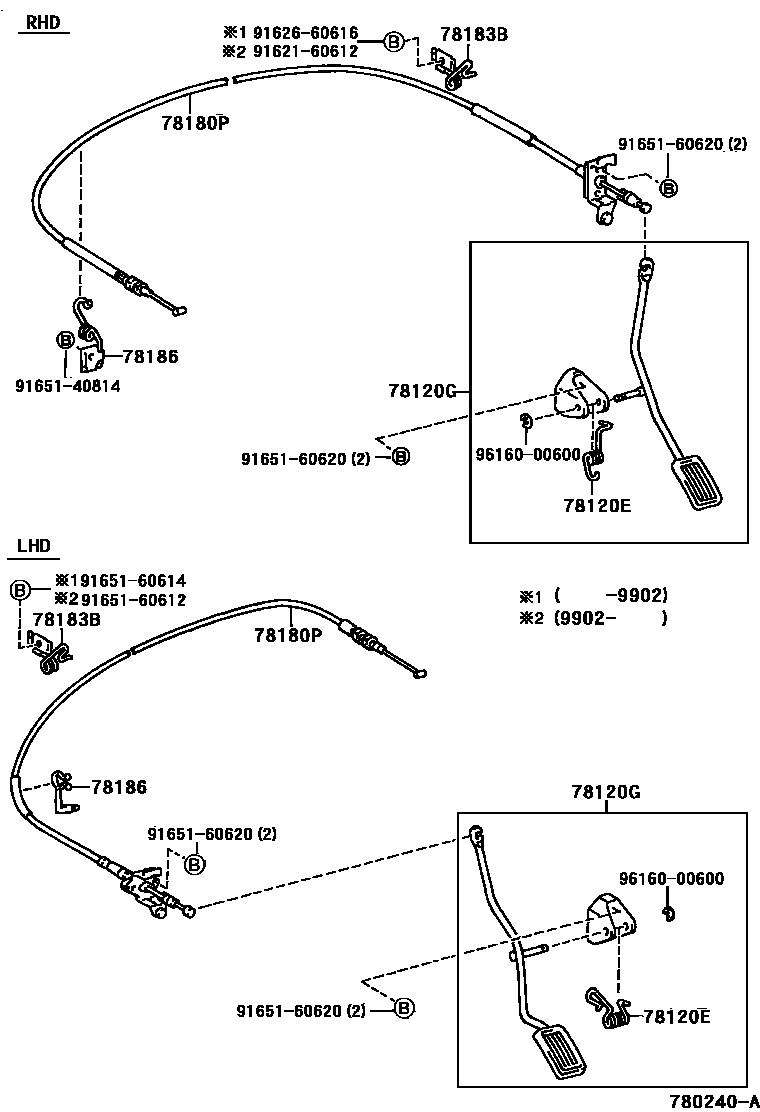

ACCELERATOR LINK

0001 1 0002 1

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-17003iEP90..LHD199601

main90508-20114iEP9#..RHD199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-10080iEP9#..RHD199601

main78120-10090iEP90..LHD199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10460iEP90..RHD199601

main78180-10470iEP90..LHD199601

main78180-16420iEP91199601

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10061iEP9#..RHD199601

main78183-10080iEP90..RHD199601

W(CYCLON TYPE AIR CLEANER)

main78183-16050iEP90..LHD199601

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10080iEP90..LHD199601

main78186-16160iEP90..RHD199601

9162160612

main91621-60612

9162660616

main91626-60616

9165140814

main91651-40814

9165160612

main91651-60612

9165160614

main91651-60614

9165160620

main91651-60620

9616000600

main96160-00600

12 parts on this diagram · 2 diagrams in section
