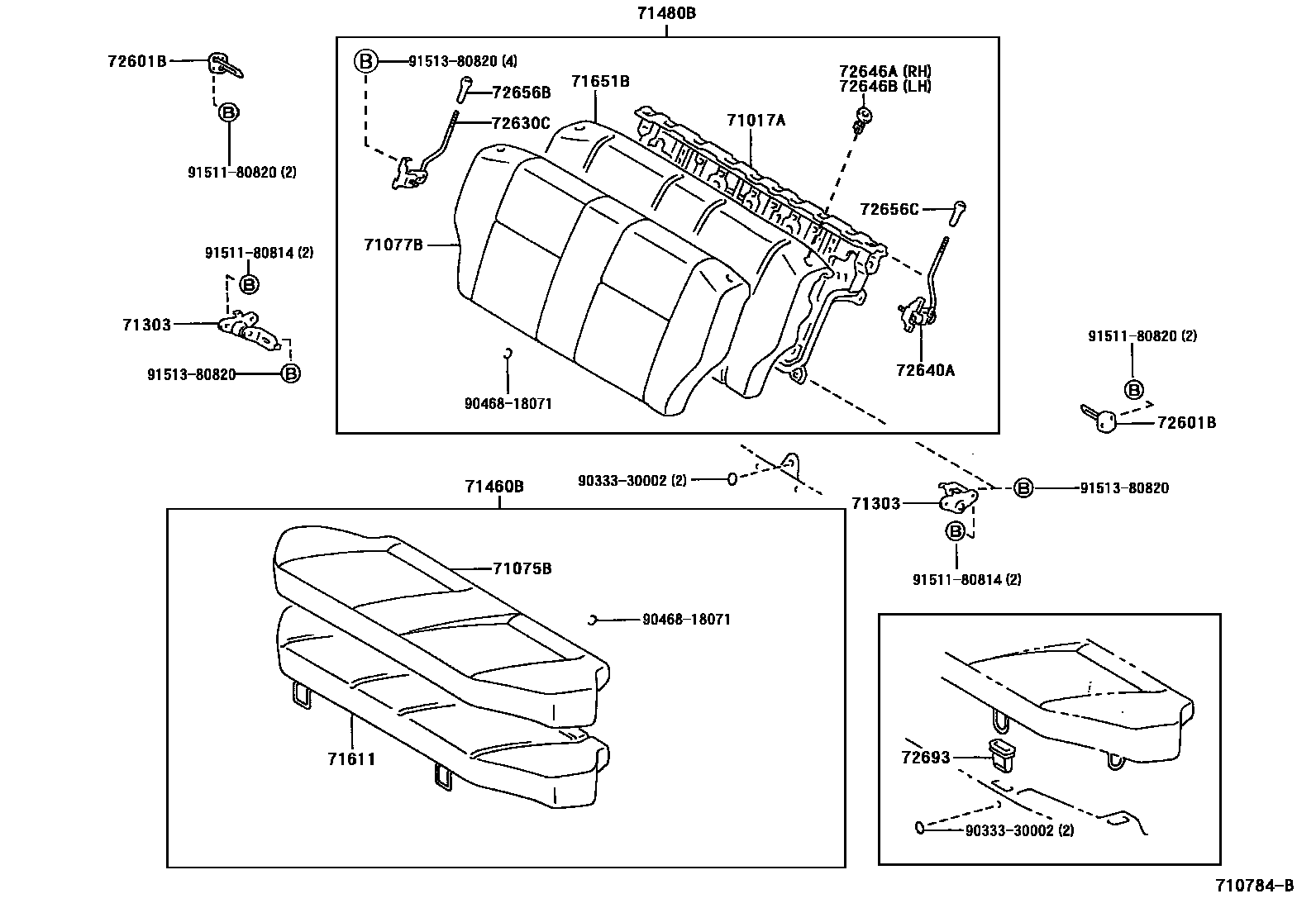

REAR SEAT & SEAT TRACK

0001 1BENCH TYPE 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10090iEP91199601

main71017-10100iEP90..3FC,5F199601

W(FULL FABRIC SEAT)-*104

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-10070iEP90199601-199712

main71017-10110iEP90199712

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-10780-B0iEP90..3D..5F199601-199712

W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71065-10840-B0iEP90..3D..5F199601-199712

BLUISH GRAY,TRIM1#

main71065-10850-B0iEP90..5D..(3FC,5F)199601-199712

BLUISH GRAY,TRIM1#

main71065-10860-B0iEP91..3D199601-199712

BLUISH GRAY,TRIM1#

main71065-10870-B0iEP91..5D199601-199712

BLUISH GRAY,TRIM1#

main71065-10880-B0iEP90..5D..(3FC,5F)199601-199712

W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71065-10890-B0iEP91..3D199601-199712

W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71075-1C010-B0iEP91..5D199601-199712

W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71075-1C020-B0iEP90..3D..4F199601-199712

BLUISH GRAY,TRIM1#

sub71075-1C020

main71075-1C020-B2iEP90..3D..4F199712-199907

BLUISH GRAY,TRIM1#

sub71075-1C020

main71075-1C030-B0iEP90..5D..4F199601-199712

BLUISH GRAY,TRIM1#

sub71075-1C030

main71075-1C030-B1iEP90..5D..4F199712-199907

BLUISH GRAY,TRIM1#

sub71075-1C030

main71075-1C050-B1iEP90..5D..(3FC,5F)199712-199907

BLUISH GRAY,TRIM1#

sub71075-1C050

main71075-1C200-B0iEP90..3D..5F199712-199907

FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71075-1C210-B0iEP90..5D..(3FC,5F)199712-199907

FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71075-1C220-B0iEP91..3D199712-199907

FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71075-1C230-B0iEP91..5D199712-199907

FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71075-1C240-B0iEP90..3D..5F199712-199907

FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71075-1C250-B0iEP90..5D..(3FC,5F)199712-199907

FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71075-1C260-B0iEP91..3D199712-199907

FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71075-1C270-B0iEP91..5D199712-199907

FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71075-1C310-B0iEP90..3D..5F199712-199907

BLUISH GRAY,TRIM1#

main71075-1C350-B0iEP91..3D199712-199907

BLUISH GRAY,TRIM1#

main71075-1C360-B0iEP91..5D199712-199907

BLUISH GRAY,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1C840-B0iEP90..3FC,5F199601-199704

BLUISH GRAY,TRIM1#

main71077-1C841-B0iEP90..3FC,5F199704-199712

BLUISH GRAY,TRIM1#

main71077-1C850-B0iEP90..4F199601-199704

BLUISH GRAY,TRIM1#

main71077-1C851-B0iEP90..4F199704-199712

BLUISH GRAY,TRIM1#

main71077-1M130-B0iEP90..3FC,5F199712-199907

BLUISH GRAY,TRIM1#

main71077-1M160-B0iEP90..4F199712-199907

BLUISH GRAY,TRIM1#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-10040iEP9#199601-199712

main71303-10040iEP9#..3FC,5F199712

W(FOLDING REAR SEAT)

main71303-10050iEP90199712

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-1C010-B0iEP90..5D..(3FC,5F)199601-199712

***,BLUISH GRAY,TRIM1#

main71460-1C020-B0iEP90..5D..(3FC,5F)199601-199712

***,W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71460-1C040-B1iEP90..5D..(3FC,5F)199712-199907

***,BLUISH GRAY,TRIM1#

sub71460-1C040

main71460-1C210-B0iEP90..3D..5F199712-199907

***,FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71460-1C220-B0iEP90..5D..(3FC,5F)199712-199907

***,FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71460-1C230-B0iEP91..3D199712-199907

***,FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71460-1C240-B0iEP91..5D199712-199907

***,FABRIC TYPE A-*104,BLUISH GRAY,TRIM1#

main71460-1C250-B0iEP90..3D..5F199712-199907

***,FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71460-1C260-B0iEP90..5D..(3FC,5F)199712-199907

***,FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71460-1C270-B0iEP91..3D199712-199907

***,FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71460-1C280-B0iEP91..5D199712-199907

***,FABRIC TYPE B-*104,BLUISH GRAY,TRIM1#

main71460-1C320-B0iEP90..3D..5F199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C360-B0iEP91..3D199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C370-B0iEP91..5D199712-199907

***,BLUISH GRAY,TRIM1#

main71560-10770-B0iEP90..3D..5F199601-199712

***,W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71560-10830-B0iEP91..3D199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10840-B0iEP91..5D199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10850-B0iEP91..3D199601-199712

***,W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71560-10860-B0iEP91..5D199601-199712

***,W(FULL FABRIC SEAT)-*104,BLUISH GRAY,TRIM1#

main71560-10870-B0iEP90..3D..4F199601-199712

***,BLUISH GRAY,TRIM1#

sub71560-10870

main71560-10870-B2iEP90..3D..4F199712-199907

***,BLUISH GRAY,TRIM1#

sub71560-10870

main71560-10880-B0iEP90..5D..4F199601-199712

***,BLUISH GRAY,TRIM1#

sub71560-10880

main71560-10880-B1iEP90..5D..4F199712-199907

***,BLUISH GRAY,TRIM1#

sub71560-10880

main71560-10890-B0iEP90..3D..5F199601-199712

***,BLUISH GRAY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1C820-B0iEP90..3FC,5F199601-199712

***,BLUISH GRAY,TRIM1#

main71480-1C830-B0iEP90..4F199601-199712

***,BLUISH GRAY,TRIM1#

main71480-1M180-B0iEP90..4F199712-199907

***,BLUISH GRAY,TRIM1#

main71480-1M190-B0iEP90..3FC,5F199712-199907

***,BLUISH GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-10050iEP90..3D199601

main71503-10060iEP90..5D199601

main71503-10070iEP91..3D199601

main71503-10080iEP91..5D199601

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-10270iEP90199601-199712

main71651-10300iEP90199712

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-10030iEP90199601-199712

sub72601-10050

main72601-10050iEP91199601-199712

main72601-10050iEP90..3FC,5F199601

W(FULL FABRIC SEAT)-*104

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-10090iEP91199601-199703

W(FULL FABRIC SEAT)-*104

main72630-10091iEP90..3FC,5F199703

W(FULL FABRIC SEAT)-*104

main72630-10091iEP91199703-199712

main72630-10100iEP90199601-199703

main72630-10101iEP90199703-199712

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-10080iEP91199601-199703

W(FULL FABRIC SEAT)-*104

main72640-10081iEP91;EP90..4F199703-199712

main72640-10081iEP90..3FC,5F199703

W(FULL FABRIC SEAT)-*104

main72640-10090iEP90199601-199703

main72640-10091iEP90199703-199712

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-10020-B1iEP9#199704-199907

LT.BLUISH GRAY,TRIM1#

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-10020-B1iEP9#199704-199907

LT.BLUISH GRAY,TRIM1#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-B2iEP9#199601-199907

LT.BLUISH GRAY,TRIM1#

sub72656-20010

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-B2iEP9#199601-199907

LT.BLUISH GRAY,TRIM1#

sub72656-20010

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10040iEP90199601

9033330002

main90333-30002

9046818071

main90468-18071

9151180814

main91511-80814

9151180820

main91511-80820

9151380820

main91513-80820

22 parts on this diagram · 2 diagrams in section
