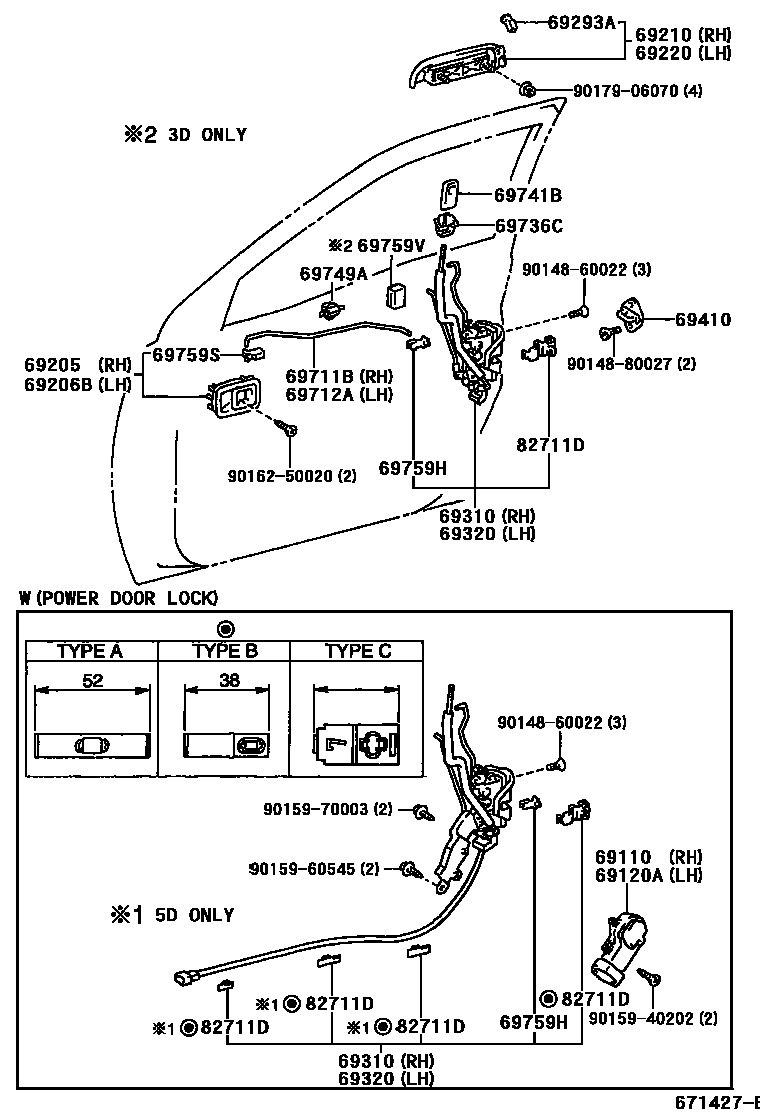

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
CHROME PLATED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
CHROME PLATED
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
YELLOW
BROWN
69759VSILENCER, FRONT DOOR LOCK LINK
82711DCLAMP, WIRING HARNESS
TYPE A:REFER TO ILLUSTRATION, W(POWER DOOR LOCK)
TYPE B:REFER TO ILLUSTRATION, W(POWER DOOR LOCK)
TYPE C:REFER TO ILLUSTRATION;W(ELECTRO MAGNETIC LOCK)
TYPE C:REFER TO ILLUSTRATION, W(POWER DOOR LOCK)
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015960545
main90159-60545
9015970003
main90159-70003
9016250020
main90162-50020
9017906070
main90179-06070
26 parts on this diagram · 1 diagram in section
