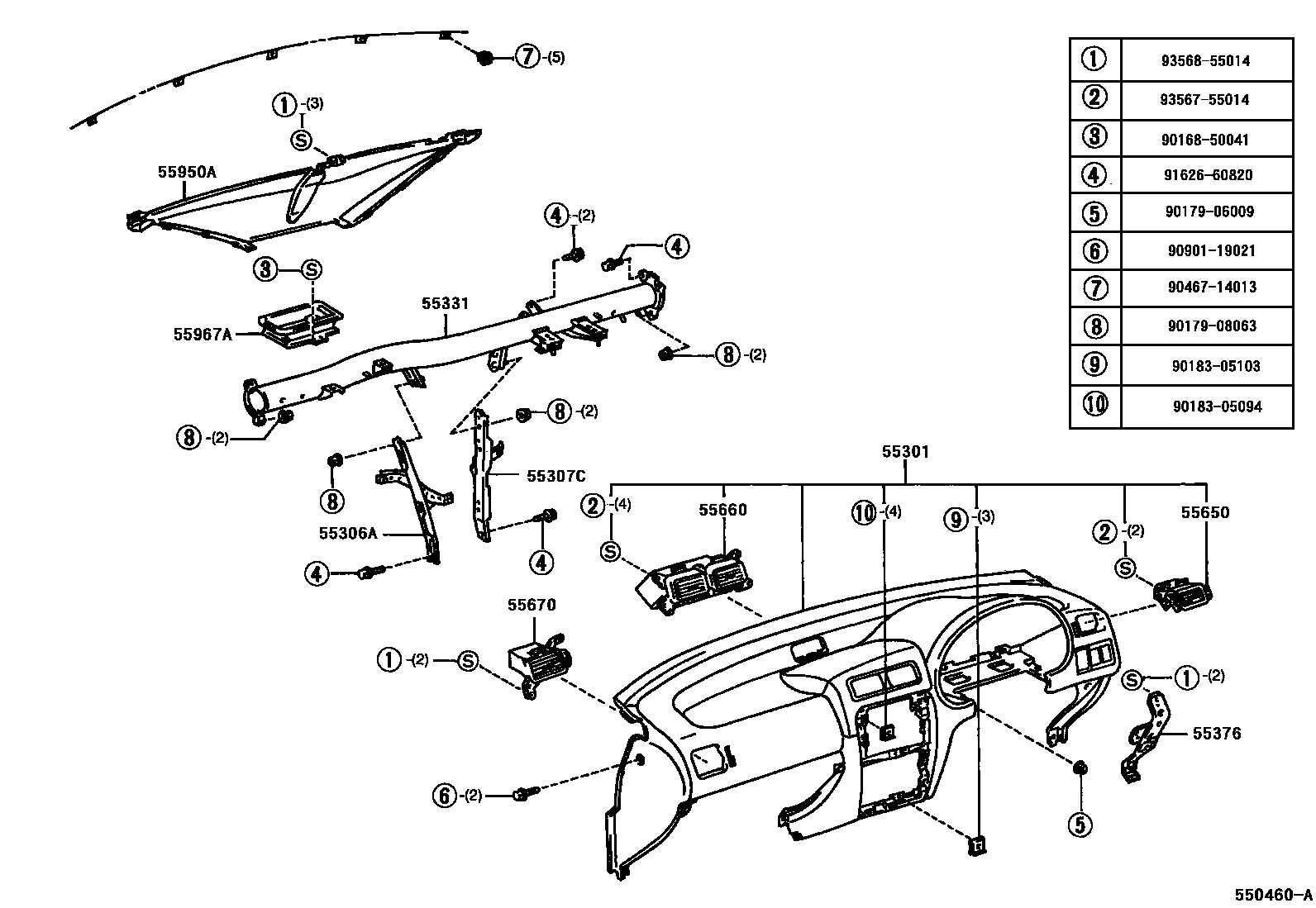

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-10380-B0iEP9#..RHD199601

BLUISH GRAY,TRIM1#

main55301-10390-B0iEP91199601-199712

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55301-10400-B0iEP90..LHD199601-199712

BLUISH GRAY,TRIM1#

sub55301-10430¥47,000

main55301-10410-B0iEP91199712

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55301-10430-B0iEP90..LHD199712

BLUISH GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-10040iEP9#..RHD¥3,370199601

main55306-16100iEP90..LHD¥2,680199601-199712

main55306-16120iEP90..LHD¥2,860199712

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16100iEP90..LHD¥3,240199601

main55307-16110iEP9#..RHD¥2,790199601-199712

main55307-16120iEP9#..RHD¥2,790199712

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-10130iEP9#..RHD¥13,300199601-199712

main55330-10140iEP91¥13,400199601-199712

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-10150iEP90..LHD¥13,200199601-199712

main55330-10160iEP9#..RHD¥16,300199712

main55330-10170iEP91¥16,500199712

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-10180iEP90..LHD¥16,100199712

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-10040iEP9#..RHD¥810199601

main55376-16050iEP90..LHD¥820199601

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10120-B0iEP9#..RHD199601

BLUISH GRAY,TRIM1#

main55650-10130-B1iEP90..LHD199601-199712

GRAY,TRIM1#

sub55650-16080¥5,200

main55650-16100-B2iEP90..LHD199712

BLUISH GRAY,TRIM1#

sub55650-16100¥5,100

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-10050-B0iEP9#..RHD199601

BLUISH GRAY,TRIM1#

main55660-16050-B2iEP90..LHD199601-199712

GRAY,TRIM1#

sub55660-16050¥6,700

main55660-16070-B2iEP90..LHD199712

BLUISH GRAY,TRIM1#

sub55660-16070¥6,700

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-10010-B0iEP9#..RHD199601

BLUISH GRAY,TRIM1#

main55670-10020-B1iEP90..LHD199601-199712

GRAY,TRIM1#

sub55670-16050¥5,200

main55670-16070-B2iEP90..LHD199712

BLUISH GRAY,TRIM1#

sub55670-16070¥5,100

55950ANOZZLE ASSY, DEFROSTER

main55950-16060iEP9#..RHD¥2,780199601

main55950-16070iEP90..LHD¥2,780199601

55967ANOZZLE, DEFROSTER, LOWER

main55967-16040iEP9#¥1,780199601

9016850041

main90168-50041¥110

9017906009

main90179-06009¥120

9017908063

main90179-08063¥160

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046714013

main90467-14013¥160

9090119021

main90901-19021¥130

9162660820

main91626-60820¥130

9356755014

main93567-55014¥110

9356855014

main93568-55014¥70

20 parts on this diagram · 4 diagrams in section
