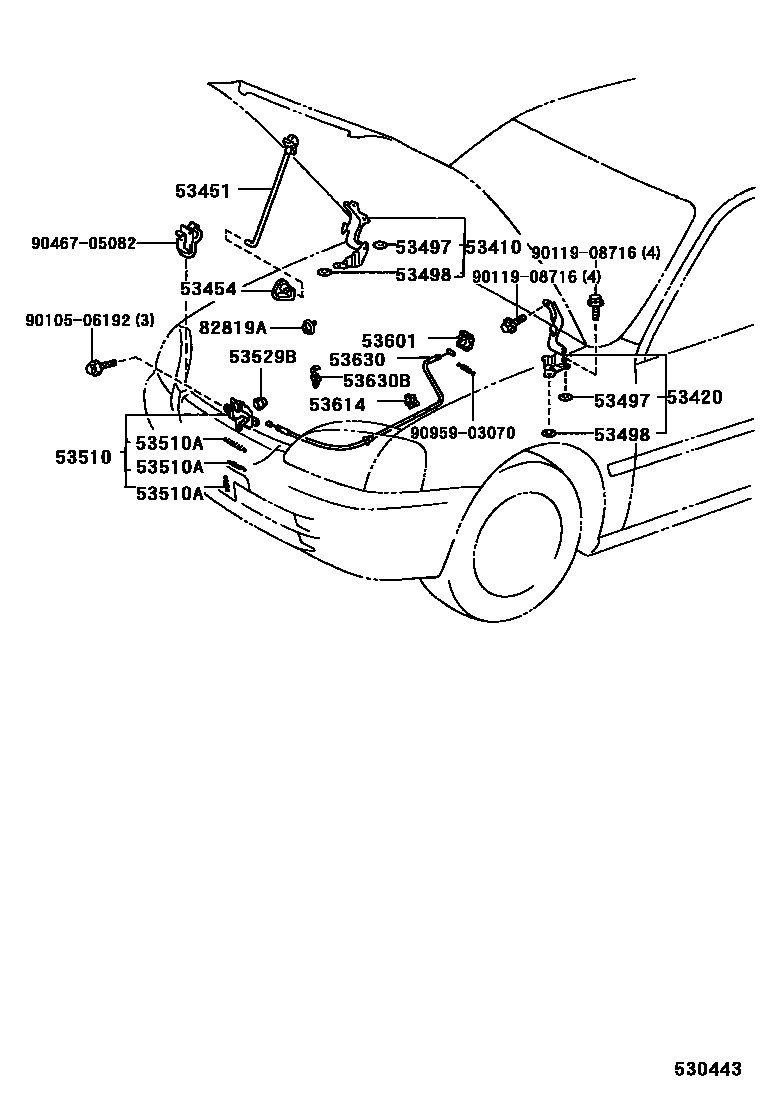

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-10060iEP9#199601-199712

sub53410-16100

main53410-16100iEP9#199712

53420HINGE ASSY, HOOD, LH

main53420-10060iEP9#199601-199712

sub53420-16080

main53420-16080iEP9#199712

53451ROD, HOOD SUPPORT

main53440-10080iEP9#199601

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEP9#199601

53497PAD, HOOD HINGE, NO.1

main53497-10020iEP9#199601

T=1.5

main53497-12050iEP9#199601-199712

T=1.0,T=1.0

sub53497-42010

main53497-12050iEP9#199712

T=1.0

sub53497-42010

53498PAD, HOOD HINGE, NO.2

main53497-10020iEP9#199601

T=1.5

main53497-12050iEP9#199601-199712

T=1.0

sub53497-42010

53510LOCK ASSY, HOOD

main53510-10200iEP9#..RHD199601

main53510-10210iEP90..LHD199601

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iEP9#..RHD199601

WD=0.9,CW=20.75

main90506-12063iEP9#199601

WD=1.2,CW=8.5

main90506-18067iEP9#199601

WD=1.8,CW=13

main90905-06005iEP90..LHD199601

WD=0.9,CW=21.25

53529BPROTECTOR, HOOD LOCK RELEASE LEVER

main53529-10030iEP9#199601

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-C0iEP9#199601-199907

BLACK,TRIM1#

sub53611-12040

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-10020iEP9#..RHD199601

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10250iEP9#..RHD199601

main53630-10260iEP90..LHD199601

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-24070iEP9#199601-199712

82819AGROMMET, WIRE

main82819-10130iEP9#199601-199712

9010506192

main90105-06192

9011908716

main90119-08716

9046705082

main90467-05082

9095903070

main90959-03070

18 parts on this diagram · 1 diagram in section
