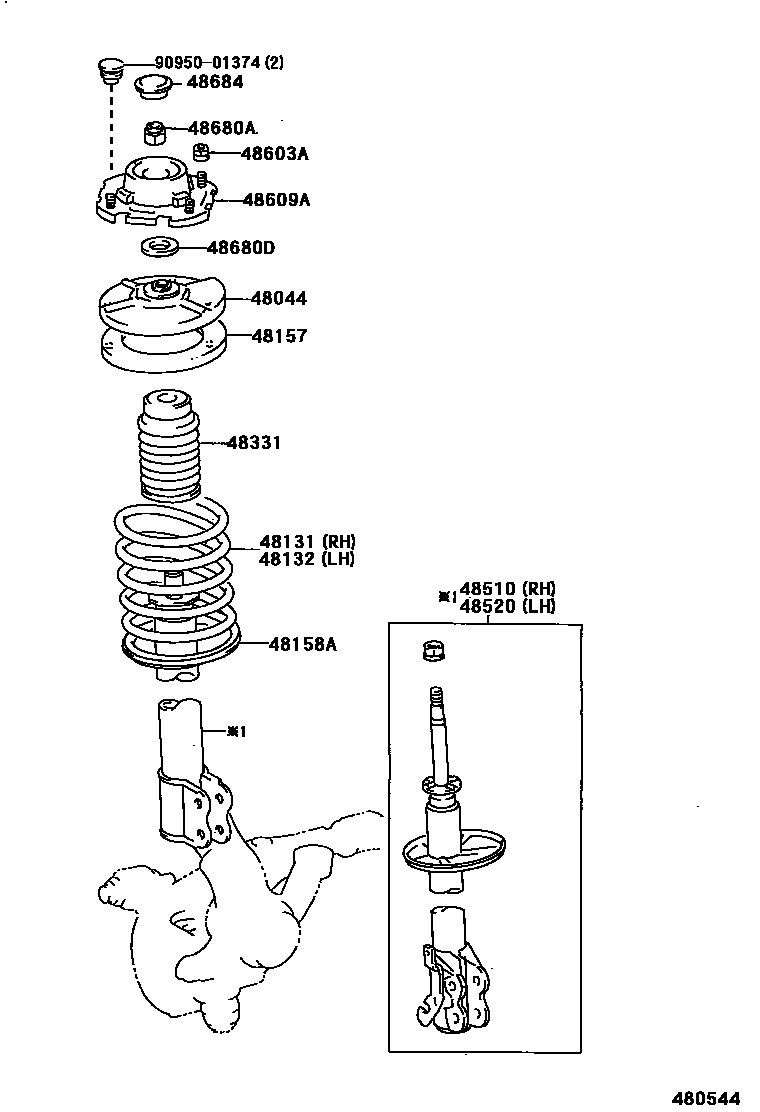

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-16030iEP9#199601-199712

main48044-46010iEP9#199712

48131SPRING, FRONT COIL, RH

main48131-16830iEP90199601-199712

W(FUEL TUBE PROTECTER)

main48131-1C050iEP9#..MTM199712

ROUGH ROAD PACKAGE

main48131-1C070iEP90199712

main48131-1G030iEP90..MTM199604-199712

W(FUEL TUBE PROTECTER)

sub48131-10621

main48131-1G251iEP90199601-199712

48132SPRING, FRONT COIL, LH

main48131-16830iEP90199601-199712

W(FUEL TUBE PROTECTER)

main48131-1C050iEP9#..MTM199712

ROUGH ROAD PACKAGE

main48131-1C070iEP90199712

main48131-1G030iEP91..5F199604-199712

W(FUEL TUBE PROTECTER)

sub48131-10621

main48131-1G251iEP90199601-199712

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16040iEP9#199601-199712

main48157-46010iEP9#199712

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-16030iEP9#199601

48331BUMPER, FRONT SPRING, NO.1

main48331-12140iEP9#199712

main48331-16060iEP9#199601-199712

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19525iEP9#199601-199712

sub48510-19526

main48510-19885iEP9#199712

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-19245iEP9#199601-199712

sub48520-19246

main48520-19565iEP9#199712

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08206iEP9#199601

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-10160iEP90199601

W(FUELTANK TUBE PROTECTER)

main48609-16220iEP9#199601

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-12145iEP9#199601

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEP9#199601

48684COVER, BEARING DUST

main48684-10010iEP9#199601

9095001374

main90950-01374

14 parts on this diagram · 1 diagram in section
